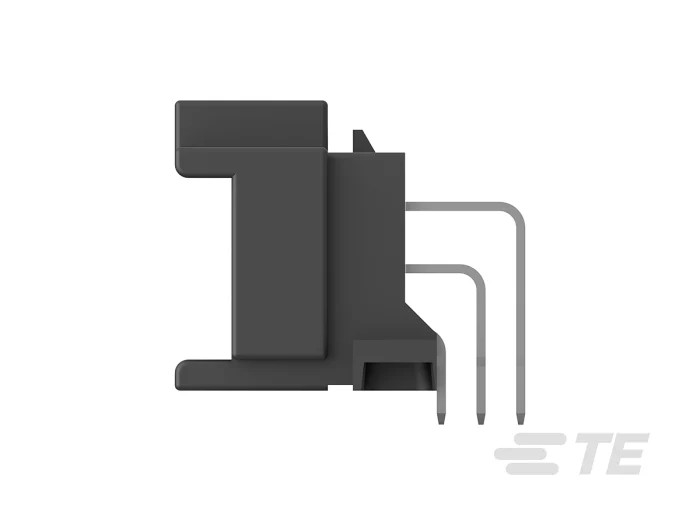

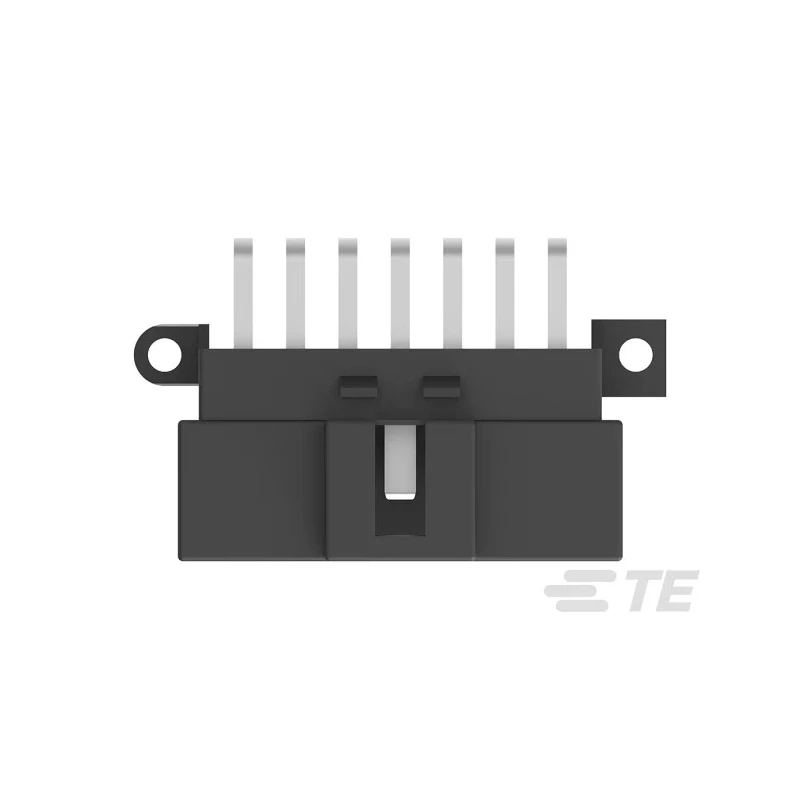

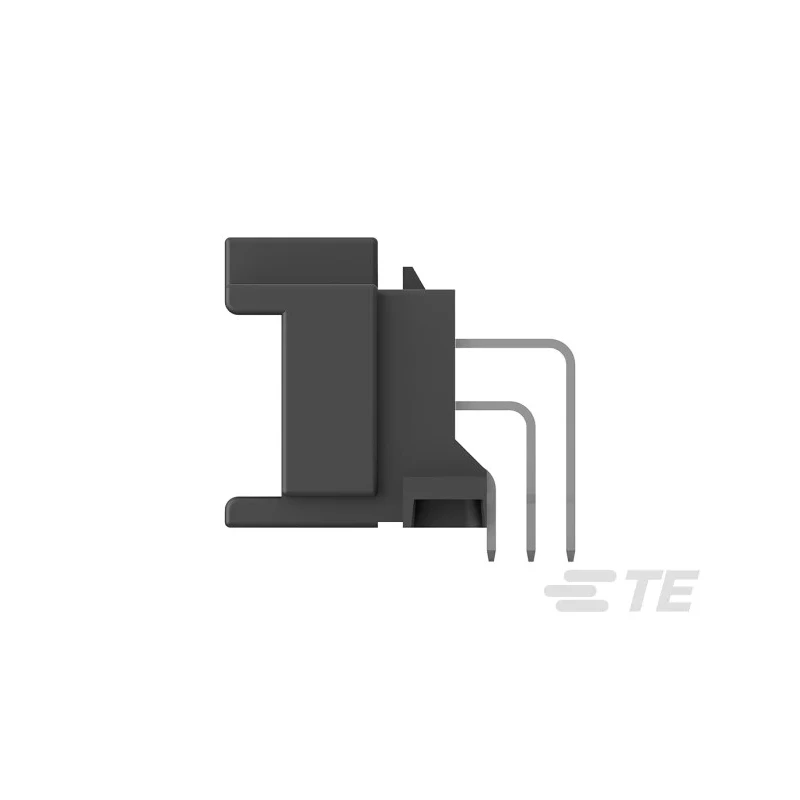

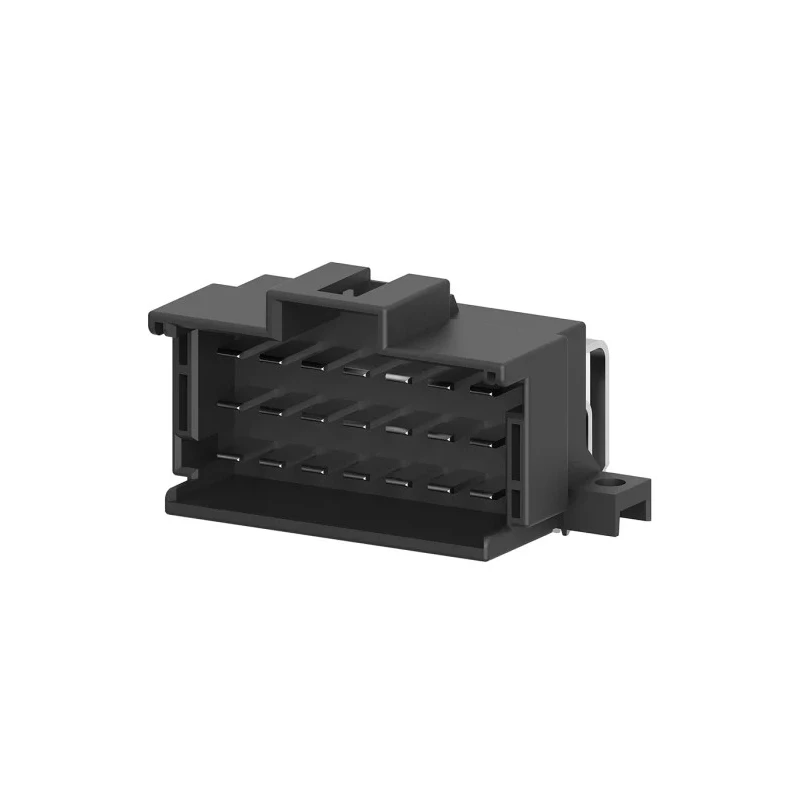

TE Connectivity Automotive Connector Male Black PCB 21 Way Solder Termination 9-966140-6

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Automotive Connector Male Black PCB 21 Way Solder Termination 9-966140-6

Name: TE Connectivity Automotive Connector Male Black PCB 21 Way Solder Termination 9-966140-6
Brand: TE Connectivity
SKU: 421092
Price: 20.22 USD
Availability: InStock



Category Automotive Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Current	40A
Height	25.7mm
Depth	20.3mm
Width	42.5mm
Gender	Male
Mount Type	PCB
Housing Material	Polyamide
Contact Material	Cusn4
Termination Type	Solder
Maximum Operating Temperature	100°C
Sub Type	Header
Minimum Operating Temperature	-40°C
Number of Rows	3
Contact Plating	Tin
Number of Contacts	21

Key Features

This connector features 21 contacts arranged in 3 rows for reliable signal transmission.
Constructed with polyamide housing and CuSn4 contact material plated with tin for durability.
Designed for PCB mounting with solder termination ensuring secure attachment.
Operates efficiently within a temperature range from -40°C to 100°C.
This male connector supports a current rating of 40A for high power applications.
The compact dimensions of 42.5mm width, 25.7mm height, and 20.3mm depth facilitate tight installation environments.
Its black color housing supports easy visual identification in complex assemblies.
Suitable for automotive electrical connector use and other industrial electronics.

Product Description

TE Connectivity 9-966140-6 Automotive Connector is a high-performance male connector designed for PCB mounting with solder termination. It has 21 contacts arranged in 3 rows, supporting robust electrical connections in automotive and industrial applications. The black polyamide housing provides excellent mechanical strength and chemical resistance.

Its CuSn4 (Copper-Tin) contact material with tin plating ensures reliable conductivity and corrosion resistance, suitable for environments demanding durability and stable performance.

This connector operates across a temperature range of -40°C to 100°C, making it suitable for harsh automotive and electronic environments. The connector supports a high current capacity of 40 amps, supporting demanding power transmission needs.

Its compact size, 42.5mm width by 25.7mm height and 20.3mm depth, enables integration into space-constrained PCB layouts. Applications include automotive electrical systems, industrial electronics, and other machinery requiring reliable male PCB connectors.

This connector features 21 contacts arranged in 3 rows for reliable signal transmission. Constructed with polyamide housing and CuSn4 contact material plated with tin for durability. Designed for PCB mounting with solder termination ensuring secure attachment.

Operates efficiently within a temperature range from -40°C to 100°C. This male connector supports a current rating of 40A for high power applications. The compact dimensions of 42.5mm width, 25.7mm height, and 20.3mm depth facilitate tight installation environments.

Its black color housing supports easy visual identification in complex assemblies. Suitable for automotive electrical connector use and other industrial electronics. Complies with standard automotive connector requirements though no formal approvals are listed.
