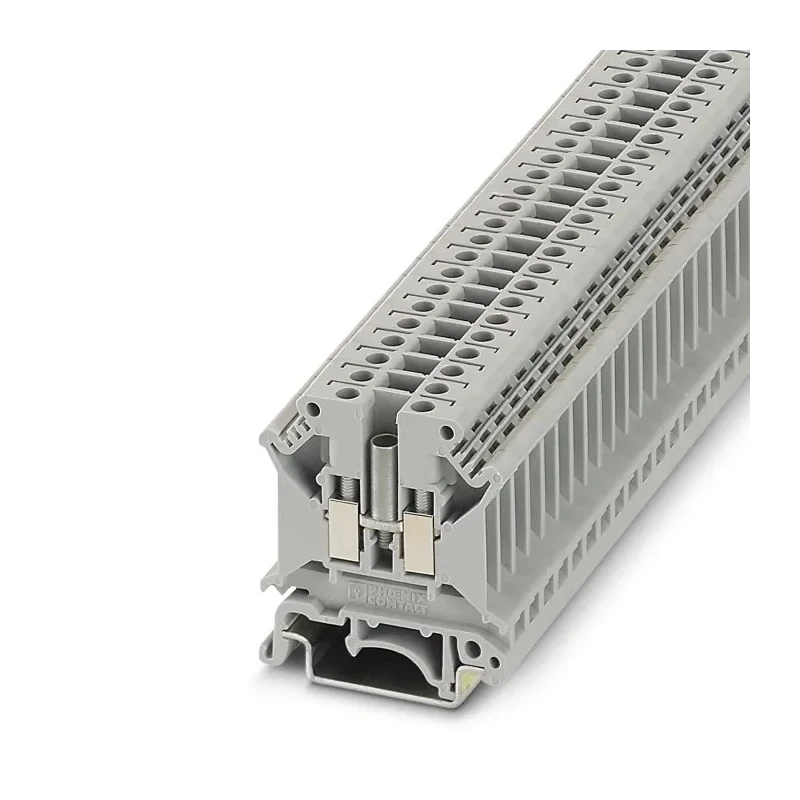

Phoenix Contact Feed Through Terminal Block UK5 N CB Series, 1-Level, Screw Termination, 800V, 32A, 0.2mm² to 6mm² 3048441

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Feed Through Terminal Block UK5 N CB Series, 1-Level, Screw Termination, 800V, 32A, 0.2mm² to 6mm² 3048441

Name: Phoenix Contact Feed Through Terminal Block UK5 N CB Series, 1-Level, Screw Termination, 800V, 32A, 0.2mm² to 6mm² 3048441
Brand: PHOENIX CONTACT
SKU: 420343
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Voltage	800V
Brand	Phoenix Contact
Colour	Grey
Model	3048441
Series	UK5 N CB
Termination Type	Screw
Number of Levels	1
Sub Type	Watertight Safety Shroud
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	10AWG
Cable CSA	0.2, 6mm²
Terminal Block Current	32A
Feed-through terminal block, nom. voltage	800 V, nominal current: 32 A, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32

Key Features

Supports nominal voltage of 800V ensuring reliable insulation.
Rated current capacity of 32A for heavy-duty electrical applications.
Compact 6.2 mm width for space-saving DIN rail mounting.
One-level, two-connection design simplifies wiring.
Compatible with NS 35/7.5, NS 35/15, and NS 32 mounting rails.
Constructed with a grey watertight safety shroud for protection.
Screw termination offers secure and maintenance-friendly connections.
Suitable for industrial, electrical, and automation system installations.

Product Description

Phoenix Contact 3048441 is a high-quality feed through terminal block in the UK5 N CB series, specifically engineered for industrial and electrical connector applications. This product features one level and two connections, allowing efficient wiring solutions.

It supports a nominal voltage of 800 V and a nominal current of 32 A, ensuring safe and robust performance in demanding electrical environments. The device accommodates wire cross sections from 0.2 mm² to 6 mm² (AWG 24 to AWG 10), in line with common wiring standards.

The terminal block includes a screw connection method, which promotes reliable and maintainable electrical contacts. Its compact width of 6.2 mm allows effective space utilization on standard NS 35/7.5, NS 35/15, and NS 32 DIN rails used in control cabinets and automation equipment. The grey-colored unit is equipped with a watertight safety shroud to provide additional protection against environmental factors.

Potential distribution is facilitated through fixed bridges integrated into the terminal center or via insertion bridges in the clamping space, enhancing the versatility of electrical installations.

Supports nominal voltage of 800 V and nominal current of 32 A. Wire cross-section range of 0.2 mm² to 6 mm² (AWG 24-10). Screw type termination promotes secure connections. Mounting compatible with NS 35/7.5, NS 35/15, and NS 32 DIN rails.

One-level, two-connection design with a 6.2 mm width. Constructed with a grey watertight safety shroud for protection. Enables potential distribution with fixed and insertion bridges. Ideal for industrial electrical, automation, and power connector applications.

This Phoenix Contact terminal block is manufactured in China and supplied new, meeting professional standards for DIN rail terminal blocks. It is ideal for use across industrial automation systems, power distribution, and control panel wiring.
