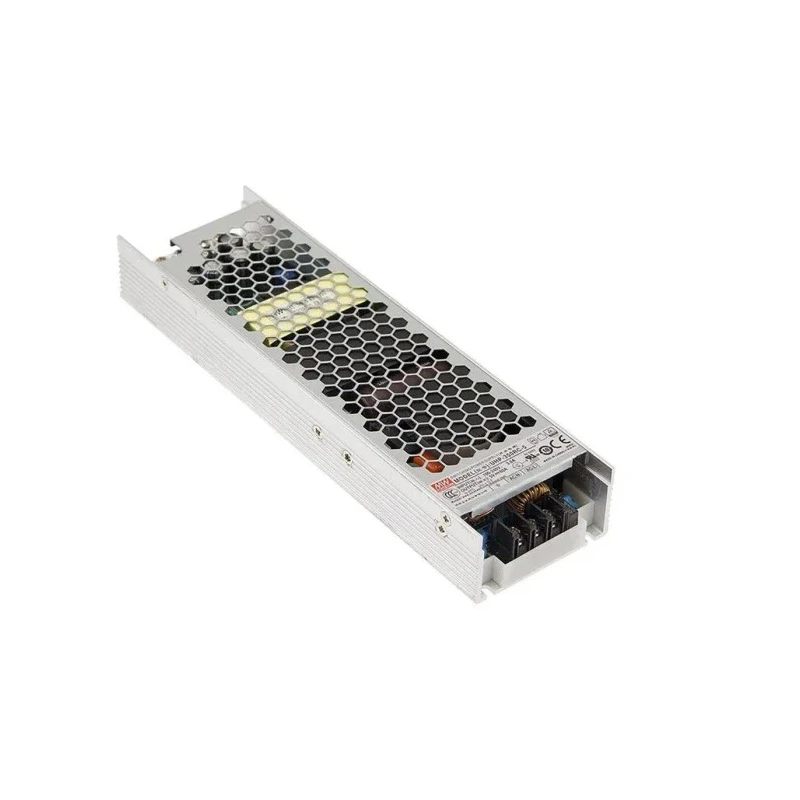

MEAN WELL UHP-350R-15 Switching Power Supply 15V DC, 351W, 23.4A Output, Fanless Chassis Mount UHP-350R-15

MEAN WELL UHP-350R-15 is a highly reliable switching power supply delivering 15V DC output voltage at 23.4A current, with a maximum power of 351W. It features a slim and low-profile chassis mount design with a thickness of just 31mm, enabling installation in space-constrained industrial environments.

The power supply incorporates fanless convection cooling for silent operation and enhanced longevity. It supports a wide operating temperature range from -30°C to 70°C, making it suitable for demanding industrial automation machinery, mechanical and electrical equipment, and electronic instrument applications.

Designed with robust protections including short circuit, overload, over voltage, and over temperature safeguards, the UHP-350R-15 ensures stable and safe operation. The product withstands surge inputs up to 300VAC for 5 seconds and includes a built-in active PFC function that improves power factor and overall efficiency, measured at 92%.

This model is equipped with a DC OK active signal and optional redundant function for enhanced system uptime and monitoring. Its compact footprint of 220mm length, 62mm width, and 31mm depth allows flexible mounting options in chassis configurations.

Certified to international standards such as UL 62368-1, CSA C22.2, IEC 60950-1, and others, this power supply complies with multiple safety and quality norms. Typical applications include industrial automation systems, LED display modules, household appliances, and electronic equipment requiring reliable and efficient power conversion.

Single output, 15V DC at 23.4A current with 351W power rating. Fanless convection cooling with slim 31mm profile suitable for chassis mount. Wide operating temperature from -30°C to +70°C for extreme conditions. Comprehensive protection features improve device safety and durability.

High efficiency of 92% reduces energy and heat load. Withstands surge voltages up to 300VAC for robust operation. Includes DC OK signal and optional redundant function for system monitoring. Compact dimensions of 220 x 62 x 31 mm for versatile installation.

Fully certified to international safety standards ensuring quality and compliance. Explore reliable power supplies like the MEAN WELL UHP-350R-15 in EnvMart’s extensive catalog for industrial and electronic power solution needs.
