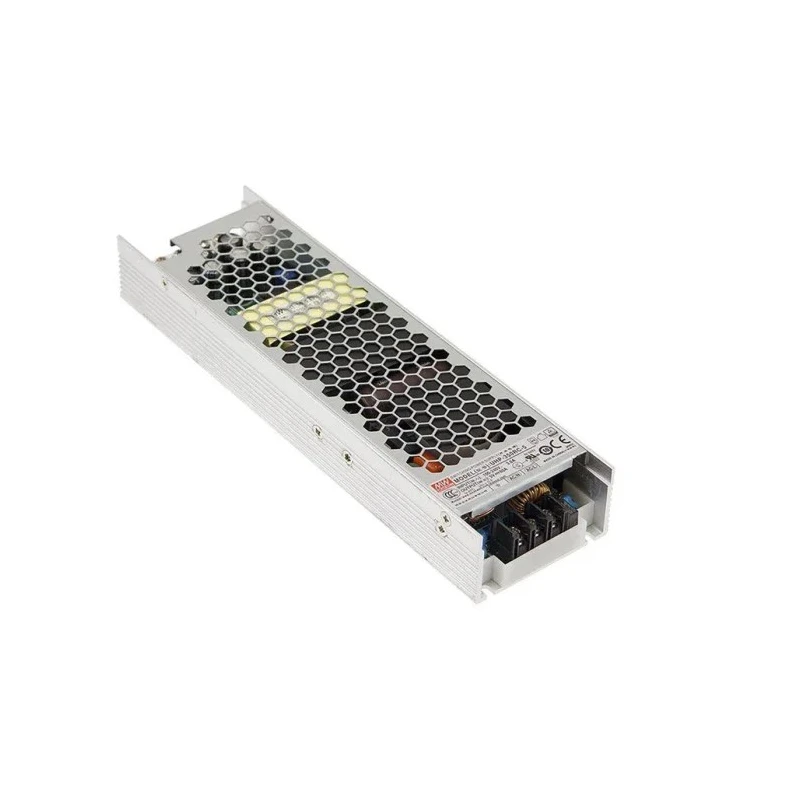

MEAN WELL UHP-350R-5 300W Slim Fanless Switching Power Supply 5V DC 60A, 90V-370V AC/DC Input, Chassis Mount UHP-350R-5

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL UHP-350R-5 300W Slim Fanless Switching Power Supply 5V DC 60A, 90V-370V AC/DC Input, Chassis Mount UHP-350R-5

Name: MEAN WELL UHP-350R-5 300W Slim Fanless Switching Power Supply 5V DC 60A, 90V-370V AC/DC Input, Chassis Mount UHP-350R-5
Brand: MEAN WELL
SKU: 420249
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	300W
Efficiency	90%
Length	220mm
Model	UHP-350R-5
Depth	31mm
Gross Weight	680g
Width	62mm
Mount Type	Chassis
Series	UHP-350R
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit / Overload / Over voltage / Over temperature
Maximum Output Voltage	5V dc
SMPS Output Current	60A
Minimum Input Voltage	90V ac

Key Features

Operates with an output voltage of 5V DC at 60A current capacity.
Supports wide input voltage from 90V AC to 370V DC for versatile applications.
Chassis mount type with compact dimensions of 220mm length, 62mm width, and 31mm depth.
Designed for efficient convection cooling without fans, ensuring silent operation.
Includes protections for short circuit, overload, over voltage, and over temperature.
Compliance with multiple international standards such as UL 62368-1 and TUV EN 62368-1.
Operating temperature range from -30°C to 70°C suitable for industrial environments.
Energy efficiency of 90% and withstanding 300VAC surge input for 5 seconds.

Product Description

MEAN WELL UHP-350R-5 is a high-performance 300W switching power supply offering a slim and low profile design with a height of only 31mm. This model features a fanless convection cooling system, making it suitable for noise-sensitive environments and demanding industrial applications.

Delivering a stable 5V DC output at 60A, it supports an input voltage range spanning from 90V AC to 370V DC, providing flexibility for various power sources. The chassis mount type allows easy integration into power control panels and machinery.

The power supply is equipped with built-in protections including short circuit, overload, over voltage, and over temperature safeguards to enhance operational safety and reliability.

This unit complies with global safety and quality certifications such as UL 62368-1, TUV BS EN/EN 62368-1, IS 13252 (Part 1)/IEC 60950-1, CSA C22.2 No. 62368-1, CCC GB4943.1, BSMI CNS143361, and AS/NZS 62368.1, ensuring suitability for international markets.

Its rugged design supports operation in harsh industrial environments within a temperature range of -30°C to +70°C and can withstand surge inputs of 300VAC for 5 seconds. The device also features DC OK signaling and optional redundant function to increase system uptime for critical applications.

Typical applications include industrial automation machinery, industrial control systems, mechanical and electrical equipment, electronic instruments, household appliances, and LED display applications.

Operates at 5V DC output voltage with 60A output current. Fanless convection cooling for silent operation. Wide input voltage range 90V AC to 370V DC. Built-in active PFC for improved power quality. Multiple protections for enhanced safety and durability.

Chassis mount type for easy installation. Compact size with dimensions 220mm (L) x 62mm (W) x 31mm (D). Energy efficiency of up to 90%. Compliance with international safety standards. Suitable for industrial and commercial electronic applications.
