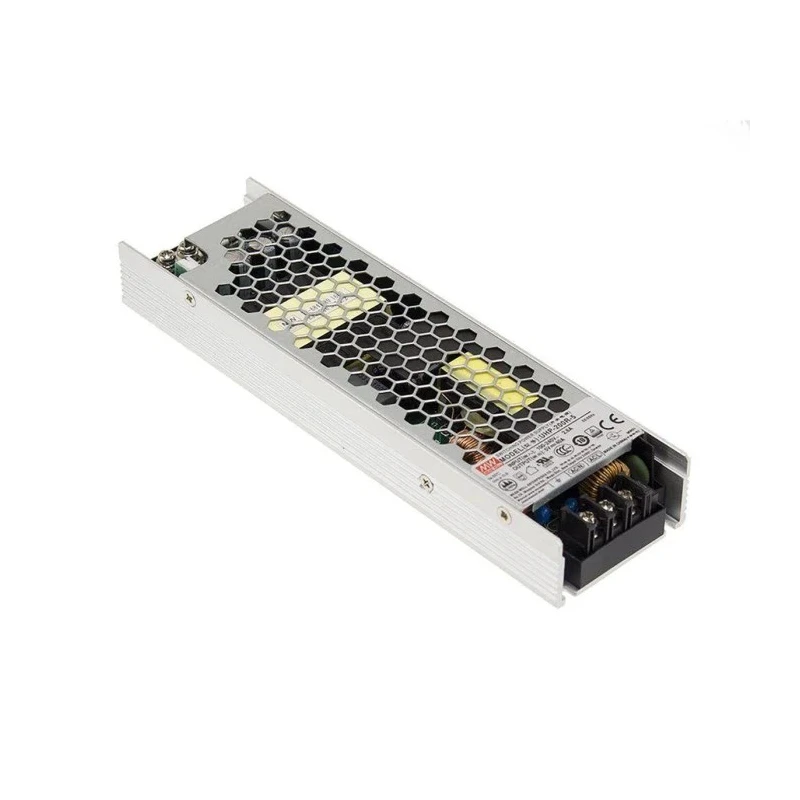

MEAN WELL Switching Power Supply 201.6W 36V dc 5.6A Fanless Chassis Mount UHP-200R-36

MEAN WELL UHP-200R-36 Switching Power Supply offers a slim and low profile 200W power solution with 36V DC output at 5.6A suitable for demanding industrial and commercial applications. The unit is designed for chassis mounting, featuring a fanless construction and convection cooling to ensure silent and reliable operation in environments from -30°C up to 70°C.

This power supply incorporates built-in protections such as short circuit, overload, over voltage, and over temperature, providing robust safety and operational stability. It supports a wide input voltage range from 90V AC to 370V DC, and can tolerate surge inputs of 300VAC for 5 seconds, demonstrating excellent resilience for industrial use.

Efficiency rating of 94% enhances energy savings and reduces heat dissipation. The DC OK signal and optional redundant function facilitate monitoring and system redundancy in critical applications. With dimensions of 194mm length, 55mm width, and 26mm depth, and weighing 468g, it fits compact installation spaces.

The power supply meets numerous international standards and approvals such as IS 13252(Part1), IEC 60950-1, UL 62368-1, TUV, CCC, CSA, BSMI, and others, ensuring safety and regulatory compliance worldwide. The UHP-200R-36 series is ideal for industrial automation machinery, mechanical and electrical equipment, electronic instruments, household appliances, and LED display applications.

This product is made in China and comes with a 3-year warranty, making it a dependable choice for robust power supply needs in industrial and commercial systems. Compact fanless design with 26mm low profile for efficient convection cooling.

Wide operating temperature range from -30°C to 70°C for harsh environments. Built-in protections including short circuit, overload, over voltage, and over temperature. High efficiency up to 94% reducing energy loss and heat generation.

Supports input voltage range from 90V ac minimum to 370V dc maximum. Equipped with DC OK signal and optional redundant function for system reliability. Can withstand surge input of 300VAC for 5 seconds ensuring durability.

Suitable for industrial automation, machinery, control systems, and LED display applications. Chassis mount type with dimensions 194mm x 55mm x 26mm and weight approximately 468g. Complies with multiple international safety standards including IEC 60950-1 and UL 62368-1.
