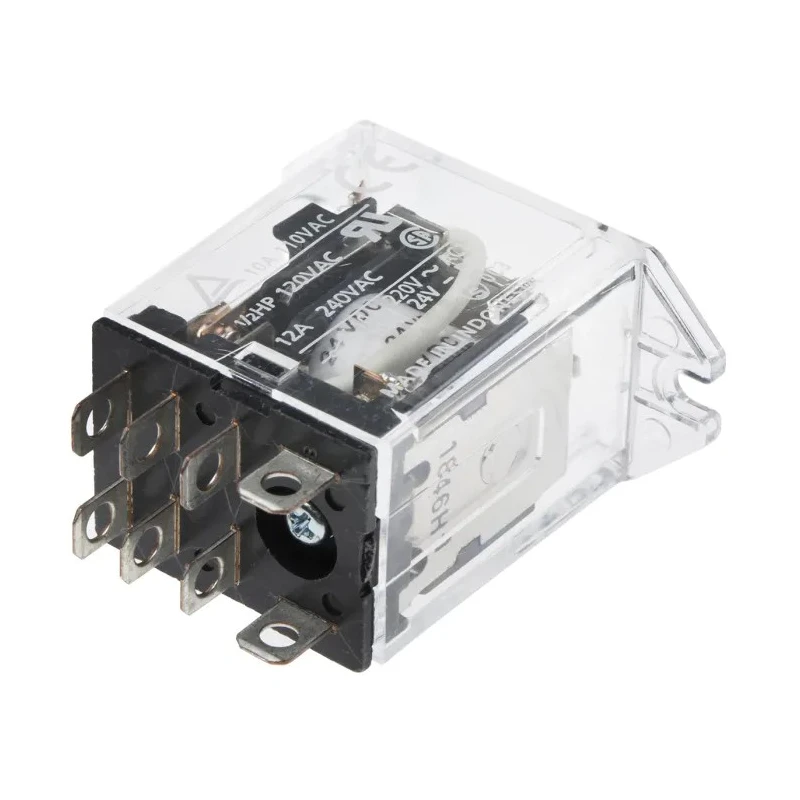

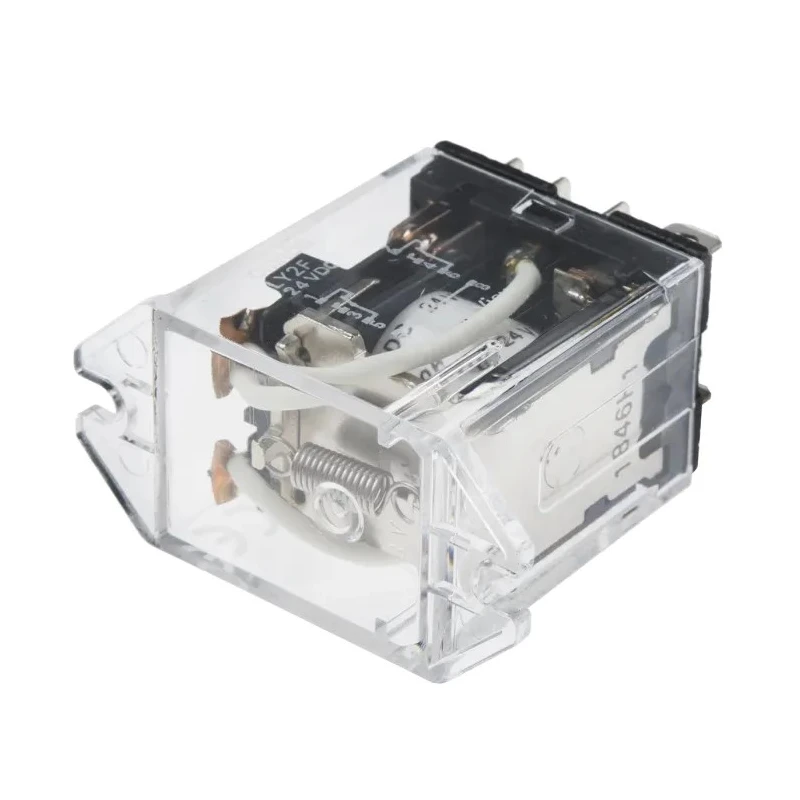

Omron Power Relay, 24V DC Coil Voltage, 10A Switching Current, DPDT Contact Configuration LY2F 24VDC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 44mm |
| Length | 22.5mm |
| Model | LY2F 24VDC |
| Width | 35.5mm |
| Contact Material | Silver Alloy |
| Series | LY2F |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 900mW |
| Switching Power | 0.9W |
Key Features
- Operates with a 24V DC coil voltage for consistent performance.
- Supports a maximum switching current of 10A suitable for various electrical loads.
- Features DPDT contact arrangement for versatile control of multiple circuits.
- Compact dimensions measuring 22.5mm (L) x 35.5mm (W) x 44mm (H) for easy installation.
- Designed to operate over a temperature range of -25°C to +55°C for environmental adaptability.
- Equipped with PCB pin type terminals for reliable circuit integration.
- Silver alloy contact materials ensure low resistance and high durability.
- Complies with international safety standards including CSA and UL certifications.
Product Description
Omron LY2F 24VDC power relay features a 24V DC coil voltage and DPDT contact configuration engineered for reliable, versatile switching in automation and commercial electrical control systems. This relay supports a maximum switching current of 10A, handling switching voltages up to 125V AC and 125V DC, making it appropriate for a broad range of applications requiring robust power control.
The relay’s compact form factor with dimensions of 22.5mm length, 35.5mm width, and 44mm height enables installation in confined spaces on PCBs. It is designed to operate effectively across temperatures from -25°C to 55°C, providing environmental robustness for industrial and commercial use cases.
Equipped with silver alloy contacts, the relay maintains a low contact resistance of 50mΩ, ensuring efficient and stable electrical performance. The coil resistance stands at 650Ω, consuming 900mW coil power, delivering optimal electrical characteristics with a switching power rating of 0.9W. The coil-to-contact isolation withstands 2kV AC, enhancing the relay’s safety and reliability in high-voltage control circuits.
This product complies with CSA and UL standards, signifying international quality and safety adherence. The DPDT (Double Pole Double Throw) configuration offers a versatile switching solution, allowing control across multiple circuits simultaneously.
Use cases include general-purpose power switching for automation systems, industrial electrical control, and powering commercial electrical appliances. Its robust mechanical and electrical life make it suitable for demanding environments requiring up to 100 million mechanical operations and 500,000 electrical operations.
Operates with 24V DC coil voltage for dependable switching. Maximum switching current of 10A ensures capability for heavy loads. DPDT contact configuration for multi-circuit control applications. Compact design with PCB pin terminals simplifies integration.
Temperature range of -25°C to +55°C for broad environmental tolerance. Silver alloy contacts improve longevity and reduce resistance. Certifications include CSA and UL for assured compliance. Suitable for industrial automation, manufacturing, HVAC, and commercial equipment.
High coil-to-contact isolation voltage enhances operating safety. Durable mechanical and electrical life supports sustained use.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC, providing consistent performance for various applications.
This model can handle a maximum switching current of 10A, making it suitable for various electrical loads.
It features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile control of multiple circuits.
The relay has compact dimensions measuring 22.5mm in length, 35.5mm in width, and 44mm in height, facilitating easy installation.
It operates effectively over a temperature range of -25°C to +55°C, providing adaptability in various environments.
The contacts are made of silver alloy, which helps ensure low resistance and high durability.
This relay supports switching voltages up to 125V AC and 125V DC, making it versatile for different applications.
It is equipped with PCB pin type terminals for reliable circuit integration.
The coil resistance of this relay is 650Ω, which contributes to its optimal electrical characteristics.
This product complies with CSA and UL standards, indicating adherence to international safety and quality standards.
The contact resistance is 50mΩ, ensuring efficient and stable electrical performance during operation.
The coil power consumption is 900mW, providing efficient operation for the relay's functions.
