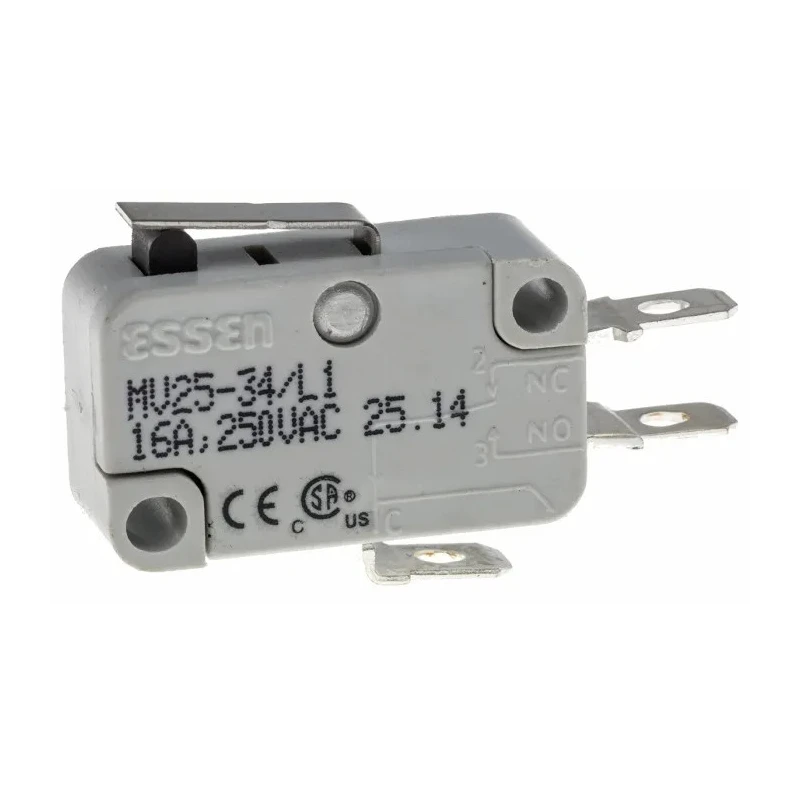

RS PRO Short Lever Micro Switch, Quick Connect Terminal, 16A, 250 V ac, SPCO 804-6237

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Short Lever Micro Switch, Quick Connect Terminal, 16A, 250 V ac, SPCO 804-6237

Name: RS PRO Short Lever Micro Switch, Quick Connect Terminal, 16A, 250 V ac, SPCO 804-6237
Brand: RS PRO
SKU: 419806
Price: 407.03 INR
Availability: InStock



Category Micro Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Length	37.8mm
Model	804-6237
Housing Material	Glass Filled Thermoplastic
Series	RS PRO
Maximum Operating Temperature	85°C
Contact Configuration	SPCO
Actuator Type	Short Lever
Minimum Operating Temperature	-55°C
Terminal type	Quick Connect
Standards/Approvals	LCSO, CE, IEC 1058-1, CSA
Switch Contact Current	16A
Operating Force	400g
Mechanical Life	10000000Operations
Contact AC Voltage	250V ac

Key Features

Equipped with a short lever actuator for precise and reliable switching.
Designed with a quick connect terminal for easy and secure wiring connections.
Supports a switch contact current of 16 amperes for heavy-duty applications.
Utilizes SPCO contact configuration to ensure a robust circuit path.
Constructed with glass filled thermoplastic housing material for durability and insulation.
Operates at a mechanical life of up to 10 million operations for extended reliability.
Operates efficiently within a temperature range from -55°C to 85°C suitable for diverse environments.
Certified to standards including LCSO, CE, IEC 1058-1, and CSA ensuring quality and compliance.

Product Description

RS PRO 804-6237 Short Lever Micro Switch is a miniature micro switch featuring a quick connect terminal, rated for 16A switch contact current and supporting 250 V ac contact voltage. This robust switch employs an SPCO (Single Pole Changeover) contact configuration and utilizes a short lever actuator for precise operation.

The housing is built from glass filled thermoplastic, providing excellent durability and electrical insulation. The switch requires an operating force of 400 grams and is designed for long-term use with a mechanical life expectancy of 10 million operations.

Operating within a temperature range from -55 degrees Celsius up to 85 degrees Celsius, this micro switch can function reliably in demanding industrial and automation environments. It complies with multiple standards such as LCSO, CE, IEC 1058-1, and CSA to meet safety and quality requirements.

Common applications include automotive systems, vending machines, telecommunication equipment, security systems, and instrumentation, where durable and precise switch actions are critical.

RS PRO 804-6237 combines reliability with ease of installation thanks to its quick connect terminal type, making it ideal for various electrical switching requirements. Equipped with a short lever actuator for precise and reliable switching.

Designed with a quick connect terminal for easy and secure wiring connections. Supports a switch contact current of 16 amperes for heavy-duty applications. Utilizes SPCO contact configuration to ensure a robust circuit path.

Constructed with glass filled thermoplastic housing material for durability and insulation. Operates at a mechanical life of up to 10 million operations for extended reliability. Operates efficiently within a temperature range from -55°C to 85°C suitable for diverse environments.

Certified to standards including LCSO, CE, IEC 1058-1, and CSA ensuring quality and compliance. Suitable for industrial, automation, and electrical applications requiring miniature micro switches. Explore a wide range of industrial-grade Micro Switches and electrical components in the Electronics & Electricals category on EnvMart.
