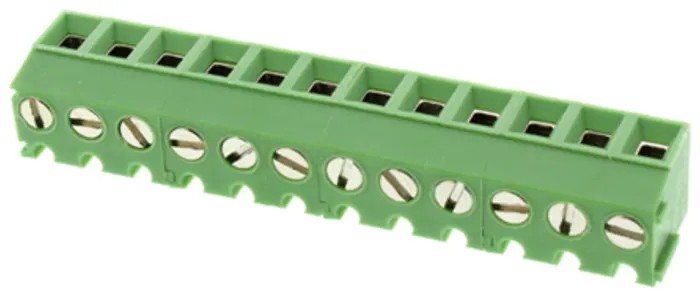

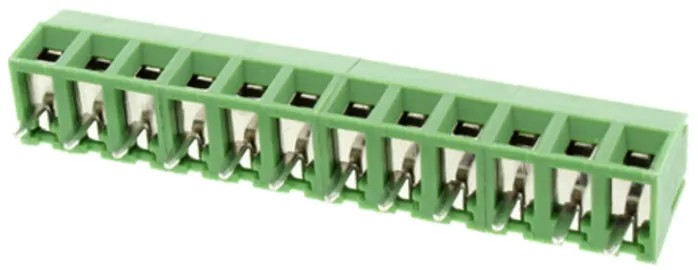

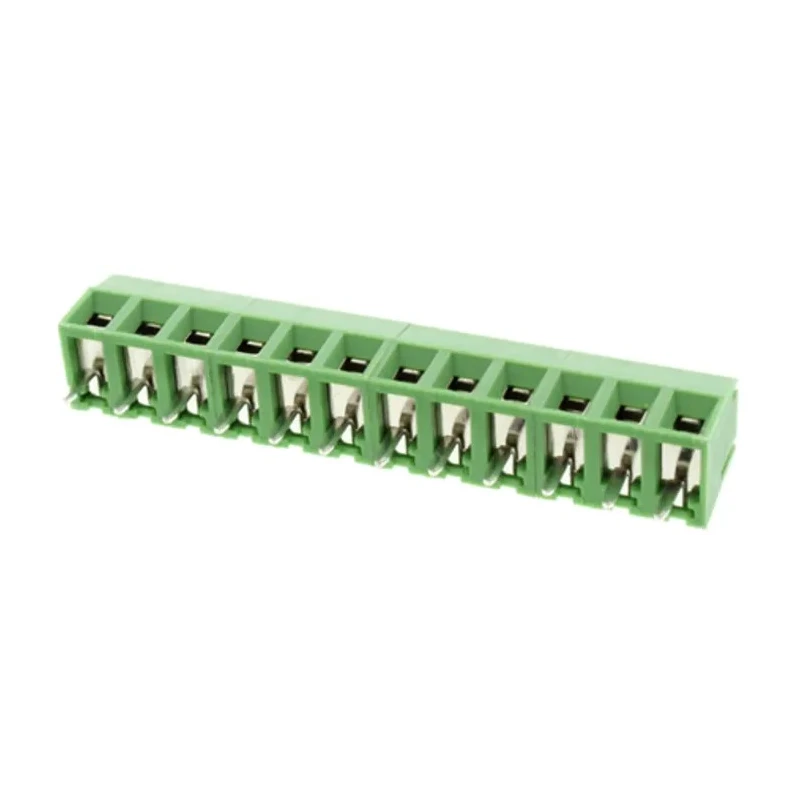

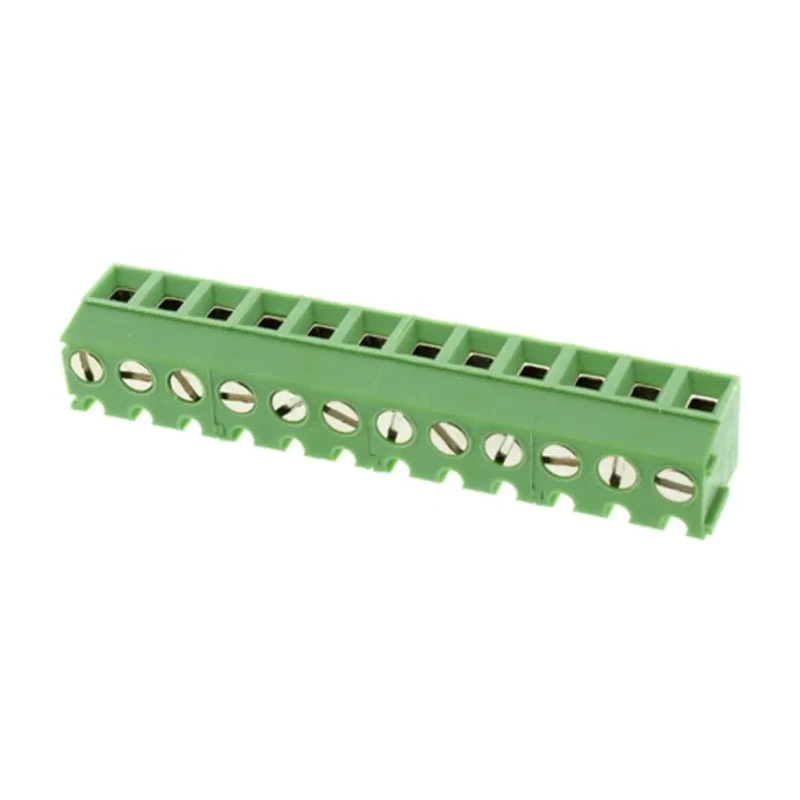

RS PRO PCB Terminal Block 12-Contact 3.81 mm Pitch 1 Row 300V Polyamide Housing 8A Current 790-0957

RS PRO 790-0957 is a high-quality PCB Terminal Block featuring 12 contacts arranged in a single row with a precise 3.81 mm pitch. This terminal block operates at a voltage of 300V and is rated for a current of 8A, making it suitable for industrial and electronic applications including automation systems, power connectors, and circuit board interfacing.

The terminal block housing is made from robust green polyamide material that provides excellent insulation and durability under demanding conditions. It accommodates wire sizes from 16 AWG to 26 AWG, connected securely via screw-type connections ensuring firm and reliable electrical contact.

Its compact design includes dimensions of 45.72 mm length, 7.2 mm width, and 8.5 mm depth, optimized for space-efficient PCB integration. The straight orientation facilitates straightforward assembly and wiring on printed circuit boards.

The PCB tails are rectangular and tin-plated measuring 0.9 x 0.5 mm by 3.5 mm length, providing optimal solderability and ensuring a stable electrical connection. Manufactured in Taiwan, Province Of China, this product meets high manufacturing standards, although it is not specified to have formal certifications.

This RS PRO PCB Terminal Block is ideal for use in electronic component assemblies, industrial automation systems, control gear, power electronic connectors, and other applications requiring secure and reliable PCB wiring solutions.

The terminal block is constructed with durable green polyamide housing for insulation and strength. It supports wire sizes ranging from 16 AWG to 26 AWG using a screw connection method for secure wiring. Rated for a current of 8 amperes, suitable for various electronic applications.

Compact dimensions with a length of 45.72 mm, width of 7.2 mm, and depth of 8.5 mm. Designed with straight orientation to facilitate PCB mounting and connectivity. The rectangular tin-plated PC tails measure 0.9 x 0.5 mm and extend 3.5 mm for reliable soldering.

Manufactured in Taiwan, Province Of China, ensuring high-quality standards. No certifications or approvals are specified for this product. Browse the EnvMart catalog for an extensive collection of PCB Terminal Blocks and electronic components from reliable brands like RS PRO.
