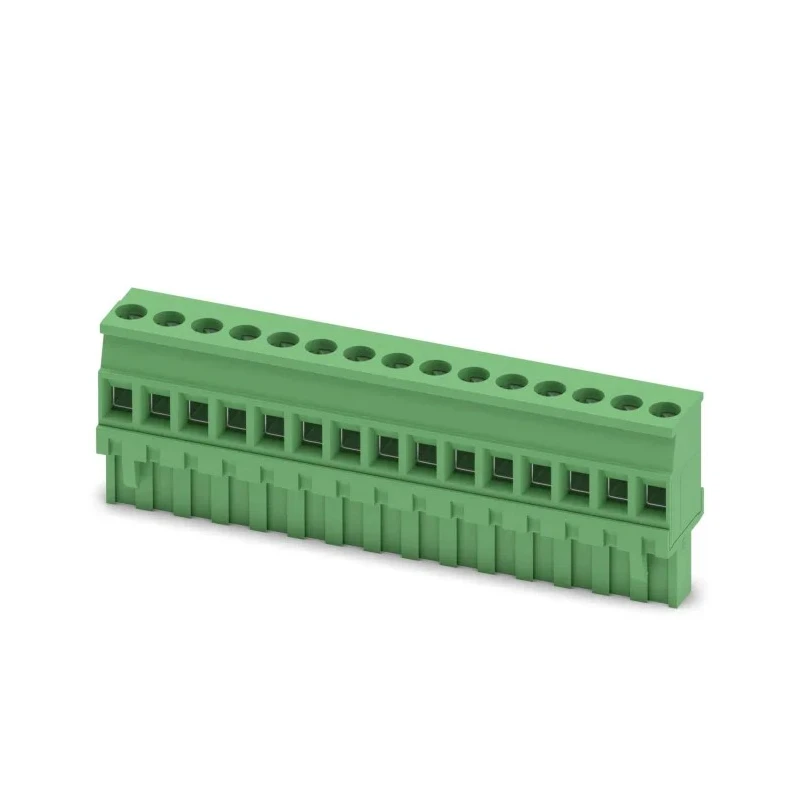

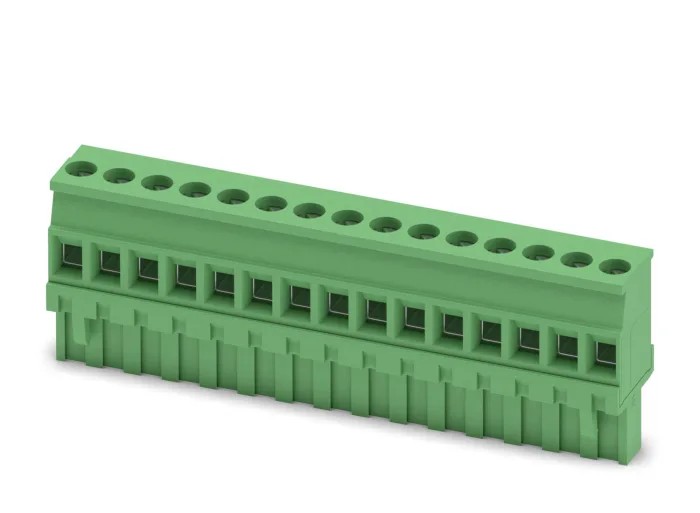

Phoenix Contact MVSTBR 2.5/15-ST Series Pluggable Terminal Block 15-Contact 5mm Pitch 12A Current 1792142

Phoenix Contact 1792142 is a high-quality pluggable terminal block from the MVSTBR 2.5/15-ST series, featuring 15 contacts with a 5 mm pitch designed for efficient PCB electrical connections.

This terminal block supports a nominal cross section of 2.5 mm² and rated current up to 12 A, making it ideal for industrial and electronic applications requiring dependable power distribution and signal wiring.

The unit features a single row of contacts in a right angle orientation, allowing for space-saving PCB layouts and easy integration into control panels. The spring cage connection method enhances reliability by ensuring secure wire retention and resistance to vibration and mechanical stresses.

The housing is made from robust polyamide material with a distinctive green color for quick identification and durability in demanding environments. It accommodates wire sizes ranging from 0.2 mm² to 1.5 mm², supporting both fine and thicker conductors within the 24 AWG to 16 AWG range.

This terminal block can handle voltages up to 630 V, suitable for a wide range of electronic and electrical system requirements. Compact in size with dimensions of 12.5 mm length, 75 mm width, and 26 mm depth, it fits easily into various assemblies without compromising connection quality.

Nominal cross section 2.5 mm² for reliable electrical conduction. Supports a maximum current of 12 A for moderate load applications. Spring cage wire connection provides secure and maintenance-free contacts. Right angle orientation optimizes PCB space and design flexibility.

Polyamide housing with green color ensures durability and easy identification. Accepts wire sizes from 0.2 mm² to 1.5 mm², supporting 24 AWG to 16 AWG wiring. Rated voltage of 630 V suitable for industrial standards. Compact footprint with length 12.5 mm, width 75 mm, and depth 26 mm.

This product is engineered for use in industrial automation, manufacturing equipment, control systems, and other electronic component assemblies where reliable and maintainable wiring solutions are critical.

Its design conforms to industry standards for pluggable terminal blocks, ensuring compatibility and ease of installation in corresponding systems. Originating from Germany, it represents the quality and precision expected from Phoenix Contact manufacturing.
