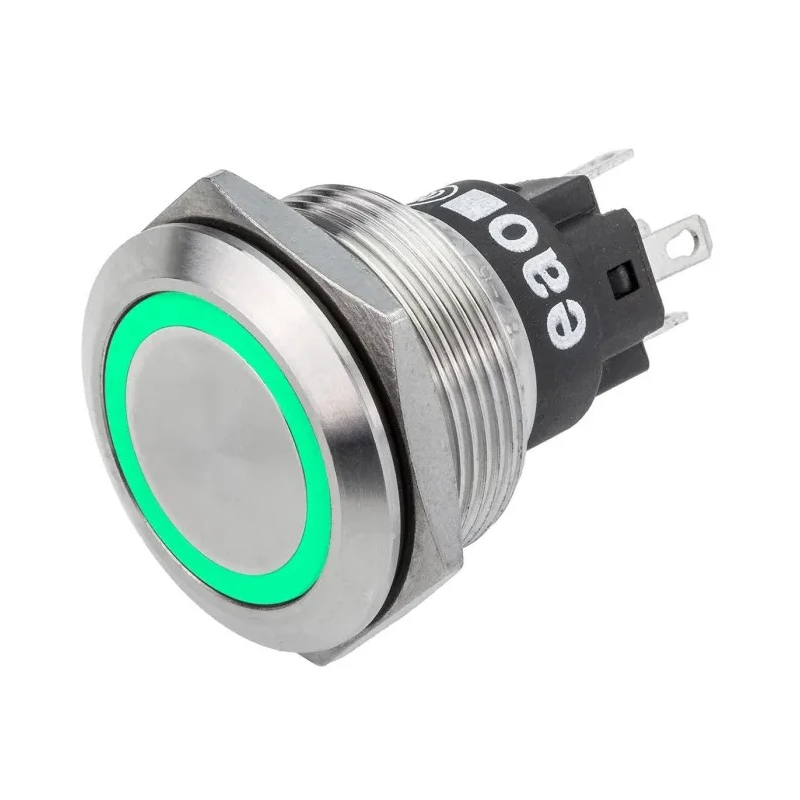

EAO Illuminated Momentary Push Button Switch Panel Mount 22.3 mm Cutout SPDT Green LED IP65 IP67 240V 3A 82-6651.1134



Category Push Button Switches Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	35.5mm
IP Rating	IP65, IP67
Width	25mm
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	36V ac
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

Features a SPDT contact configuration with CO switch setup.
Silver actuator with round style suitable for panel installation.
Rated for 240 V DC and 36 V AC operation with 3A contact current.
IP65 and IP67 rated for vandal-resistant and impact resistant use.
Operating temperature ranges from -30°C to 70°C for industrial reliability.
Long service life exceeding 1 million cycles of operation ensures durability.
Gold-plated silver contacts improve low voltage and current performance.
Constructed using stainless steel anodised aluminium or brass colored switches.

Product Description

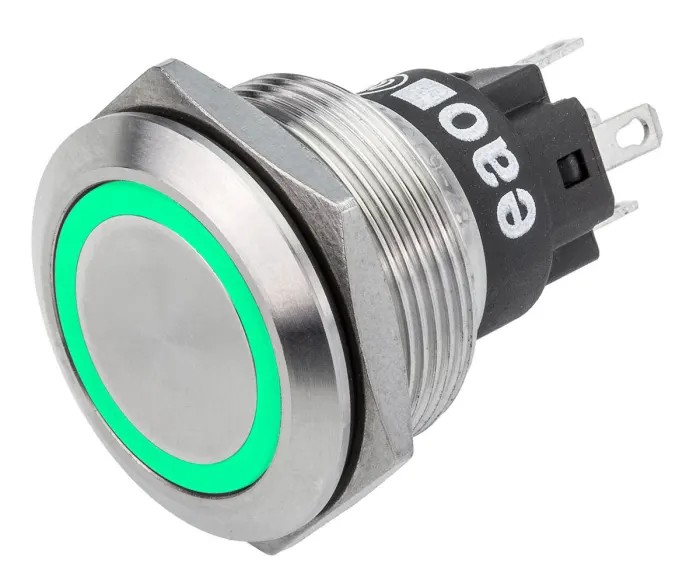

The EAO 82-6651.1134 is an illuminated momentary push button switch designed for panel mounting with a precise 22.3 mm cutout. Featuring a silver round actuator and green LED illumination, this switch provides excellent tactile feedback and high reliability for diverse industrial applications.

With a SPDT contact configuration and CO switch setup, it supports contact DC voltage up to 240 V and AC voltage up to 36 V, handling a maximum switch contact current of 3A. The switch construction includes vandal-resistant design with impact resistance, making it suitable for harsh environments.

Rated IP65 and IP67, this switch offers robust protection against dust and water ingress. It operates reliably within a temperature range of -30°C to 70°C and is built for long service life, capable of withstanding more than 1 million cycles.

The switch features gold-plated silver contacts that ensure excellent performance under low voltages and currents. The outer materials include stainless steel anodised aluminium or brass-colored finishes, accommodating demanding environments such as exposed public areas including ticketing and vending machines, industrial machinery, elevators, building access control, security systems, medical equipment, and food industry applications.

Manufactured in Switzerland, the product complies with international standards and approvals including CB, CCC, cUL, and UL, emphasizing its premium quality and safety compliance. SPDT contact configuration with momentary operation.

Green LED illumination for visual indication. IP65 and IP67 rated for water and dust protection. Vandal-resistant and impact resistant design. Gold-plated silver contacts for enhanced contact reliability. Over 1 million operational cycles ensuring longevity.

Suitable for industrial, public, and building management applications. Operating temperature range from -30°C to 70°C. Silver round actuator with stainless steel anodised aluminium or brass finish. Explore the extensive range of industrial Push Button Switches and components available at EnvMart for your automation, electrical, and control system needs.
