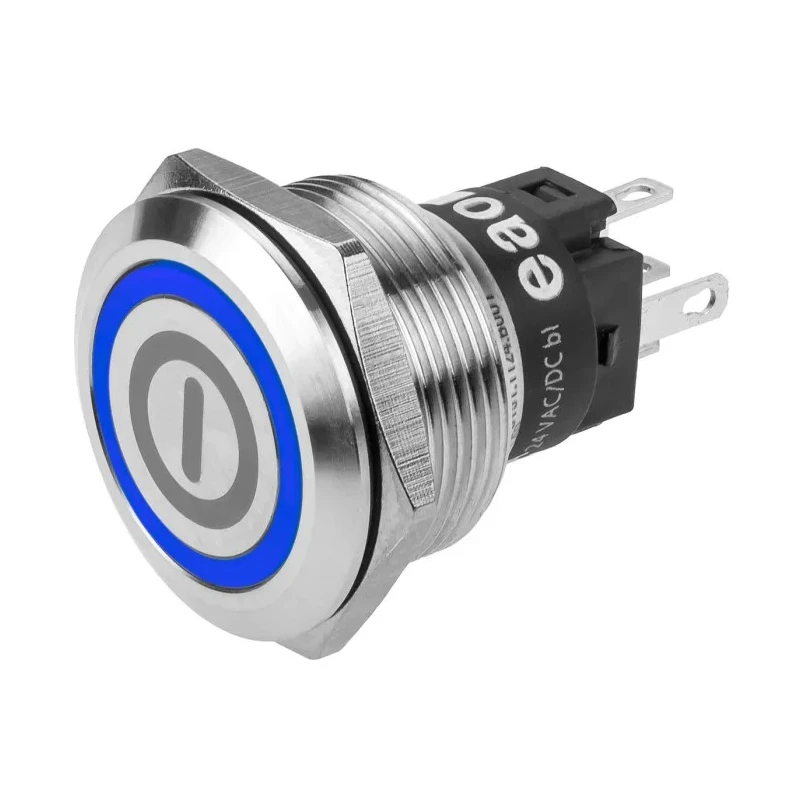

EAO 82 Series Illuminated Push Button Switch Latching Panel Mount 22.3 mm Cutout SPDT Blue LED IP65 IP67 82-6151.2124.B001

The EAO 82-6151.2124.B001 Series Illuminated Push Button Switch is a high-quality latching switch designed for panel mounting with a 22.3 mm cutout. It features a single-pole double-throw (SPDT) contact configuration and a blue LED illumination, ensuring clear visual indication under various operating conditions. Rated for IP65 and IP67, this switch is both splash-proof and dust-tight, making it suitable for demanding industrial and public use.

Its vandal-resistant and impact-resistant design is built to withstand rigorous usage while maintaining reliable electrical performance. The gold-plated silver contacts provide superior conductivity and low contact resistance at low voltages and currents. With a switch contact current of 3A and voltage ratings of 240V AC and DC, it is ideal for control panels and equipment requiring dependable switch operation.

The switch actuator is styled round to provide excellent tactile feedback, contributing to user confidence in operation. Its long service life of over one million cycles ensures lasting reliability, reducing maintenance and replacement costs. The materials used include stainless steel anodised aluminium or brass coloured options, offering corrosion resistance for harsh environments.

This push button switch finds applications in several industrial sectors such as exposed public areas (ticketing and vending machines), machinery and factory equipment, elevators and people movers, building management for security and access control, audio and video equipment, medical devices, and the food industry where corrosion and acid-resistant versions are available upon request.

The switch meets multiple international standards including CB, CCC, cUL, and UL, guaranteeing compliance with global safety and quality requirements. Operating temperature ranges from -30°C to 70°C make it adaptable to various climatic conditions.

The switch provides reliable latching operation with a vandal-resistant, impact-resistant design. It has a 3A contact current rating and supports 240V AC and DC voltages. Gold-plated silver contacts are available for low voltages and currents to ensure excellent conduction.

The round actuator style offers excellent tactile feedback with a long service life exceeding one million cycles. Suitable for exposed public areas, industrial machinery, lifting equipment, and building management systems.

The switch meets CB, CCC, cUL, and UL standards for safety and performance. Operating temperature range from -30°C to 70°C supports versatile environments. Constructed using stainless steel anodised aluminium or brass coloured finishes for durability and corrosion resistance.

Applications include ticketing and vending machines, elevators, access control, audio/video, medical equipment, and food industry.

This EAO push button switch is a reliable and durable solution for industrial, commercial, and public installations requiring illuminated latching switches with safety certifications and high ingress protection levels. Browse EnvMart's comprehensive range of Push Button Switches for your automation and control panel needs.
