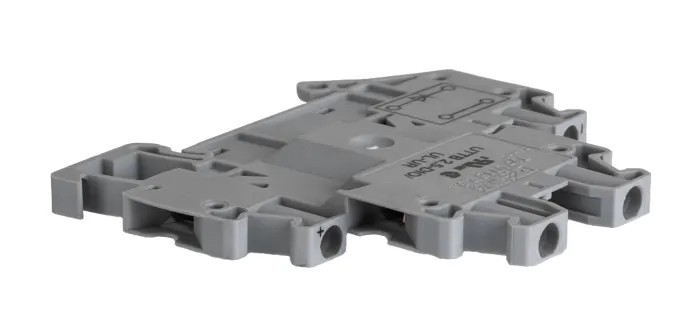

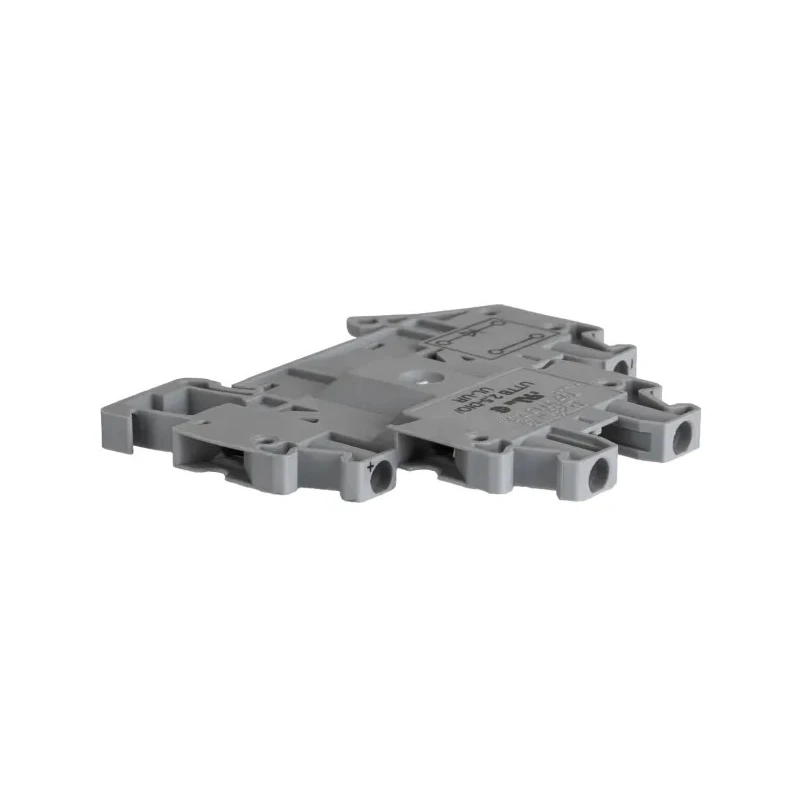

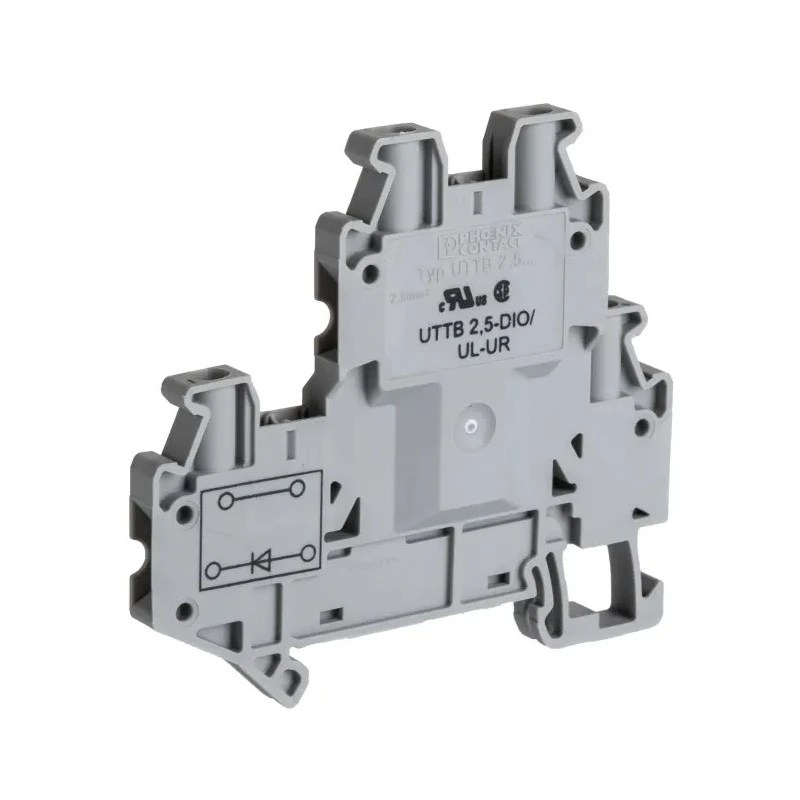

Phoenix Contact UTTB 2.5-DIO/UL-UR Series Grey 2-Level Feed Through Component Terminal Block 500V 28A Screw 3046728

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact UTTB 2.5-DIO/UL-UR Series Grey 2-Level Feed Through Component Terminal Block 500V 28A Screw 3046728

Name: Phoenix Contact UTTB 2.5-DIO/UL-UR Series Grey 2-Level Feed Through Component Terminal Block 500V 28A Screw 3046728
Brand: PHOENIX CONTACT
SKU: 417563
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	500V
Brand	Phoenix Contact
Colour	Grey
Model	3046728
Series	UTTB 2.5-DIO/UL-UR
Termination Type	Screw
Maximum Operating Temperature	110°C
Number of Levels	2
Sub Type	Feed Through
Minimum Operating Temperature	-60°C
Standards/Approvals	EAC, cULus, CSA
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Cable CSA	0.14, 4mm²
Terminal Block Current	28A

Key Features

Rated for 28A current and 500V voltage for reliable electrical performance.
Supports conductor sizes from 0.14mm² (26 AWG) up to 4mm² (12 AWG).
Operates safely in extreme temperature range from -60°C to 110°C.
Complies with EAC, cULus, and CSA standards ensuring robust safety.
Designed for integrating diodes such as 1N4007 in control circuits and modular systems.
Mounts easily on standard NS 35/7.5 or NS 35/15 DIN rails for flexible panel installation.
Double-level design optimizes space and wiring density in electrical panels.
Screw termination provides secure and durable electrical connections.

Product Description

Phoenix Contact 3046728 UTTB 2.5-DIO/UL-UR Series component terminal block is a high-quality grey DIN rail terminal block featuring a double-level feed-through design suitable for various industrial and automation applications. Rated at 28 amps and 500 volts, it ensures secure and reliable electrical connections with screw terminations.

The terminal block supports conductor cross sections from 0.14mm² to 4mm², accommodating wire sizes from 26 AWG to 12 AWG. It offers excellent operational resilience in temperatures ranging from -60°C to 110°C, making it ideal for use in challenging environmental conditions.

Constructed to comply with EAC, cULus, and CSA standards, this terminal block meets stringent safety and quality certifications, ensuring dependable circuit protection and compliance with regulatory requirements.

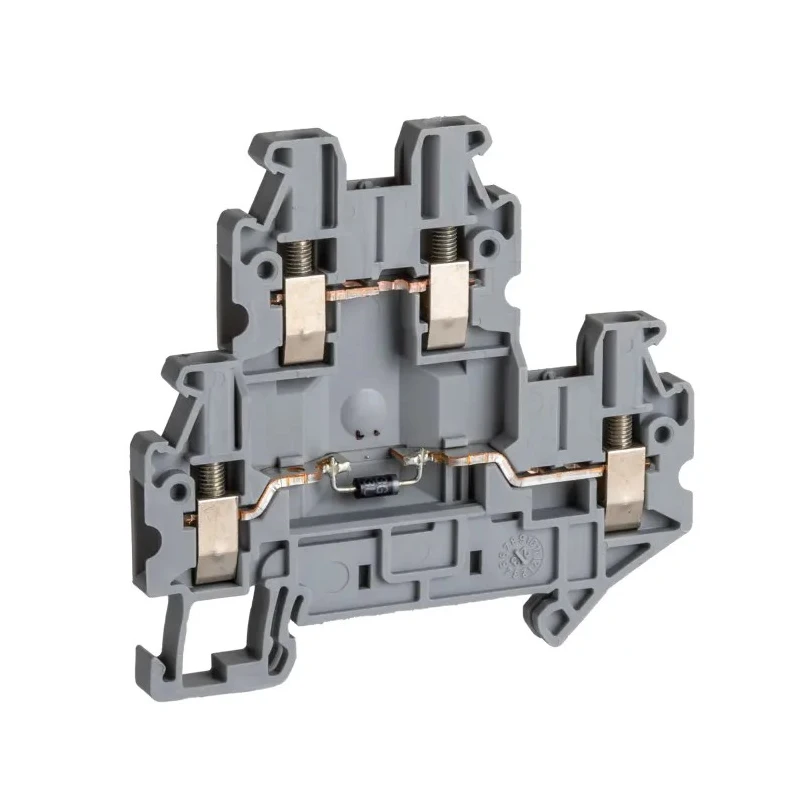

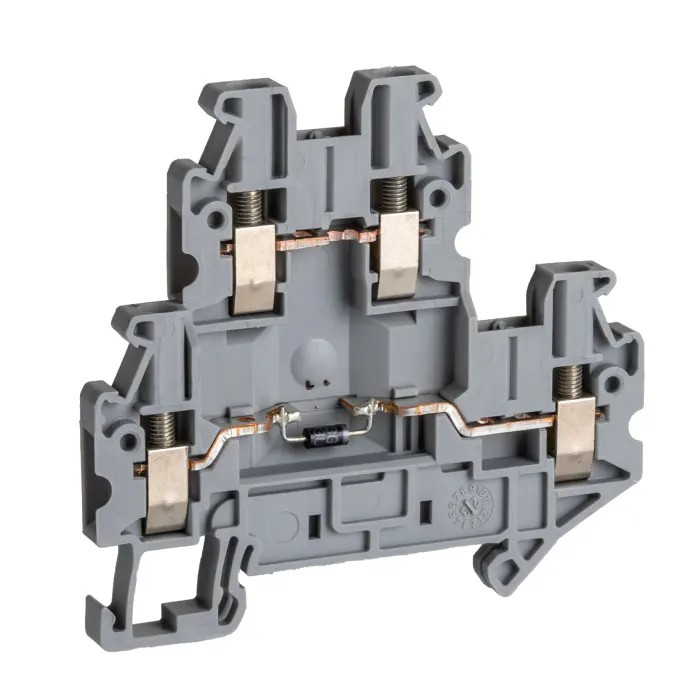

This model is optimized for the integration of diodes such as the popular 1N4007 within control circuits, commonly found in industrial automation settings. The double-level arrangement maximizes space efficiency while maintaining ease of wiring.

Installation is straightforward with compatibility for standard NS 35/7.5 or NS 35/15 DIN rails, enabling quick and secure mounting in electrical enclosures and control panels. Rated 28A current and 500V voltage for heavy-duty electrical applications.

Supports conductor sizes from 0.14mm² (26 AWG) up to 4mm² (12 AWG) for versatile wiring needs. Temperature range from -60°C to 110°C suitable for extreme environments. Double-level feed-through design saving panel space and simplifying wiring.

Screw termination delivers secure and reliable electrical contacts. Conforms to EAC, cULus, and CSA standards providing assured product quality. Compatible with 1N4007 diode for enhanced circuit functionality. Easy mounting on NS 35/7.5 or NS 35/15 DIN rails.

Grey color coding enables organized and clear circuit management.

This Phoenix Contact terminal block is ideal for industrial automation, electrical panels, manufacturing, and electrical control applications requiring robust and safe electrical connections. Explore more Phoenix Contact terminal blocks and related industrial electrical products on EnvMart.
