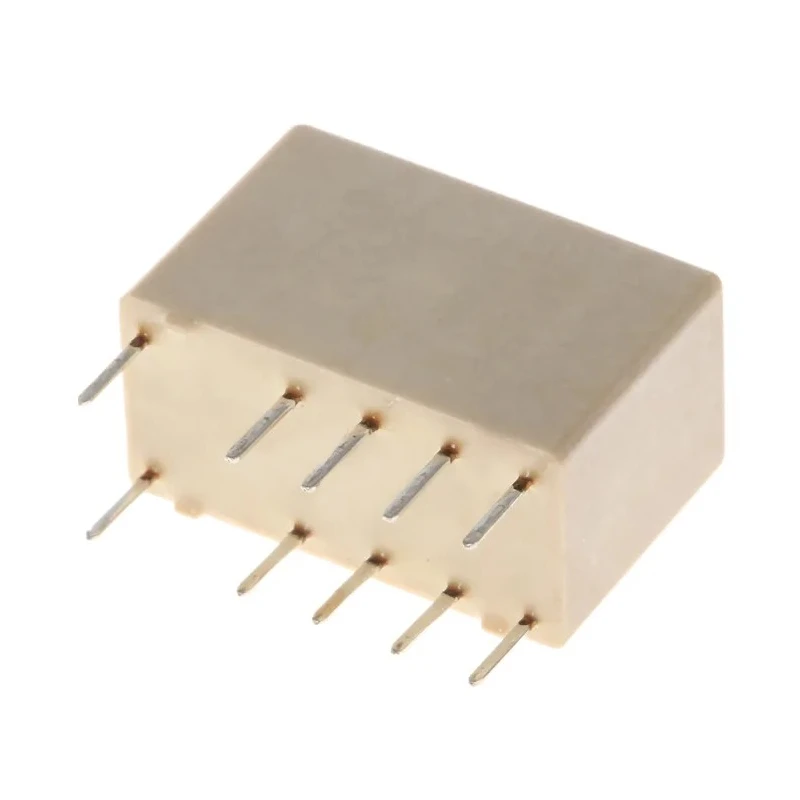

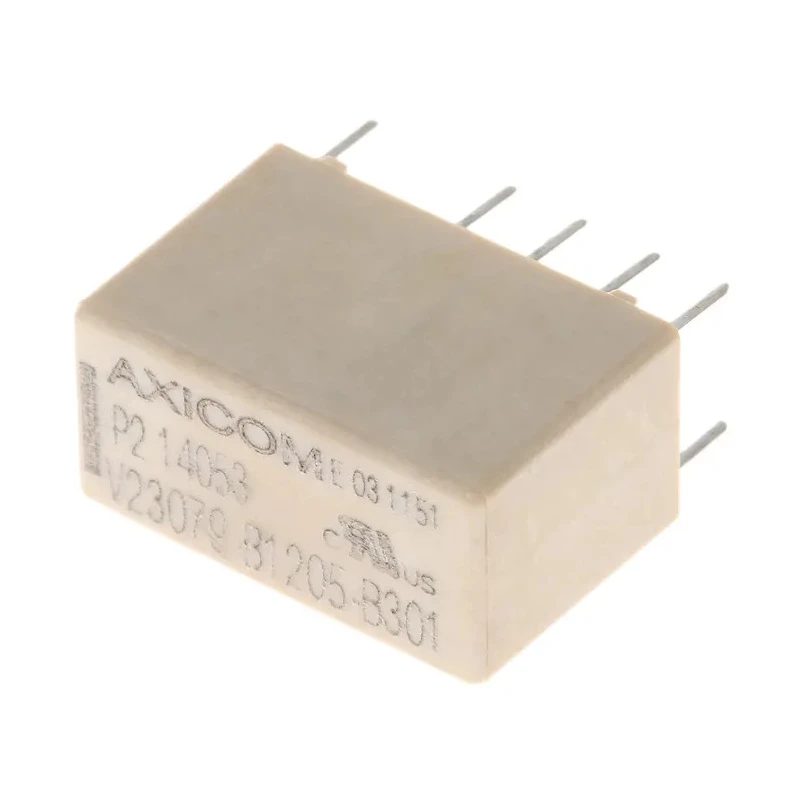

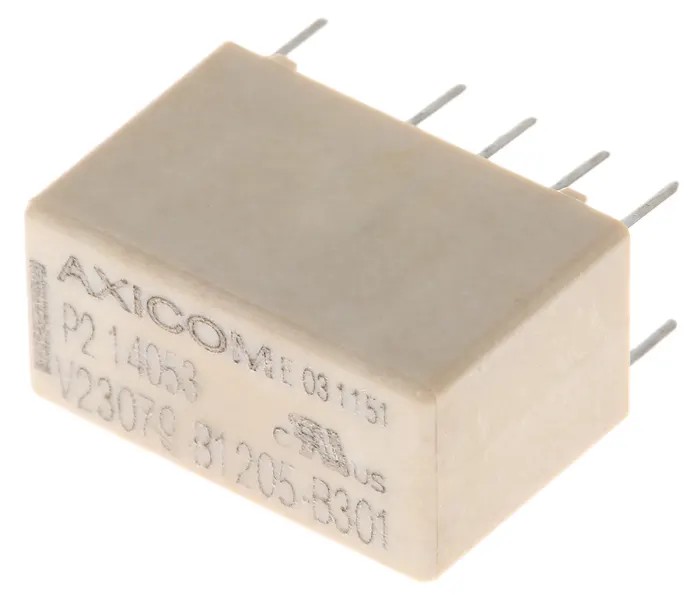

TE Connectivity PCB Signal Relay 24V DC Coil 2A DPDT Axicom Series V23079B1205B301
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079B1205B301 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 4114Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
Key Features
- This relay features a compact design ideal for PCB mounting applications.
- It operates over a wide temperature range from -40°C to 85°C.
- The contact material is gold plated for enhanced conductivity and durability.
- The coil resistance is 4114 ohms with low power consumption of 140mW.
- Designed to meet RoHS standards, ensuring environmental compliance.
- The switching voltage capability includes 250V AC and 220V DC.

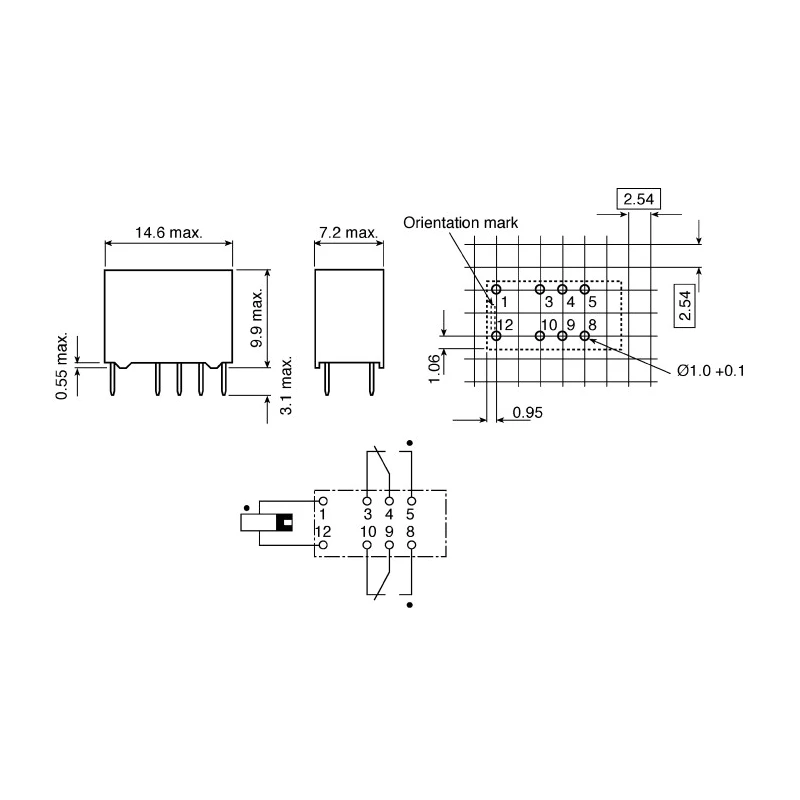

- Its miniature size with dimensions 14.5 mm length, 9.8 mm height, and 7.2 mm width suits space-constrained electronic designs.
- The relay is immersion cleanable and has an IP67 rating for protection against dust and water.
Product Description
TE Connectivity V23079B1205B301 PCB Signal Relay is a miniature, low power, and high sensitivity relay designed for signal switching with a 24V DC coil and a 2A switching current. This DPDT relay from the Axicom series offers a compact and slim form factor, ideal for printed circuit board (PCB) mounting.
The relay features gold plated bifurcated contacts for reliable electrical performance and durability. With a coil resistance of 4114 ohms and coil power of 140mW, it ensures efficient energy consumption. It complies with RoHS environmental standards and has an IP67 rating for immersion cleaning, making it suitable for harsh environments.
Designed to operate within a temperature range of -40°C to 85°C, this relay supports switching voltages of up to 250V AC and 220V DC. Its physical dimensions of 14.5 mm length, 9.8 mm height, and 7.2 mm width enable installation in space-limited electronic and telecommunications equipment.
Typical applications include use in communications equipment such as PABX and VOIP systems, consumer electronics like set top boxes and HiFi components, office and control equipment, medical devices, and automotive systems requiring reliable signal relays.
The product is manufactured in the Czech Republic, ensuring quality and precision. This relay series meets surge capability standards of Telcordia TR-NWT-001089 and IEC 60950, providing robustness against electrical surges and spikes. Its solder terminal type also facilitates secure PCB connections.
This relay provides two pole polarized telecom and Signal Relay capability. Gold plated contacts improve long-term reliability and signal integrity. Its slim profile supports space-saving electronic designs. Compliance with relevant industry standards assures quality and environmental safety.
Suitable for demanding industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It has a maximum switching current of 2A.
The relay measures 14.5 mm in length, 9.8 mm in height, and 7.2 mm in width.
This unit features a DPDT (Double Pole Double Throw) contact configuration.
It operates within a temperature range of -40°C to 85°C.
The contact material is gold plated, which enhances conductivity and durability.
It can switch voltages up to 250V AC and 220V DC.
The coil resistance is 4114 ohms.
The coil power consumption is 140mW.
Yes, this relay is designed for PCB mounting applications.
It complies with RoHS standards, ensuring environmental safety.
The relay is manufactured in the Czech Republic.
