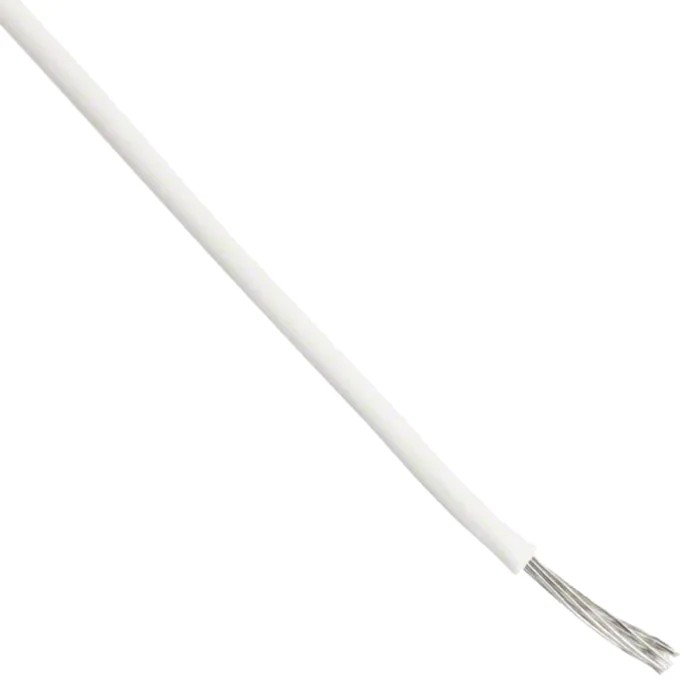

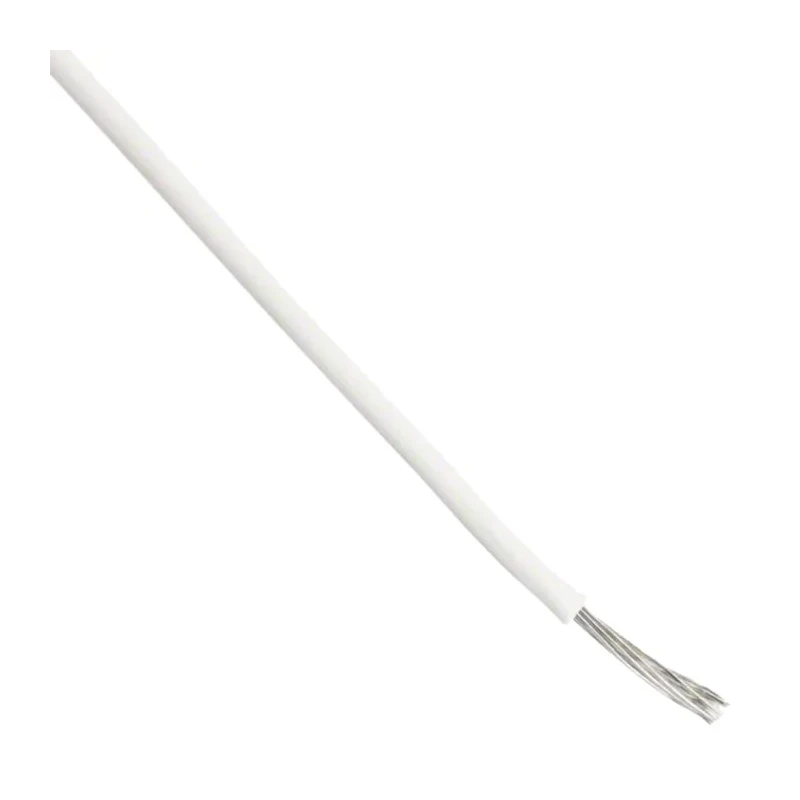

Alpha Wire Hook Up Wire PVC Series White, 24 AWG, 7/0.20 mm Core Strands, 30 m Length, Polyvinyl Chloride Jacket 7054 WH005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Alpha Wire |
| Model | 7054 WH005 |
| Cable Length | 30m |
| Series | Hookup Wire PVC |
| Outside diameter | 1.12mm |
| Maximum Operating Temperature | 80°C |
| Conductor Material | Copper |
| Sub Type | 7054 Hookup Wire |
| Cable Type | Hookup |
| Minimum Operating Temperature | -55°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | UL Listed |
| Jacket Colour | White |
| Fire Behaviour | Flammability Test: VW-1 |
| American Wire Gauge | 24AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Fire Behaviour Flammability Test | VW-1 |
| RS PRO White 0.2 mm² Hook Up Wire, 24 AWG, 7/0.2 mm, 100m, XLPVC InsulationBrand | RS PRO |
Key Features
- Rated for 150V operating voltage and a maximum temperature of 80°C.
- The white PVC jacket offers abrasion resistance and soldering iron heat resistance.
- Suitable for low voltage, low current electronic applications and high-density wiring.
- UL listed with MIL-SPEC and CSA approvals for demanding environments.
- Ideal for control cabinets, machine tools, transformers, and military devices.
- 30 meters cable length with a 1.12 mm outside diameter for versatile wiring needs.
- Color-coded insulation helps with easy circuit identification and wiring management.
Product Description
Alpha Wire 7054 WH005 Hook Up Wire PVC Series White is a specialized electrical wire designed for electronics and industrial applications requiring reliable, low voltage wiring solutions. This 24 AWG wire features seven 0.20 mm tinned copper strands for enhanced conductivity and flexibility. The irradiated polyvinyl chloride insulation ensures excellent resistance to solder iron heat, abrasion, and corrosive elements, making it suitable for harsh operating conditions.
The wire is rated for operation at voltages up to 150V and can withstand temperatures from -55°C up to a maximum of 80°C, supporting a wide temperature range for diverse industrial environments. With a compact outside diameter of 1.12 mm and a 30-meter length, the wire offers precise wiring capability in control cabinets, electronic equipment, and tight spaces.
This product complies with important safety standards including UL listing, MIL-W-16878E TYPE B military specifications, CSA approvals, and a flammability test rating of VW-1, confirming its suitability for demanding electronic and military applications. It is flame resistant and designed to maintain uniformity and low fray during handling, stripping, and termination processes.
The white color-coded PVC jacket simplifies circuit identification and wiring layouts, improving installation accuracy and maintenance. Applications include control systems, industrial machinery wiring, high-temperature ovens, off-road construction equipment, transformers, switchboards, and military-grade electronic devices.
Rated voltage: 150V for safe electrical operation in low voltage environments. Maximum operating temperature of 80°C enables use in elevated heat scenarios. Irradiated PVC insulation offers soldering iron and corrosion resistance.
Seven 0.20 mm stranded copper cores balance flexibility and conductivity. UL Listed and MIL-SPEC certified for safety and performance compliance. 30 m cable length with 1.12 mm diameter suitable for versatile wiring needs.
Color-coded insulation facilitates circuit management and troubleshooting.
This high-quality Hook Up Wire from Alpha Wire is ideal for industrial, laboratory, construction, HVAC, and military electrical applications requiring durable, compliant, and heat resistant wiring solutions. Explore more in our Wires & Cables category at EnvMart for comprehensive electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this hook-up wire is 80°C.
This model is rated for operation at voltages up to 150V.
The wire has a length of 30 meters.
The outside diameter of this wire is 1.12 mm.
This wire features seven strands of 0.20 mm tinned copper.
The wire uses irradiated polyvinyl chloride (PVC) insulation, which provides resistance to solder iron heat and abrasion.
Yes, this wire is UL listed and complies with MIL-SPEC and CSA approvals for demanding environments.
This hook-up wire is suitable for applications such as control cabinets, industrial machinery wiring, and military devices.
The minimum operating temperature for this wire is -55°C.
The jacket of this wire is white, which helps with circuit identification and wiring management.
The conductor material used in this wire is copper.
The wire has a flammability test rating of VW-1, indicating its flame resistance.
