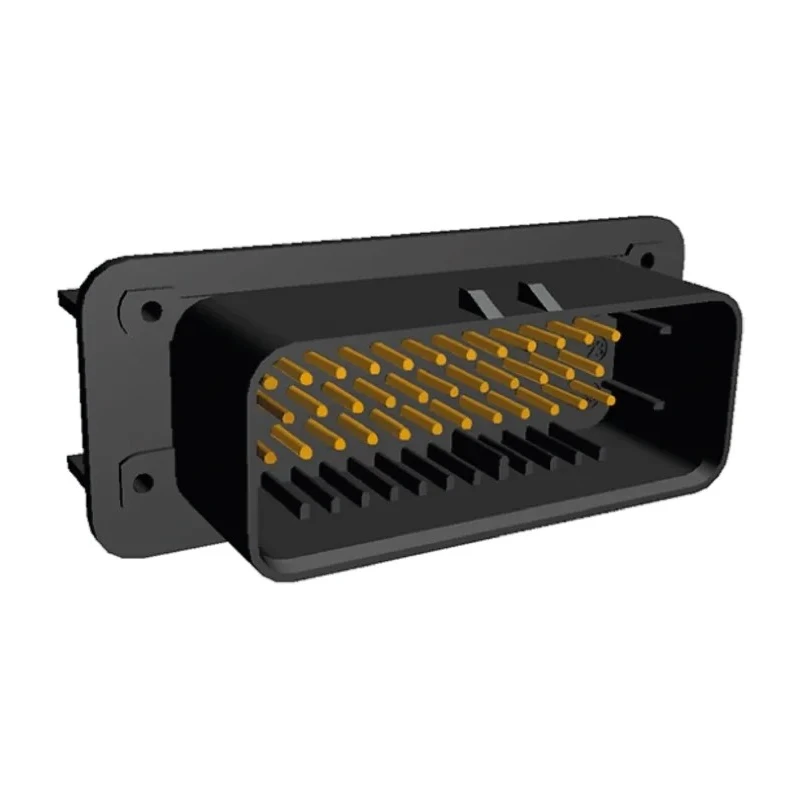

TE Connectivity Ampseal Automotive Male Panel Mount Connector 35 Way Solder Termination 11A 1-776180-1

TE Connectivity 1-776180-1 Ampseal Automotive Connector Male, panel mount type, is engineered for high-performance automotive and industrial electronic systems. This 35-way connector is fabricated from a fibreglass reinforced polybutylene terephthalate housing to ensure robustness in harsh environments. Featuring brass contacts plated in gold, it offers excellent electrical conductivity and durability under demanding conditions.

Rated for a continuous operating current of 11 amperes and capable of operating within a temperature range from -40 degrees Celsius up to 125 degrees Celsius, this connector withstands extreme thermal variations commonly seen in vehicle electronics and industrial equipment.

Its design includes three rows of contacts with solder termination, enabling secure and durable connections to PCBs. The panel mount configuration ensures stable mechanical attachment to equipment housings, supporting reliable long-term operation.

With an ingress protection rating of IP6K7, the connector resists dust ingress and temporary immersion in water, making it highly suitable for outdoor and automotive environments subject to contaminants and moisture. The compact form factor measures 76.9 mm in width, 32.1 mm in height, and 37.9 mm in depth, facilitating integration into constrained spaces.

The black color and standardized 1.3 mm contact diameter comply with industry norms, simplifying replacement and compatibility with AMPSEAL series connectors. This product supports a wide range of automotive, manufacturing, and electronic assembly applications demanding reliable electrical connectivity.

Robust fibreglass reinforced polybutylene terephthalate housing. Gold-plated brass contacts providing high conductivity and corrosion resistance. 11 Amp current rating for automotive electrical power circuits. Wide temperature tolerance from -40°C to 125°C ensures device reliability.

Panel mount style with solder termination for secure PCB connection. IP6K7 rated dust and water protection for harsh environments. Compact dimensions and 35-way contact configuration optimize space usage. 3 rows of contacts with 1.3 mm diameter standard size.

Black housing color suitable for professional automotive installations. Compatible with AMPSEAL Automotive Connector series.

Ideal for automotive electrical systems, industrial manufacturing equipment, and electronic power distribution assemblies, the TE Connectivity AMPSEAL 1-776180-1 ensures long-lasting, stable interfaces.
