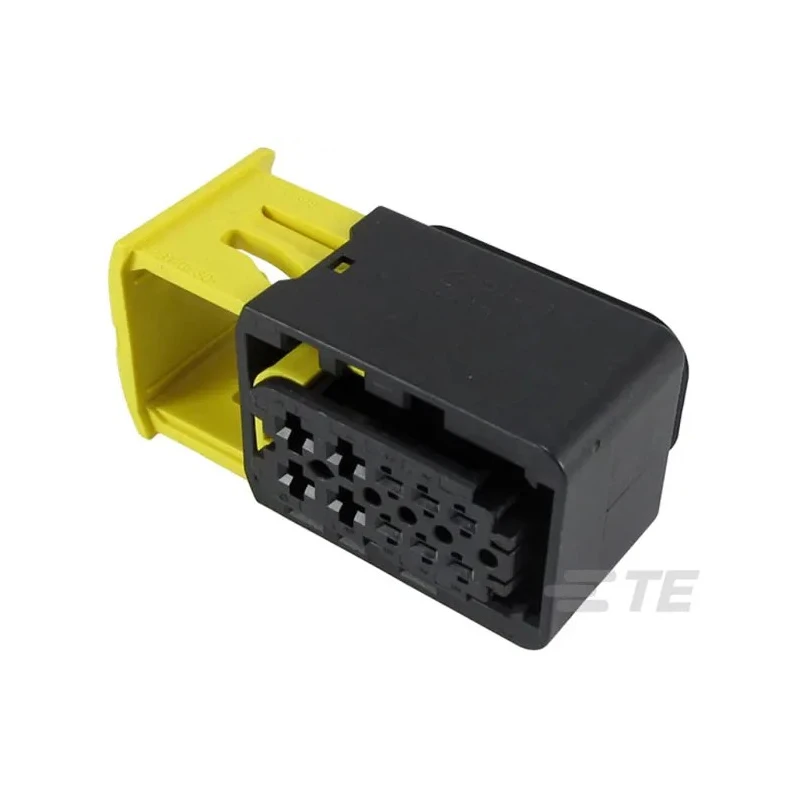

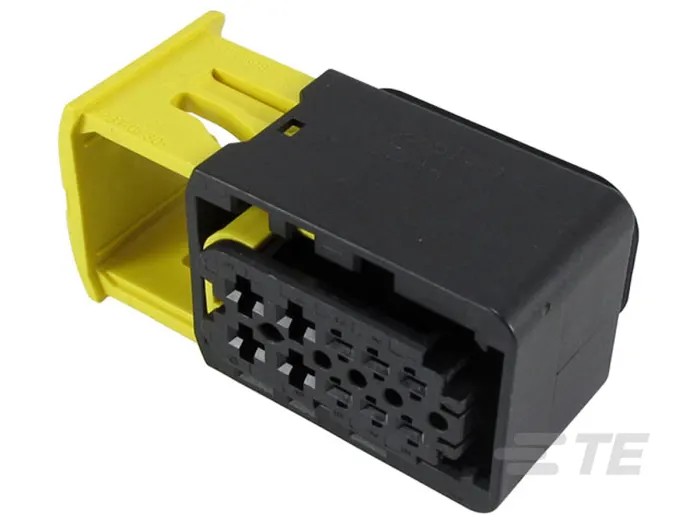

TE Connectivity HDSCS Automotive Connector Female Black Cable 10 Way Crimp Termination 1-1564514-1

TE Connectivity 1-1564514-1 is a female automotive connector from the HDSCS series designed for heavy-duty cable applications requiring reliable and secure electrical connections. It features a receptacle housing constructed from fibreglass reinforced polybutylene terephthalate, ensuring mechanical strength and resistance to environmental factors. The connector supports 10 contacts arranged in 2 rows to carry electrical currents of 20 and 40 amps, making it suitable for a range of automotive electrical systems.

The termination type is crimp, facilitating secure attachment to cables without soldering. This connector is mounted directly onto cables and includes a slide lock mechanism to ensure correct and firm mating with compatible counterparts. It does not include a cord, focusing solely on connector functionality.

Designed to withstand demanding conditions, the connector operates efficiently within a temperature range from -40°C up to 140°C. Its ingress protection ratings of IP67 and IP6K9K certify it against dust ingress and high-pressure water jets, making it ideal for automotive environments exposed to weather and contaminants.

The contact plating uses tin to provide reliable electrical contact and corrosion resistance, further enhancing connector longevity. The housing's black color helps visually identify the connector within wiring assemblies.

Compact in size, the connector measures 39.2mm in width, 25.7mm in height, and 31.3mm in depth, allowing for installation in tight spaces typical of automotive applications. Compliance with EU ELV and EU RoHS standards ensures the product meets relevant environmental and safety regulations within the automotive industry.

This TE Connectivity HDSCS connector is suitable for automotive, industrial, and manufacturing applications requiring durable, high-current capacity connectors with proven environmental sealing. Its robust design assures secure and stable electrical connections critical for vehicle safety and performance.

The connector features 10 contacts arranged in 2 rows. It has a female gender receptacle housing suitable for crimp termination. Rated for electrical currents of 20 and 40 amps for robust performance. Construction uses fibreglass reinforced polybutylene terephthalate for housing durability.

Contact plating is tin to ensure reliable conductivity and corrosion resistance. It mounts directly to cable and includes a slide lock for secure mating. Operating temperature ranges from -40°C to 140°C, supporting harsh environments.

Ingress protection is IP67 and IP6K9K certified, ensuring excellent sealing. Dimensions are compact: width 39.2mm, height 25.7mm, depth 31.3mm. Meets EU ELV and EU RoHS standards for safety and environmental compliance.
