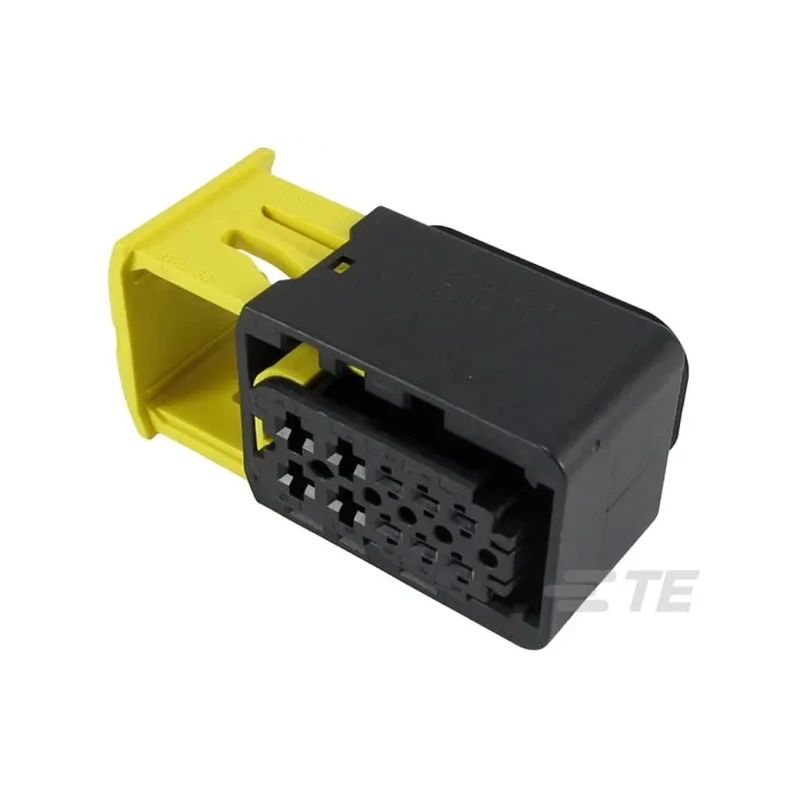

TE Connectivity HDSCS Automotive Connector Female Black Cable 10 Way Crimp Termination 1-1564514-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 20, 40A |
| Height | 25.7mm |
| Depth | 31.3mm |
| IP Rating | IP67, IP6K9K |
| Width | 39.2mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | HDSCS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | Receptacle Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 10 |
Key Features
- Designed for heavy-duty automotive use with IP67 and IP6K9K environmental protection ratings.
- Accommodates 10-way crimp termination in a black fibreglass reinforced polybutylene terephthalate housing.
- Supports up to 40 amps current with two rows of tin-plated contacts.
- Operates reliably from -40°C to 140°C temperature range.
- Features slide lock mating mechanism for secure connections.
- Suitable for cable-to-cable and cable-to-device interfaces.
- Certified compliant with EU ELV and EU RoHS standards.
Product Description
TE Connectivity 1-1564514-1 is a high-performance HDSCS automotive connector featuring a female receptacle housing designed for 10-way crimp terminations. The connector’s rugged black housing is made from fibreglass reinforced polybutylene terephthalate, providing excellent durability and environmental resistance, meeting IP67 and IP6K9K ratings. Suitable for automotive and industrial electrical applications, these connectors facilitate secure and reliable cable-to-cable and cable-to-device connections.
The durable slide lock mechanism ensures secure mating and reliable electrical contact. This connector accepts AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts plated with tin for corrosion resistance and optimized conductivity. Rated for currents up to 40 amps, it is designed to operate efficiently in harsh environments with operating temperatures ranging from -40°C to 140°C.
With a compact footprint of 39.2mm width, 31.3mm depth, and 25.7mm height, this connector fits seamlessly into automotive wiring harnesses and other demanding electronic systems. It complies with EU ELV and RoHS environmental standards, ensuring safe and compliant use in automotive electrical assemblies.
Heavy-duty female automotive connector with robust crimp termination. 10 contacts arranged in two rows supporting high current loads. Slide lock mechanism enhances connection security and reliability. Housing material provides mechanical strength and environmental sealing.
Wide operating temperature range for diverse applications. Corrosion-resistant tin-plated contacts for longevity. Complies with major EU environmental and safety standards. Compact and lightweight design optimized for automotive use.
This TE Connectivity HDSCS connector is ideal for automotive, industrial, and commercial electrical harness applications requiring durable, high-current, environmentally protected connections. For additional related components and connectors, explore the Automotive Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports up to 40 amps of current.
The connector has a width of 39.2mm, depth of 31.3mm, and height of 25.7mm.
It operates reliably within a temperature range of -40°C to 140°C.
This model features a crimp termination type.
It is rated IP67 and IP6K9K for environmental protection.
The housing is made from fibreglass reinforced polybutylene terephthalate.
This connector accommodates 10 contacts arranged in two rows.
Yes, it is certified compliant with EU ELV and EU RoHS standards.
It is suitable for cable-to-cable and cable-to-device interfaces.
It features a slide lock mating mechanism to ensure secure connections.
This connector is a female type.
The contacts are plated with tin for corrosion resistance and optimized conductivity.
