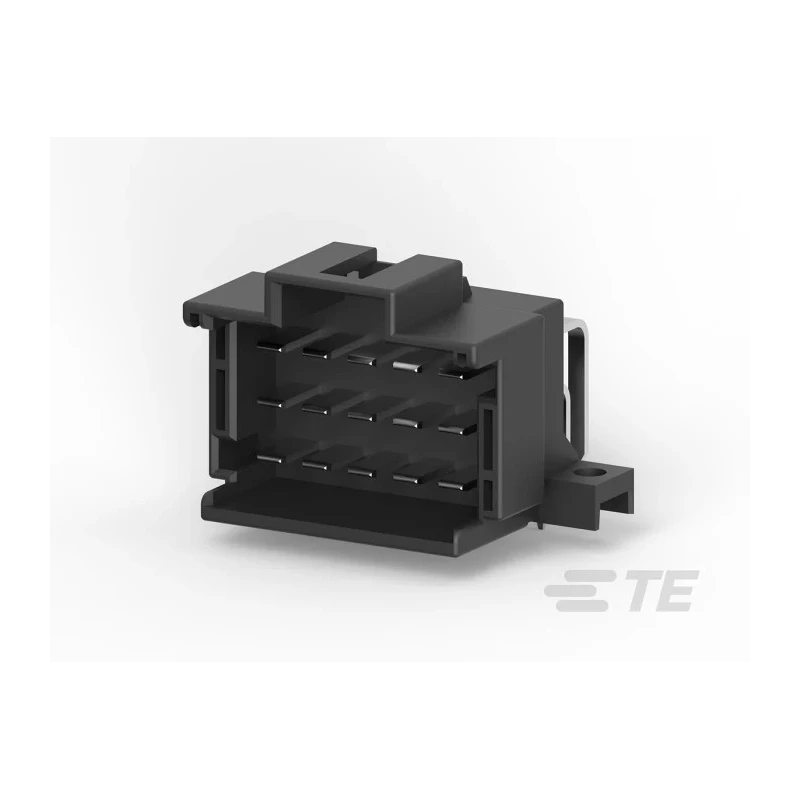

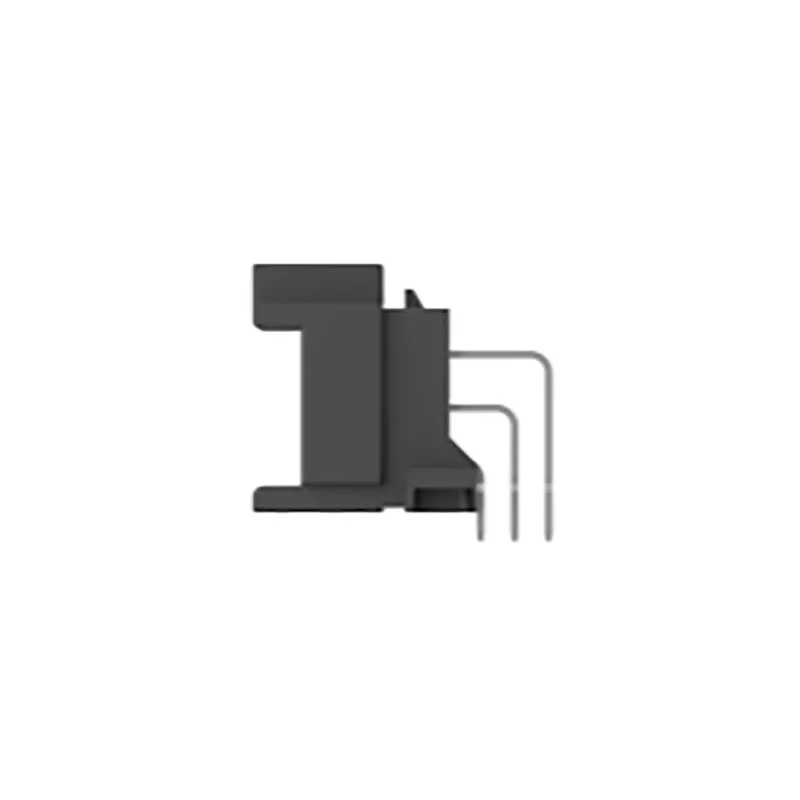

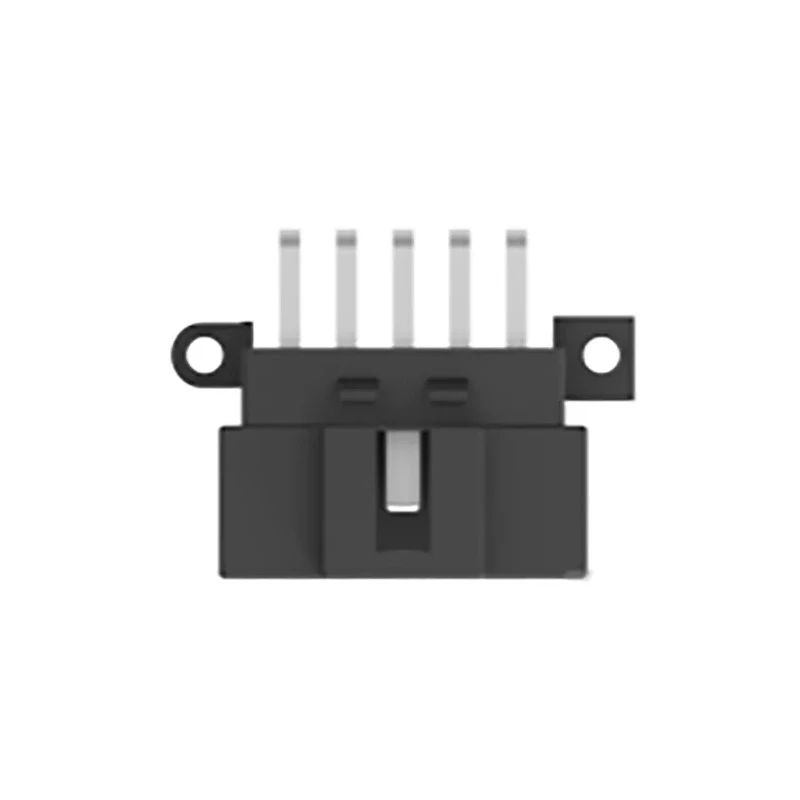

TE Connectivity Heavy Duty Sealed Automotive Connector Male Black PCB 15 Way Solder Termination 9-966140-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 25.7mm |
| Depth | 20.3mm |
| Width | 32.5mm |
| Gender | Male |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | Heavy Duty Sealed Connector |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Sub Type | Header |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Standards/Approvals | UL 94HB, RoHS, REACH |
| Contact Plating | Tin |
| Number of Contacts | 15 |
Key Features
- Constructed with polyamide housing and tin-plated contacts.
- Features 15 contacts arranged in 3 rows.
- Operates reliably within -40°C to 100°C temperature range.
- Complies with UL 94HB, RoHS, and REACH standards.
- Designed for automotive and industrial PCB applications requiring robust sealing.
- Black color housing provides durability and aesthetic integration.
- Solder termination ensures secure electrical connection.
- Ergonomic form factor with compact dimensions.
Product Description
TE Connectivity 9-966140-2 is a heavy duty sealed Automotive Connector designed for secure PCB mounting. With 15 solder termination contacts organized in three rows, this male connector supports robust electrical connections in automotive and industrial electronic systems. Featuring a durable polyamide housing and tin contact plating, it delivers reliable performance under extreme environmental conditions.
The connector is engineered to operate efficiently between -40°C to 100°C, complying with industry standards including UL 94HB, RoHS, and REACH, ensuring safety and environmental compliance. Its compact dimensions of 32.5mm width, 20.3mm depth, and 25.7mm height make it suitable for space-constrained PCB assemblies.
This TE Connectivity model enhances circuit reliability in vehicles by providing a sealed interface that resists dust, moisture, and mechanical stress. Its black color housing contributes to easy visual identification and integration in assembly lines.
Polyamide housing provides mechanical strength and heat resistance. Tinned contacts optimize corrosion resistance and conductivity. Solder termination type guarantees a secure, lasting connection with PCB pads. Designed for use in automotive electrical connectors requiring heavy duty sealing.
Compliance with RoHS and REACH ensures environmental safety. Operates across a broad temperature range suitable for automotive environments. Compact size enables efficient PCB layout without sacrificing connectivity quality.
This connector is ideal for applications in automotive electronics, industrial machinery, and demanding environments requiring sealed, reliable electrical connections on printed circuit boards.
Explore more TE Connectivity automotive and industrial connectors at EnvMart for quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 100°C.
This model features 15 contacts arranged in three rows.
The housing is constructed from polyamide, providing mechanical strength and heat resistance.
It uses a solder termination type, ensuring a secure electrical connection with PCB pads.
The dimensions of this connector are 32.5mm in width, 20.3mm in depth, and 25.7mm in height.
It complies with UL 94HB, RoHS, and REACH standards, ensuring safety and environmental compliance.
The minimum operating temperature for this connector is -40°C.
The housing is black, which aids in visual identification and integration in assembly lines.
It is designed for automotive and industrial PCB applications requiring robust sealing and reliable electrical connections.
This connector is designed for PCB mounting, making it suitable for space-constrained assemblies.
The contacts are tin-plated, which optimizes corrosion resistance and conductivity.
The connector is manufactured in India.
