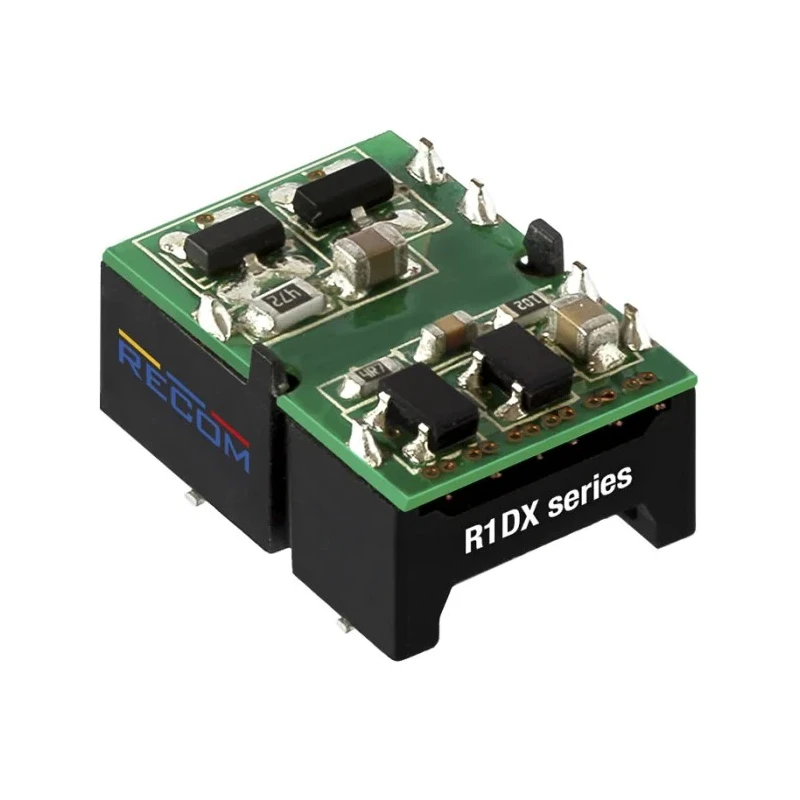

Recom 1W Surface Mount DC/DC Converter Dual Output 5V DC Input, 100mA Output R1DX
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom R1DX DC/DC Converter, 5V dc/ 100 mA, 5V dc I |
| Brand | Recom |
| Efficiency | 78% |
| Length | 15.24mm |
| Model | R1DX |
| Depth | 8mm |
| Width | 11.1mm |
| Mount Type | Surface |
| Series | R1DX |
| Maximum Operating Temperature | 95°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 20900000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 3kV dc |
Key Features
- This converter supports a maximum output current of 100mA with two isolated outputs.
- It features a compact surface mount package suitable for space-saving PCB designs.
- The device operates efficiently at 78%, ensuring low power loss during conversion.
- It withstands a wide operating temperature range from -40°C to 95°C for reliable performance.
- Isolation voltage is rated at 3kV DC, enhancing safety and noise immunity.
- Designed for open-frame and low-profile applications requiring stable dual output voltage.
- MTBF is rated at 20.9 million hours, supporting long-term industrial use.
- Pin compatibility with R1D series at half the height facilitates easy design upgrades.
Product Description
Recom R1DX DC/DC Converter model offers a low cost, low profile solution delivering 1 watt power with dual isolated outputs. This surface mount device is designed to operate from a 5V DC input with a minimum input voltage of 4.5V, featuring two isolated output voltages of ±5V, ±9V, ±12V, or ±15V as per series specification.
The converter provides a maximum output current of 100mA with an efficiency of approximately 78%, enabling power-efficient voltage conversion for compact electronics. Its robust isolation voltage rating of 3kV DC ensures high immunity against electrical noise and potential safety hazards, making it suitable for demanding environments.
Operating temperature range is wide, from -40°C up to 95°C at full load without derating, validating its reliability for industrial, laboratory, and embedded power supply applications. The MTBF rating of 20.9 million hours reflects its high reliability and long operational lifespan.
The surface mount package measures 15.24mm in length, 11.1mm in width, and 8mm in depth, providing a compact footprint ideal for PCB integration where space is limited. The design is compatible with the R1D series pinout but comes at half the height, facilitating design flexibility.
Common use cases include industrial power supplies, embedded control systems, telecommunications equipment, instrumentation, and other electronics requiring isolated dual output voltages within a low-profile footprint.
This converter features a compact and robust open-frame SMD package. Supports dual output voltages with no minimum load requirement and low quiescent current consumption. High isolation voltage rating enhances safety in industrial environments.
Wide temperature range operation ensures reliability under varied conditions. Long MTBF enables usage in critical and continuous operation systems. Pin-compatible with R1D series for design adaptability. Efficient power conversion at 78% efficiency minimizes heat generation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 100mA.
It operates with an efficiency of approximately 78%.
This converter provides dual isolated output voltages of ±5V, ±9V, ±12V, or ±15V.
It operates efficiently within a temperature range of -40°C to 95°C without derating.
The isolation voltage is rated at 3kV DC, enhancing safety and noise immunity.
The surface mount package measures 15.24mm in length, 11.1mm in width, and 8mm in depth.
The mean time between failures (MTBF) is rated at 20.9 million hours.
It is pin-compatible with the R1D series but comes at half the height, making design upgrades easier.
Common applications include industrial power supplies, embedded control systems, and telecommunications equipment.
The minimum input voltage required is 4.5V DC.
This model features a surface mount design, suitable for compact PCB integration.
The maximum input voltage for this converter is 5V DC.
