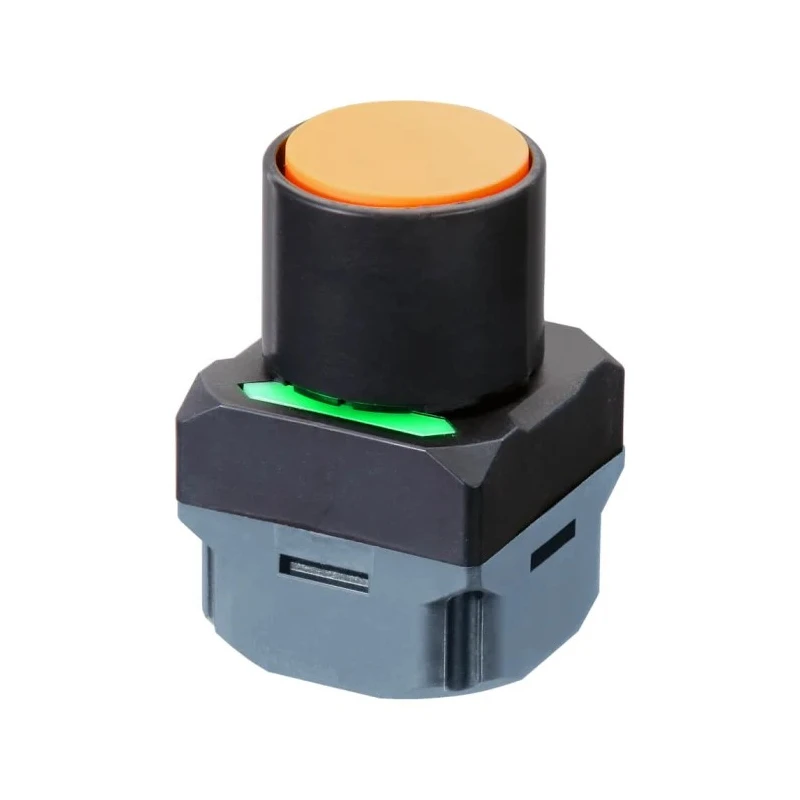

Omron Illuminated Push Button Complete Unit, Momentary Operation, 24 mm Cutout, Green Red Yellow LED, IP65 A2W-TB-WC1 EU2BY

Omron A2W-TB-WC1 EU2BY Illuminated Push Button Complete Unit is a wireless, momentary push button switch designed for industrial and automation use with a 24 mm cutout size and multicolor LED indicators (green, red, yellow) operating at 24 V DC.

The switch features a black actuator and complies with IP65 rating, ensuring dust-tight and water-resistant operation suitable for demanding environments. It operates reliably within the temperature range of -10°C to +55°C and has a switch contact current rating of 50 mA. The device dimensions are compact with a length and height of 65 mm and a width of 42 mm, facilitating easy panel installation.

This wireless push button eliminates the need for batteries by generating its own power from the button press, enhancing maintenance friendliness. Each receiver can assign up to eight pushbuttons, each with up to eight transistor outputs for diverse control requirements. The switch operates on the 922.5 MHz sub-GHz frequency band, minimizing interference and ensuring a stable wireless connection even in obstructed locations. Options like high-sensitivity magnetic-base antennas are available to improve signal reception in control panels.

Typical use cases include signaling ON/OFF notifications such as calling a supervisor, indicating missing items, or completion of tasks. It can also control automated guided vehicles (AGVs), instruct manned vehicles, or control machine operations such as opening or closing doors and shutters.

Conformance to international standards such as EN 300 220-1/-2, EN 301 489-1/-3, IEC 62368-1 provides assurance of safety, electromagnetic compatibility, and quality in industrial environments.

The push button provides wireless reliability with easy usability for industrial and automation applications. Eliminates battery requirement by self-generating power upon actuation. Multi-color LED indicators enhance visual status monitoring on the device.

High IP65 rating for protection against dust and water ingress. Supports multiple button to receiver assignments with transistor output flexibility. Compact size and versatile mounting options simplify integration into control panels.

Wide operating temperature range suits various industrial environments. Compliance with industry standards ensures durability and safety. Discover this and other high-quality push button solutions in Omron's range at EnvMart, where industrial and automation components meet rigorous quality standards.
