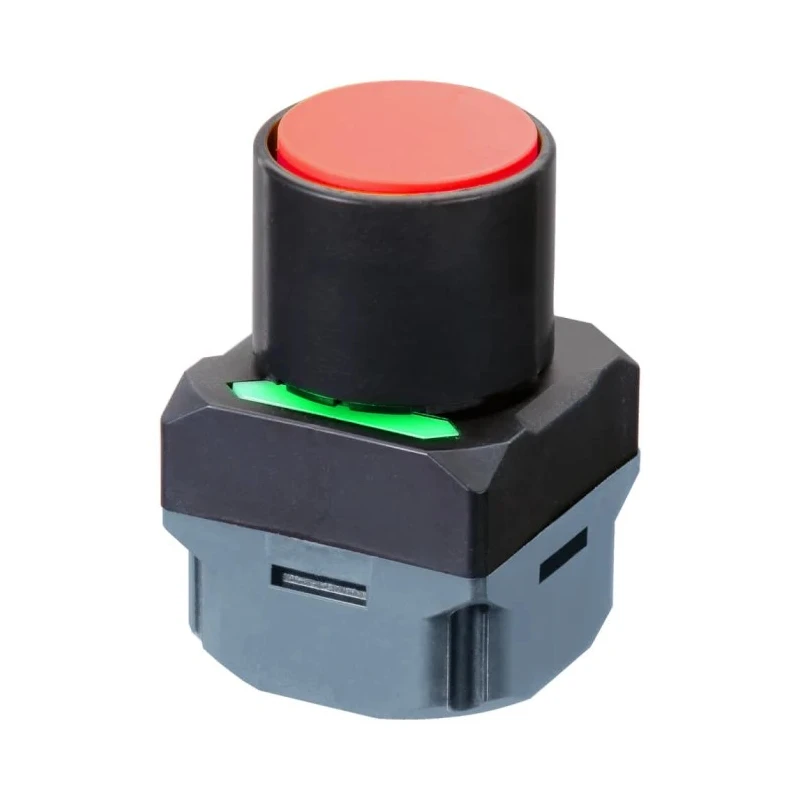

Omron Illuminated Push Button Complete Unit Panel Mount 40 mm Cutout Wireless Momentary Switch with Green A2W-TB-WC1 EU2BR

Omron A2W-TB-WC1 EU2BR is an illuminated push button complete unit designed for panel mounting with a 40 mm cutout size. It is a momentary switch with a black actuator color, equipped with green, red, and yellow LEDs for clear visual feedback. This wireless switch uses the sub-GHz frequency band to achieve reliable communication without batteries, thanks to self-generated power from button operation.

Its IP65 rating ensures robust protection against dust and water ingress, making it ideal for industrial environments such as manufacturing, automation, and control panel applications. The unit supports 24 V DC contact voltage and can handle a switch contact current of 50 mA, suitable for a wide range of signaling and control use cases.

The push button's wireless functionality allows up to eight pushbuttons to be assigned to a single receiver unit, with transistor outputs for one-shot operation. Multiple outputs can be triggered from a single pushbutton, enhancing versatility in complex control systems. Installation options include a high-sensitivity magnetic-base antenna for enhanced receiver placement inside control panels.

Key applications include notifying operational statuses such as on/off signals, calling supervisors, indicating missing items, or instructing automated guided vehicles and manned vehicles in warehouse and material handling scenarios. It also facilitates machine control like stopping or opening/closing doors.

The actuator color is black, providing clear tactile feedback. Wireless terminal type eliminates the need for wiring complexity. High ingress protection rating of IP65 ensures dust and water resistance. Compatible with 24 V DC contact voltage and supports a switch contact current of 50 mA.

Operating temperature range from -10°C to 55°C for versatile industrial environments. Compact dimensions of 42 mm length, 42 mm width, and 65 mm height. Complies with EN 300 220-1/-2, EN 301 489-1/-3, IEC 62368-1, and EN 62368-1 standards.

Ideal for industrial wireless communication signaling applications.

This Omron A2W Series illuminated push button complete unit, model A2W-TB-WC1 EU2BR, delivers reliable and flexible operation in industrial, manufacturing, automation, and control environments. Browse other Push Button Complete Units in the Electronics & Electricals category on EnvMart for complementary products.
