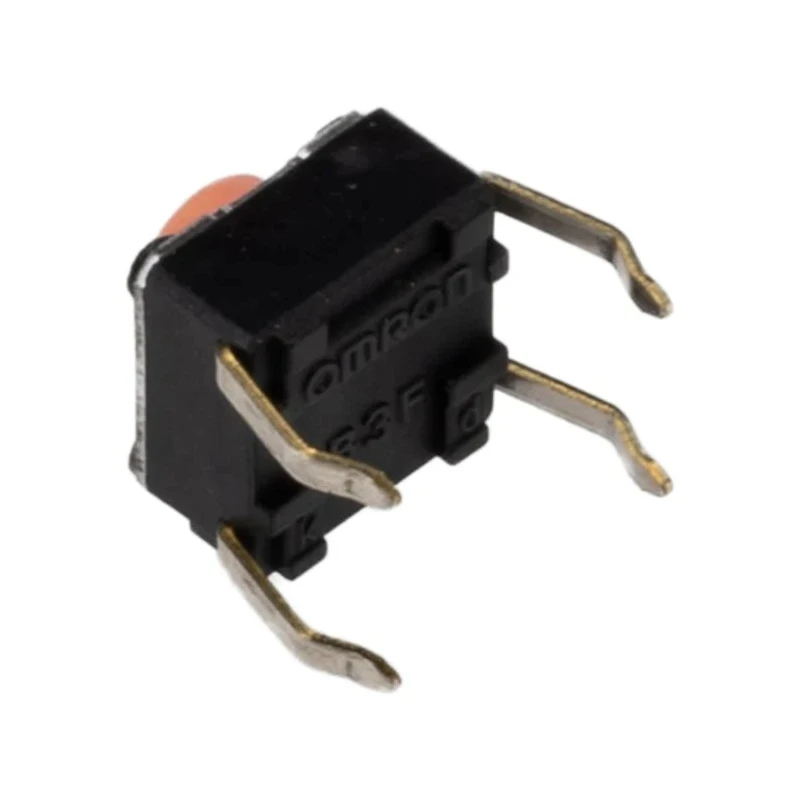

TE Connectivity Aratas IP00 Pink Tactile Switch Plunger 0.9 mm SPST 50mA 24 V dc Through Hole B3F-1025
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Height | 5mm |
| Length | 6mm |
| Model | B3F-1025 |
| IP Rating | IP00 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Actuator Colour | Pink |
| Actuator Length | 0.9mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 50mA |
| Operating Force | 2.55N |
| Mechanical Life | 1000000Operations |
Key Features
- Compact 6 mm x 6 mm size ideal for various electronic devices.
- Durable plunger actuator with pink color for visual identification.
- Operates with 2.55N force ensuring tactile feedback with positive click action.
- Rated for 1,000,000 mechanical operations providing long life span.
- Temperature range from -25°C to 70°C for diverse operating environments.
- Meets RoHS standards for environmental compliance.
- Non-illuminated switch with IP00 ingress protection rating.
- Manufactured in Japan ensuring quality and reliability.
Product Description
Omron B3F-1025 tactile switch with a pink plunger actuator and 0.9 mm stroke length is designed for reliable switching applications in electronics. This SPST switch is rated for 50mA at 24 V dc and features a through-hole mount for easy PCB installation. The compact footprint of 6 mm by 6 mm makes it suitable for densely packed boards used in audio equipment, measuring instruments, communications devices, and consumer electronics. The switch delivers a positive tactile click feedback with an operating force of 2.55N, promoting intuitive user interaction.
Its mechanical life extends up to one million operations, ensuring durability in continuous-use industrial, laboratory, and consumer applications. The operating temperature range from -25°C to 70°C allows functionality in varied environments without performance degradation. Conformance to RoHS standards supports environmentally safe manufacturing practices.
With no illumination and an IP00 ingress protection rating, this switch is best suited for internal electronic environments where dust and liquid protection is less critical. Made in Japan, the product guarantees high-quality manufacturing standards. Ideal for use in industrial automation, instrumentation, audio and office equipment, it integrates seamlessly to enhance product control interfaces.
Compact 6 mm x 6 mm tactile switch body size. Plunger actuator of pink color with 0.9 mm travel. SPST contact configuration suitable for simple ON/OFF operations. Through-hole mounting type for PCB installation. Rated contact current of 50mA at 24 V dc ensures low power circuit switching.
Mechanical life of 1,000,000 operations providing extended reliability. Operating temperature range: -25°C to +70°C for versatile use. Compliant with RoHS for environmentally safe design.
Explore a broad range of Tactile Switches and related components in the Electronics & Electricals catalog on EnvMart for industrial, automation, and electronics manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Single Throw (SPST) contact configuration, suitable for simple ON/OFF operations.
This model has a mechanical life rated for up to 1,000,000 operations, ensuring extended reliability in various applications.
The operating temperature range for this tactile switch is from -25°C to +70°C, allowing it to function in diverse environments.
The dimensions of the switch are 6 mm in length and width, with a height of 5 mm, making it compact for various electronic devices.
This switch is rated for a contact current of 50mA at a voltage of 24V dc, suitable for low power circuit switching.
It features a through-hole mounting type, designed for easy installation on printed circuit boards (PCBs).
The switch operates with a force of 2.55N, providing tactile feedback with a positive click action.
The actuator of this tactile switch is colored pink for visual identification, enhancing user interaction.
Yes, it meets RoHS standards for environmental compliance, supporting environmentally safe manufacturing practices.
The B3F-1025 has an IP00 ingress protection rating, indicating it is not protected against dust and liquid.
This model is manufactured in Japan, ensuring adherence to high manufacturing standards.
It is ideal for use in industrial automation, instrumentation, audio and office equipment, enhancing product control interfaces.
