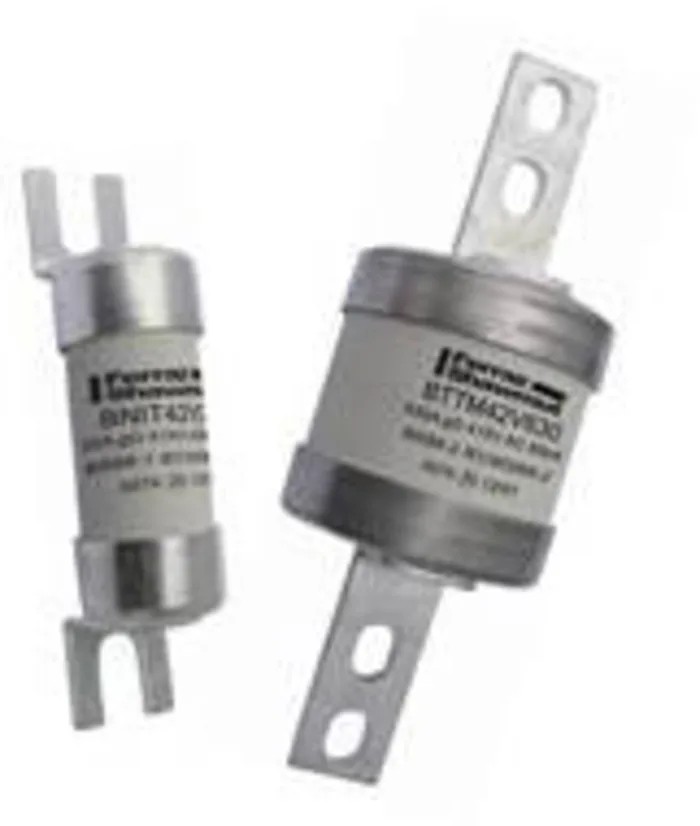

Mersen 500A Bolted Tag Fuse C2 690V AC Central Bolted Tag Fuse-links gG 133 mm BTTM69V500 Z1006640 / BTTM69V500
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 690V ac |
| Diameter | 74.4mm |
| Brand | Mersen |
| Height | 83mm |
| Length | 83mm |
| Model | Z1006640 / BTTM69V500 |
| Width | 74.4mm |
| Overall Length | 212mm |
| Current Rating | 500A |
| Series | Central Bolted Tag Fuse-links gG 690VAC |
| Standards/Approvals | CE, REACH, EN 60269-2, RoHS |
| Fuse Size | C2 |
| Fixing Centres | 133 mm |
| Tag Width | 26mm |
| Tag Orientation | Centred |
Key Features
- Rated at 500A for high current applications.
- Fuse size C2 with a voltage rating of 690V AC.
- Bolted design suitable for connection on fuseholders or busbars.
- Central bolted tag fuse-links of gG type for general and motor protection.
- Fixing centres measure 133 mm ensuring compatibility with standard installations.
- Tag width of 26 mm with a centred tag orientation for ease of mounting.
- Compact dimensions with length 83 mm, width 74.4 mm, and height 83 mm.
- Overall length of 212 mm and diameter of 74.4 mm for space-efficient use.
Product Description
Mersen BTTM69V500 500A Bolted Tag Fuse C2 690V AC is engineered for reliable general-purpose (gG type) and motor protection (gM type) in electrical circuits. Featuring a high current rating of 500A and a fuse size C2, this bolted tag fuse provides excellent current limitation for overload protection in diverse industrial, commercial, and manufacturing environments.
The fuse is designed for bolted connections onto fuseholders or direct busbar mounting, supported by fixing centres of 133 mm for a secure and stable installation. The central bolted tag fuse-links guarantee optimal operational reliability with a fuse speed rating of F, suitable for demanding electrical protection applications.
With dimensions optimized for industrial use, including an overall length of 212 mm, tag width of 26 mm, length and height of 83 mm, and a diameter and width of 74.4 mm, this fuse fits compactly into panel assemblies and switchgear. The tag orientation is centred for ease of access and connection.
Compliance with CE, REACH, EN 60269-2, and RoHS standards confirms this product’s adherence to stringent safety, environmental, and quality benchmarks. Originating from India, the Mersen BTTM69V500 ensures dependable performance for power distribution, motor control circuits, and general electrical protection tasks.
Rated at 500A for high current applications. Fuse size C2 with a voltage rating of 690V AC. Bolted design suitable for connection on fuseholders or busbars. Central bolted tag fuse-links of gG type for general and motor protection.
Fixing centres measure 133 mm ensuring compatibility with standard installations. Tag width of 26 mm with a centred tag orientation for ease of mounting. Compact dimensions with length 83 mm, width 74.4 mm, and height 83 mm.
Overall length of 212 mm and diameter of 74.4 mm for space-efficient use. Compliant with CE, REACH, EN 60269-2, and RoHS standards for safety and environmental quality. Manufactured in India to ensure local origin quality.
This bolted tag fuse is ideal for industrial, electrical automation, manufacturing, and power distribution systems demanding safe and reliable overload and short circuit protection.
For more products on Tag Fuses, fuses, and circuit breakers, browse the Electronics & Electricals sections on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated at 500A, making it suitable for high current applications.
The overall length is 212 mm, with a width and diameter of 74.4 mm, and a height of 83 mm.
This unit features a fuse size of C2 and is designed as a gG type for general and motor protection.
The fixing centres measure 133 mm, ensuring compatibility with standard installations.
The tag width is 26 mm, and it has a centred tag orientation for ease of mounting.
It complies with CE, REACH, EN 60269-2, and RoHS standards, confirming adherence to safety and environmental benchmarks.
The product originates from India, ensuring local origin quality.
It is ideal for use in electrical automation, manufacturing, and power distribution systems requiring reliable overload and short circuit protection.
The fuse speed rating is F, suitable for demanding electrical protection applications.
It provides general-purpose (gG type) and motor protection (gM type) in electrical circuits.
