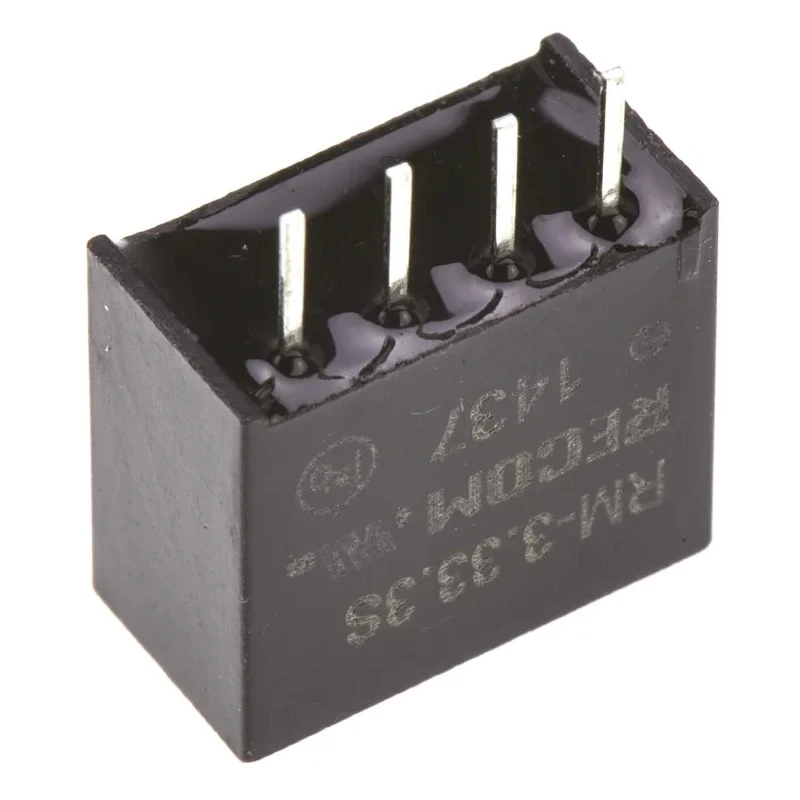

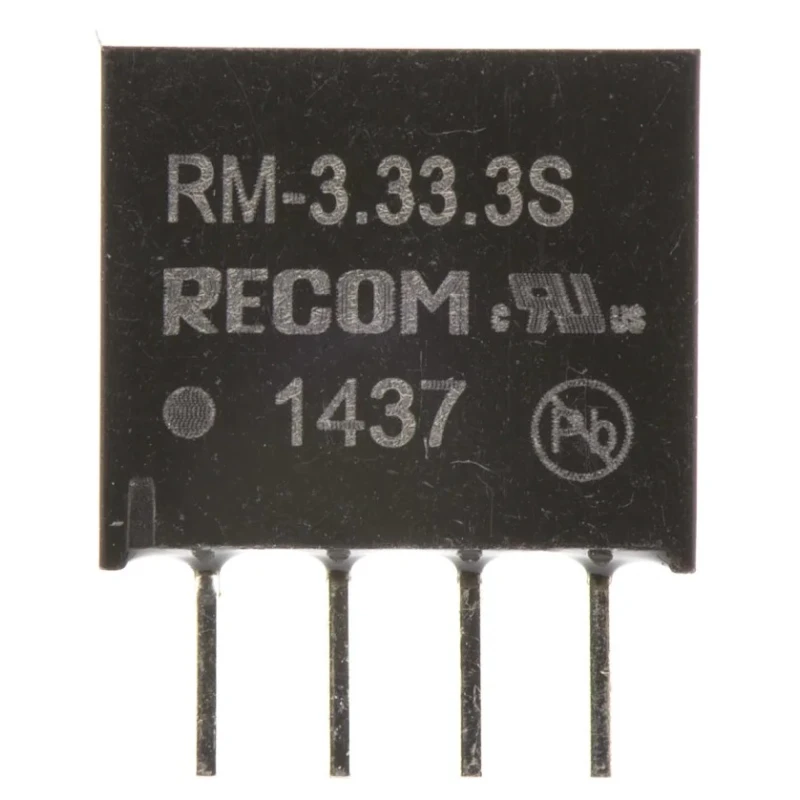

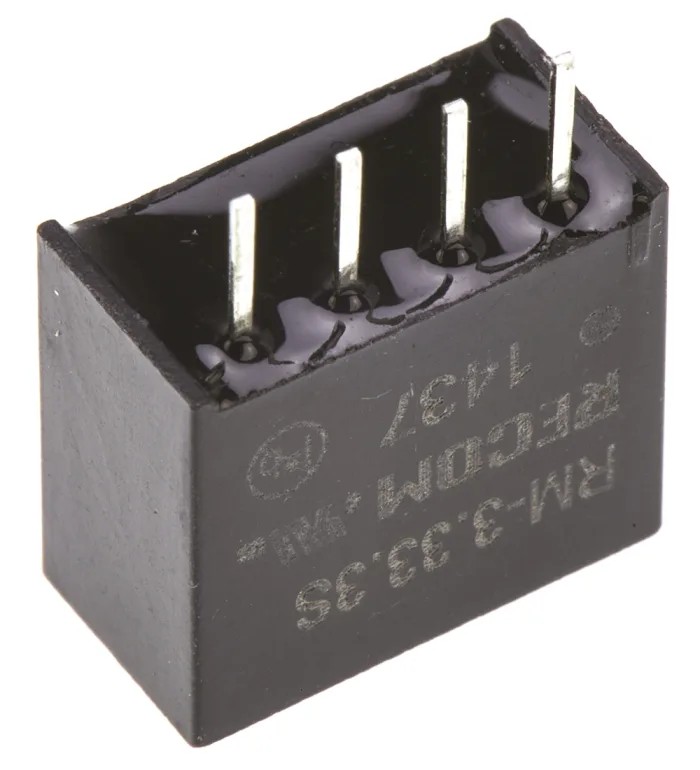

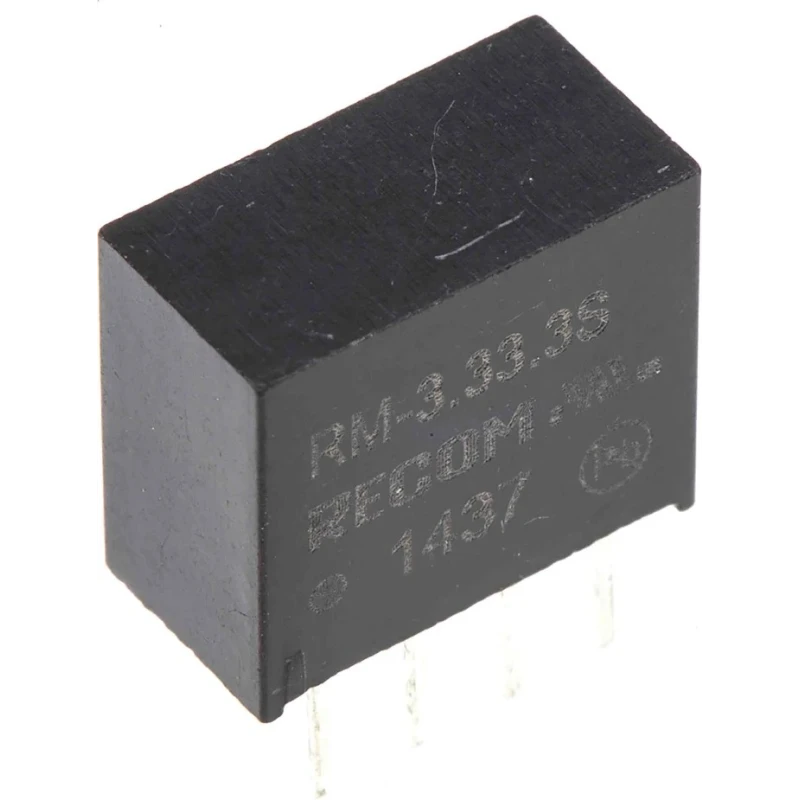

Recom DC/DC Converter 3.3V DC Output 76mA Through Hole SIP 4-Pin RM-3.33.3S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Efficiency | 70% |
| Length | 11.5mm |
| Model | RM-3.33.3S |
| Depth | 10mm |
| Gross Weight | 1.8g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | RM |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 302000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 3V dc |
| Standards/Approvals | CSA, IEC, UL |
| Minimum Input Voltage | 0V |
| Number of Pins | 4 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 76mA |
| Output Voltage Adjustment Range | 0/12 V |
| Isolation Voltage | 1kV dc |
Key Features
- Offers isolated unregulated DC-DC conversion with 1kV DC isolation for safety.
- Designed with through-hole mounting for easy PCB integration.
- Operates reliably between -40°C and 85°C temperature range.
- Features a compact size of 11.5mm length, 10mm width, and 10mm depth for space-saving designs.
- Equipped with ripple and noise of 50mV peak-to-peak ensuring steady output voltage.
- The package is fully encapsulated with UL94V-0 rated material for flame retardance.
- Certified to international standards including CSA, IEC, and UL.
- Provides efficient performance up to 70% efficiency at full load.
Product Description
Recom RM-3.33.3S DC/DC Converter is a compact single output module providing 3.3V DC at 76mA output current with a maximum power of 2W. This converter uses an industry-standard SIP 4-pin package with through-hole mounting, suitable for various electronics and industrial applications where isolated voltage conversion is required.
It operates safely across a wide ambient temperature range from -40°C to 85°C without derating, making it suitable for demanding industrial environments and embedded systems. The device provides 1kV DC isolation between input and output, ensuring system safety and noise immunity in sensitive applications.
The converter delivers a regulated output with low ripple and noise of 50mV peak-to-peak, important for maintaining signal integrity in precision electronics. It is encapsulated in a UL94V-0 flame retardant package enhancing durability and protection under rigorous conditions.
Certifications to CSA, IEC, and UL standards confirm its compliance with international electrical safety requirements. The high MTBF of 302,000 hours highlights its reliability and suitability for continuous operation in industrial, communication, and instrumentation usage.
With a compact form factor of 11.5mm length, 10mm width, and 10mm depth, this SIP package DC/DC converter fits easily into tight PCB layouts. It is designed for voltage conversion with input voltage ranging from 0V to a maximum of 3V DC and output voltage adjustment between 0V to 12V.
Isolated unregulated DC/DC conversion providing reliable electrical isolation. Ready for industrial use with wide temperature range and safety certifications. Through hole mount SIP package allowing for easy PCB mounting and serviceability.
Low ripple and noise levels for stable power supply output. Compact dimensions and lightweight construction optimizing space and weight. High efficiency and long operational life for cost-effective deployment. Suited for electronic components, power supplies, instrumentation, and embedded system designs.
Explore more DC/DC Converters from Recom and other reputed brands on EnvMart for various electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 3.3V DC.
It provides a maximum output current of 76mA.
The efficiency of this converter is rated at 70% at full load.
This model operates reliably between -40°C and 85°C.
It features an isolation voltage of 1kV DC.
The converter has dimensions of 11.5mm in length, 10mm in width, and 10mm in depth.
The ripple and noise for this unit is specified at 50mV peak-to-peak.
This model is designed for through-hole mounting.
It is certified to CSA, IEC, and UL standards.
The maximum input voltage for this model is 3V DC.
The maximum power output of this converter is 2W.
The MTBF for this model is 302,000 hours.
