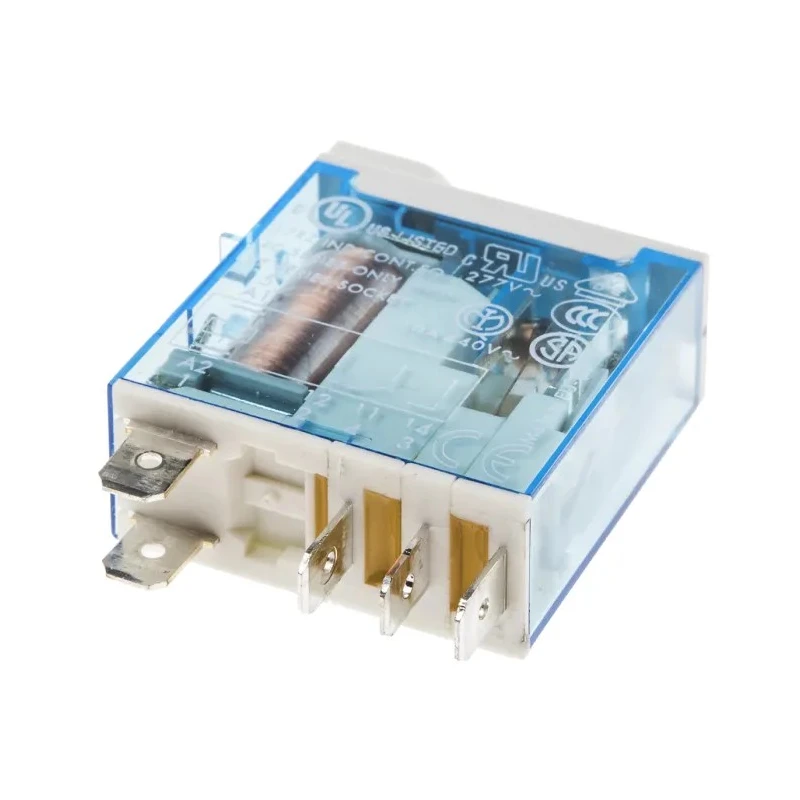

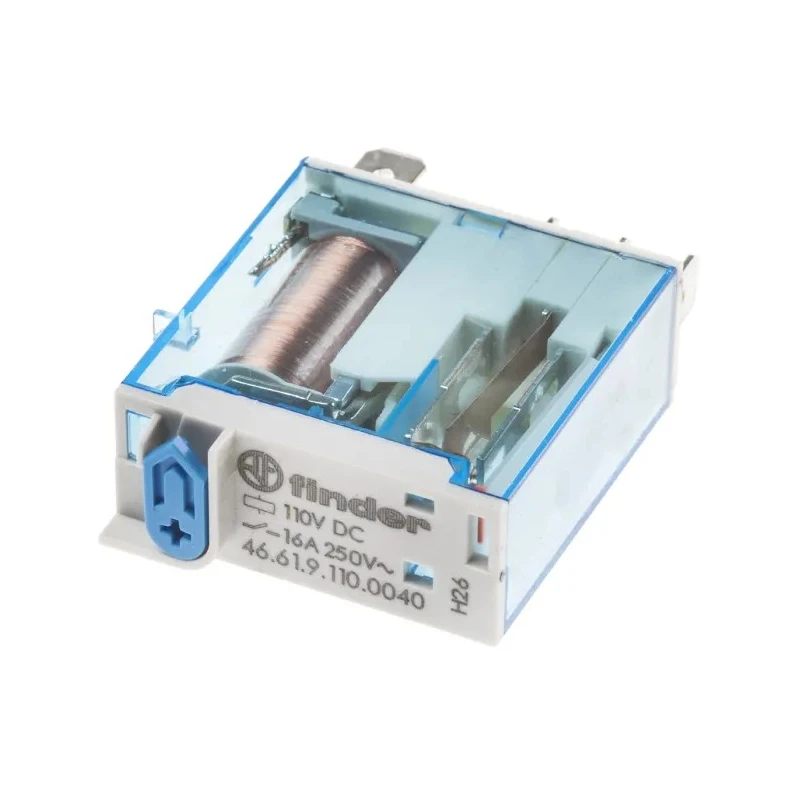

Finder PCB Power Relay, 110V DC Coil, 25A Switching Current, SPDT 46.61.9.110.0040
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 33mm |
| Length | 38.6mm |
| Width | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 46 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 25A |
| Terminal type | Screw |
| Standards/Approvals | RINA, EN, EAC, cURus, CSA, CE, CCC, VDE, RoHS |
| Coil Resistance | 23.5kΩ |
| Coil Voltage | 110V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 500mW |
Key Features
- Operates reliably with a coil voltage of 110V DC.
- Supports a maximum switching current of 25A for robust electrical performance.
- Designed with SPDT (Single Pole Double Throw) contact configuration for flexible circuit control.
- Suitable for PCB mounting with screw terminal type terminals.
- Capable of switching up to 440V AC and 125V DC voltages.
- Coil resistance of 23.5 kΩ and power consumption of 500 mW.
- Operational temperature range from -40°C to +70°C for harsh environments.
- Constructed with durable silver alloy contacts for reliable conductivity.
Product Description
Finder 46.61.9.110.0040 PCB Power Relay is a high-quality device designed for industrial and automation applications requiring reliable switching performance. It features a 110V DC coil voltage and supports a robust 25A switching current, making it suitable for controlling various electrical systems efficiently. Its SPDT contact configuration allows for versatile control in circuits.
This relay is designed for PCB mounting and uses screw terminals for secure and easy installation. The relay dimensions are compact - 38.6mm in length, 12.4mm in width, and 33mm in height - making it ideal for space-constrained applications. It can switch loads up to 440V AC and 125V DC, supported by a coil resistance of 23.5 kΩ and coil power of 500mW, ensuring energy-efficient operation.
The device operates reliably under harsh environmental conditions, featuring an operating temperature range from -40°C to +70°C. The contact material is made of silver alloy for excellent conductivity and long-lasting performance. This relay complies with numerous international standards such as RoHS, CE, CSA, VDE, and CCC, ensuring safety and quality for demanding applications.
Common industrial applications include automation of blinds, grilles, and shutters, control of lift and hoist systems, lighting for roads and tunnels, machinery control panels, and electrical distribution panels. It withstands electrical isolation of up to 6 kV and has a mechanical life rating of 1,000,000 cycles, ensuring durability and reliability in critical control systems.
Operates at 110V DC coil voltage with a 25A switching current capacity. SPDT contact configuration offers flexible circuit control. Compact size fits well in PCB mounting environments using screw terminals. Capable of handling switching voltages up to 440V AC and 125V DC.
Withstands operating temperatures from -40°C to 70°C for harsh conditions. Silver alloy contacts provide reliable electrical performance. Meets global standards including RoHS, CE, CSA, VDE, and CCC. Long mechanical life ensures consistent operation over 1 million cycles.
Electrical isolation strength of 6 kV enhances system safety. Ideal for automation, lighting control, and industrial machinery applications. Discover a wide range of high-performance relays and power control components at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 25A.
It operates at a coil voltage of 110V DC.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay dimensions are 38.6mm in length, 12.4mm in width, and 33mm in height.
It operates reliably within a temperature range of -40°C to +70°C.
The contacts are made of silver alloy, providing reliable electrical performance.
It can switch loads up to 440V AC and 125V DC.
This model is designed for PCB mounting and uses screw terminals for secure installation.
The coil resistance is 23.5 kΩ.
It complies with several standards including RoHS, CE, CSA, VDE, and CCC.
The mechanical life rating is 1,000,000 cycles, ensuring durability in operation.
Common applications include automation of blinds, control of lift systems, and lighting for roads and tunnels.
