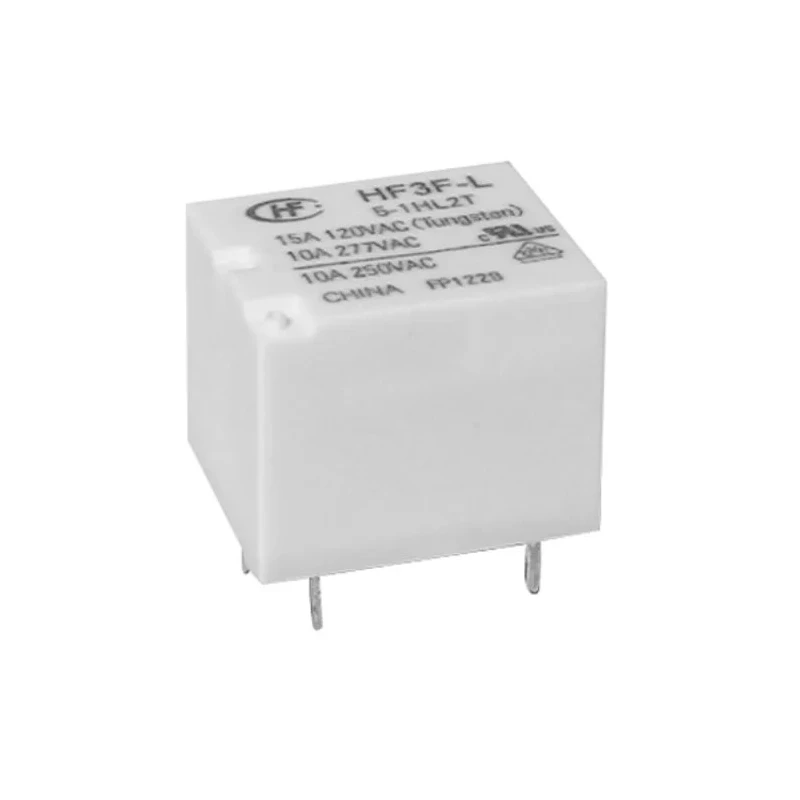

Hongfa Europe GMBH PCB Power Relay 24V DC Coil 15A SPST HF3F-L/24-1HL1T(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.5mm |
| Length | 19mm |
| Model | HF3F-L/24-1HL1T(610) |
| Width | 15.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF3F-L |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1440Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 400mW |
Key Features
- Operates reliably within a temperature range of -40°C to 80°C.
- Features SPST contact configuration for single-pole single-throw switching.
- Supports switching AC voltage up to 277V and DC voltage up to 30V.
- Coil power consumption is low at 400mW for efficient operation.
- Constructed with silver alloy contacts to ensure durability and low contact resistance of 100mΩ.
- Compact dimensions with 19mm length, 15.5mm height, and 15.2mm width.
- Meets RoHS standards for environmental compliance.
- Designed for PCB mounting with PCB terminals for easy integration.
Product Description
Hongfa Europe GMBH HF3F-L/24-1HL1T(610) PCB Power Relay is a robust sub-miniature single coil latching relay ideal for industrial, automotive, telecommunications, and household appliance applications requiring reliable power switching.
This relay features a 24V DC coil voltage and a durable SPST contact configuration capable of switching currents up to 15A, with AC and DC switching voltages of 277V and 30V respectively. Its compact construction with low mounting height of 15.5mm suits PCB mounting requirements effectively.
The relay operates efficiently with a coil power consumption of only 400mW and coil resistance of 1440Ω. Silver alloy contact material ensures excellent conductivity and low contact resistance measured at 100mΩ, enhancing the relay's performance and lifecycle.
Reliable operation is guaranteed across a wide temperature range from -40°C to 80°C. The relay complies with RoHS directives, assuring environmentally friendly manufacturing and materials.
Typical applications include automotive engines, industrial machinery, medical equipment, and telecommunication systems where high power and precision switching is critical. Operates reliably within a temperature range of -40°C to 80°C.
Features SPST contact configuration for single-pole single-throw switching. Supports switching AC voltage up to 277V and DC voltage up to 30V. Coil power consumption is low at 400mW for efficient operation. Constructed with silver alloy contacts to ensure durability and low contact resistance of 100mΩ.
Compact dimensions with 19mm length, 15.5mm height, and 15.2mm width. Meets RoHS standards for environmental compliance. Designed for PCB mounting with PCB terminals for easy integration. Explore the comprehensive range of Power Relays at EnvMart for your specific industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single-Pole Single-Throw) contact configuration for reliable switching.
The maximum switching current for this relay is 15A.
This unit has dimensions of 19mm in length, 15.5mm in height, and 15.2mm in width.
The coil voltage for this relay is 24V DC.
It operates reliably within a temperature range of -40°C to 80°C.
The contact resistance is measured at 100mΩ, ensuring low resistance during operation.
The coil power consumption is low at 400mW, allowing for efficient operation.
It supports switching AC voltage up to 277V and DC voltage up to 30V.
The contacts are constructed with silver alloy, which enhances conductivity and durability.
This model is designed for PCB mounting with PCB terminals for easy integration into circuits.
Yes, it meets RoHS standards for environmental compliance.
Typical applications include automotive engines, industrial machinery, medical equipment, and telecommunications systems.
