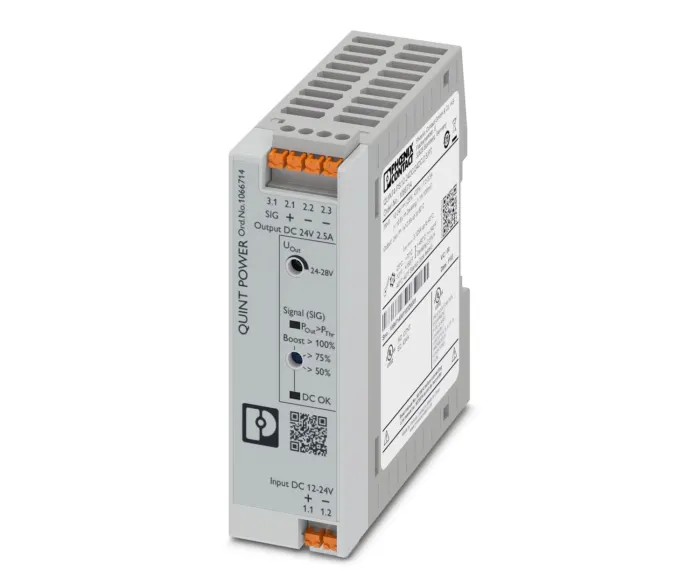

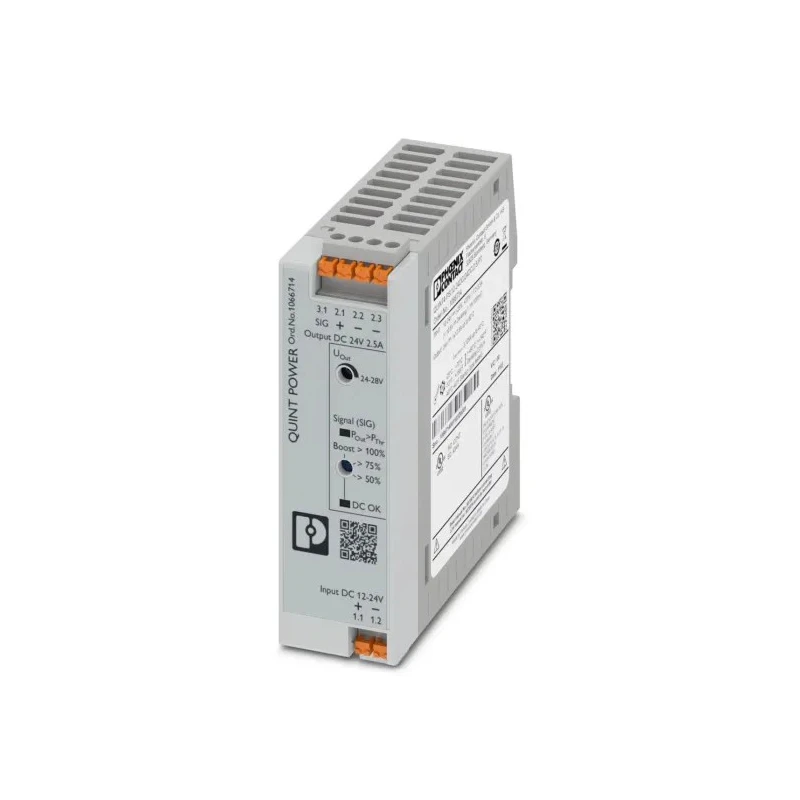

Phoenix Contact QUINT POWER DC/DC Converter 24V DC Output 2.5A, 12V-24V DC Input, DIN Rail Mount, 60W, -25 to 70°C 1066714
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Phoenix Contact QUINT POWER DC/DC Converter, 24V d |
| Brand | Phoenix Contact |
| Efficiency | 92.1% |
| Length | 90mm |
| Model | 1066714 |
| Depth | 90mm |
| Gross Weight | 246g |
| Width | 32mm |
| Mount Type | DIN Rail |
| Series | QUINT POWER |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 471066h |
| Number of outputs | 5 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 24V dc |
| Minimum Input Voltage | 12V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 2.5A |
| Output Voltage Adjustment Range | 24 to 28 V dc |
| Isolation Voltage | 1.2kV |
Key Features
- Compact DIN Rail mounting design for easy installation.
- Output voltage adjustable between 24 to 28 V dc.
- High efficiency of approximately 92.1% supports energy saving.
- Maximum output power of 60 Watts with stable 2.5A current.
- Supports up to 5 outputs with low ripple and noise (20mV Pk-Pk).
- Robust isolation voltage rated at 1.2kV for safety.
- Wide operating temperature range from -25°C to 70°C.
- Lightweight at 246 grams facilitating convenient mounting.
Product Description
Phoenix Contact 1066714 is a QUINT POWER DC/DC Converter designed for compact DIN Rail mounting. It converts input voltages from 12 V DC to 24 V DC into a stabilized 24 V DC output at 2.5 A with a maximum output power of 60 W. This device is optimized for robust and reliable operation in industrial environments with an operating temperature range from -25°C to 70°C.
The QUINT POWER series delivers superior system availability in the smallest size, featuring preventative function monitoring and exceptional power reserves to support low power range applications. Its most powerful output side enables easy system expansion, reliable heavy load start-up, and miniature circuit breaker tripping protection.
The converter supports up to 5 outputs and features a low ripple and noise of 20mV peak-to-peak ensuring stable and clean voltage supply. The output voltage adjustment range is 24 to 28 V DC to provide flexibility for various industrial applications.
With an efficiency rating of 92.1%, the unit minimizes energy losses and heat generation. It has a robust isolation voltage of 1.2 kV enhancing safety in electrically noisy environments.
Compliance with IEC 61010-2-201, UL 1310, UL 61010-1, CAN/CSA standards and others ensures adherence to strict safety and performance criteria required for electrical equipment in industrial and automation settings.
Compact DIN Rail mount design for ease of integration. Wide input voltage range from 12 V to 24 V DC. Output current of 2.5 A with adjustable voltage up to 28 V DC. High efficiency and low ripple noise output. Wide operating temperature span suitable for harsh industrial conditions.
Advanced protective features promoting system reliability. Lightweight and space-saving form factor aiding installation. Multiple outputs for flexible circuit configurations. Certified to international safety standards.
This DC/DC Converter is suitable for industrial automation, control cabinets, PLC power supplies, and other electronics requiring stable DC power conversion with DIN Rail installation compatibility.
Explore the extensive range of power supplies and converters available to meet diverse industrial power management needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 60 Watts.
It accepts input voltages ranging from 12 V DC to 24 V DC.
The output current rating is 2.5 A.
Yes, the output voltage can be adjusted between 24 V DC and 28 V DC.
The efficiency rating is approximately 92.1%.
This converter supports up to 5 outputs.
The dimensions are 90 mm in length, 90 mm in depth, and 32 mm in width.
The operating temperature range is from -25°C to 70°C.
The isolation voltage is rated at 1.2 kV.
The ripple and noise is specified at 20 mV peak-to-peak.
It is designed for DIN Rail mounting.
It complies with IEC 61010-2-201, UL 1310, UL 61010-1, and CAN/CSA standards.
