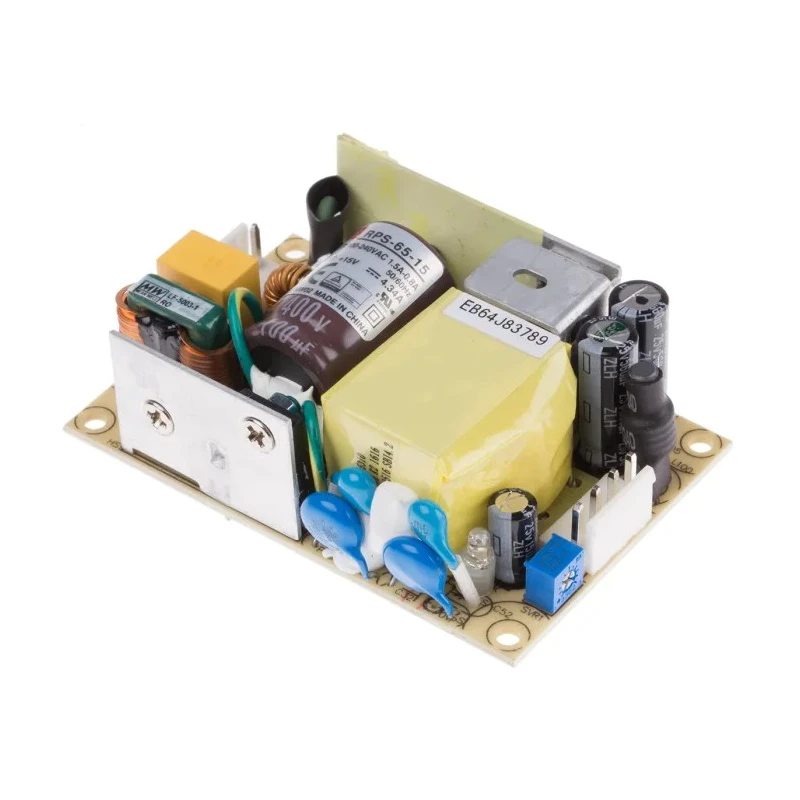

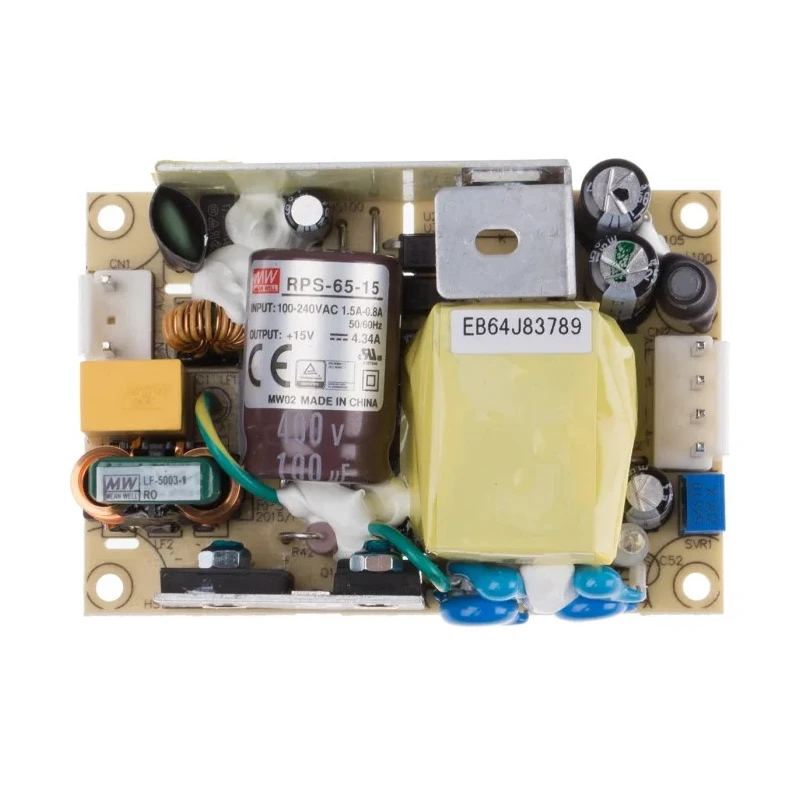

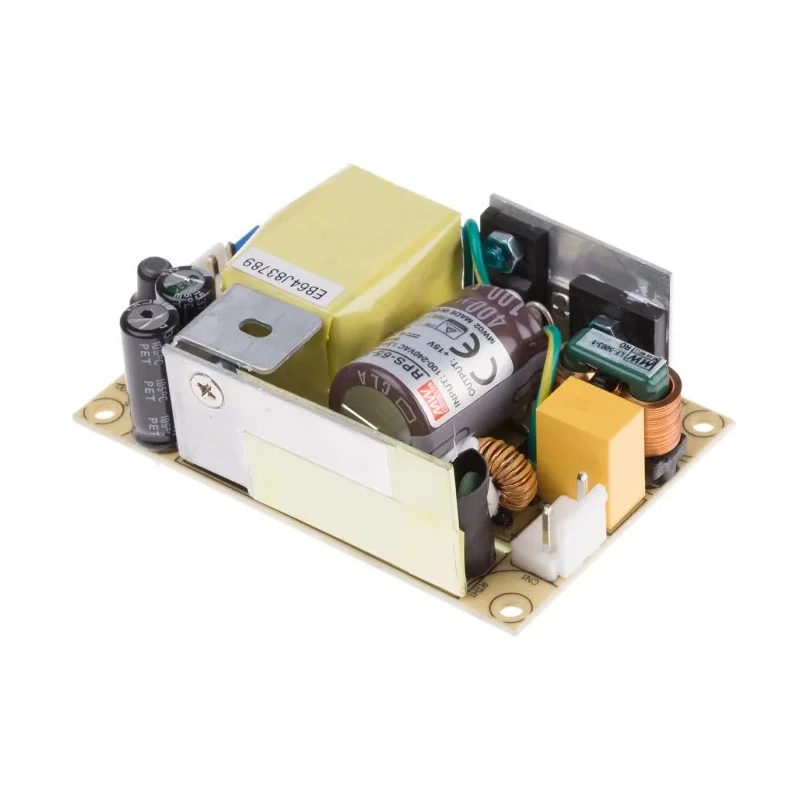

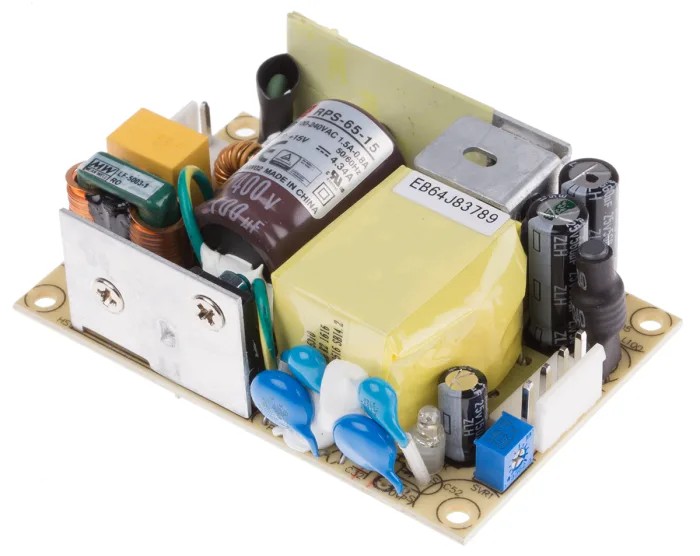

MEAN WELL 15V dc 65W Switching Power Supply Chassis Mount RPS-65-15
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 65W |
| Efficiency | 89% |
| Length | 76.2mm |
| Model | RPS-65-15 |
| Depth | 24mm |
| Gross Weight | 110g |
| Width | 24mm |
| Mount Type | Chassis |
| Series | RPS-65 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 15V dc |
| SMPS Output Current | 4.34A |
| Minimum Input Voltage | 80V ac |
Key Features
- Compact chassis mount size with dimensions 76.2mm x 24mm x 24mm.
- Wide input voltage range from 80V ac to 264V ac supports global compatibility.
- Output current rating of 4.34A ensures reliable power delivery.
- Free air convection cooling and LED power status indication for efficient operation.
- High efficiency of 89% reduces energy loss and heat generation.
- Operating temperature range from -30°C to 70°C for versatile environments.
- Certified to multiple safety standards including UL 62368-1 and TUV EN 62368-1.
- Medical safety approved with 2x MOPP isolation between primary and secondary circuits.
Product Description
MEAN WELL RPS-65-15 is a robust Switching Power Supply with a 15V dc output voltage and 65W power rating designed for industrial and medical applications. Its compact chassis mounting form factor measuring 76.2mm length, 24mm width, and 24mm depth optimizes space efficiency for 1U applications.
The power supply operates over a wide input voltage range of 80V ac to 264V ac and supports an output current of 4.34A with up to 89% efficiency, ensuring reliable and energy-efficient performance. The unit is cooled by free air convection and includes an LED indicator for power status monitoring.
Operating reliably in harsh conditions, it supports temperatures ranging from -30°C to 70°C. Safety certifications include CCCGB4943.1, UL 62368-1, TUV BS EN 62368-1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, CSA C22.2 No. 62368-1, BSMI CNS143361, and AS/NZS62368.1 standards. Medical safety approval with 2x MOPP isolation allows its application in sensitive medical devices such as oral irrigators, sleep apnea machines, and hemodialysis machinery.
The RPS-65 Series power supplies provide a dependable switching mode solution suited for industrial machines, laboratory instruments, medical equipment, and commercial electronics requiring precise and stable power input.
Compact chassis mount design measuring 76.2mm x 24mm x 24mm. Wide input voltage acceptance from 80V ac to 264V ac. Output current of 4.34A with 15V dc output voltage. High efficiency rating of 89% for minimal energy loss.
Wide operating temperature range of -30°C to 70°C. Medical safety approved with enhanced isolation. Free air convection cooling with LED power status indication. Multiple international safety certifications for assured compliance.
Applications in medical, industrial, laboratory, and commercial environments. Explore the full range of MEAN WELL switching power supplies and compatible industrial electronics at EnvMart for reliable and certified power solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RPS-65-15 provides a 15V DC output voltage with a power rating of 65W.
It operates over a wide input voltage range from 80V AC to 264V AC, allowing for global compatibility.
This power supply has a maximum output current rating of 4.34A.
The compact chassis mount dimensions are 76.2mm in length, 24mm in width, and 24mm in depth.
It has a high efficiency rating of 89%, which helps to reduce energy loss and heat generation.
The RPS-65-15 can operate in temperatures ranging from -30°C to 70°C.
It utilizes free air convection cooling, which enhances its operational efficiency.
This model is designed for industrial and medical applications, including sensitive medical devices.
The gross weight of this power supply is 110g.
Yes, it includes an LED indicator for power status monitoring.
The RPS-65-15 is designed for chassis mounting, optimizing space efficiency for 1U applications.
