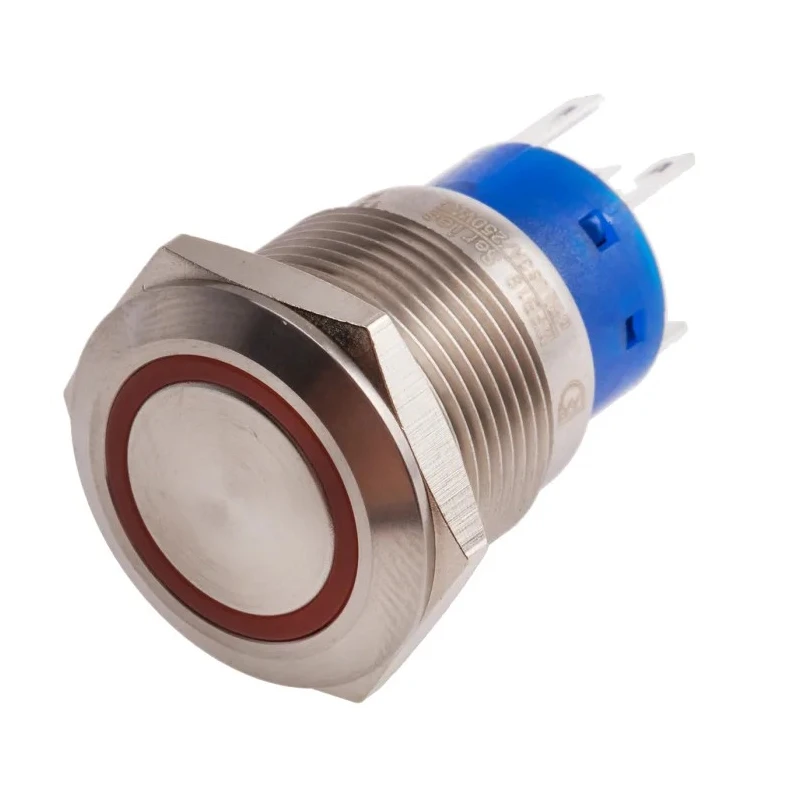

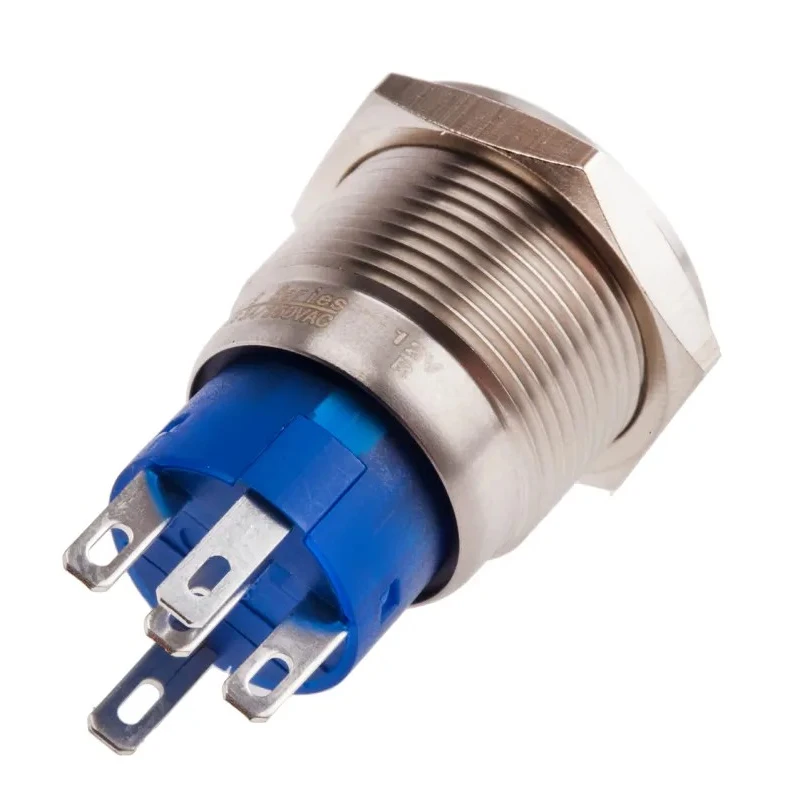

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 19.2 mm Cutout, SPDT, Red LED, IP67, 250 V AC 5A 111-5774

Name: RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 19.2 mm Cutout, SPDT, Red LED, IP67, 250 V AC 5A 111-5774
Brand: RS PRO
SKU: 413650
Price: 2405.67 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	111-5774
IP Rating	IP67
Mount Type	Panel
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	1 NO/1 NC
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 mm
Terminal type	Solder Pin
Standards/Approvals	cULus Recognized E 187490, ENEC 18, IK10
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	250V
Actuator Style	Round
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

Supports momentary switch operation for reliable control.
Features a silver actuator with a round style for ergonomic use.
Red LED illumination enhances visibility in control panels.
Panel mounting with 19.2 mm cutout size for easy installation.
IP67 rated for dust and water ingress protection.
Electrical ratings include 250 V AC, 250 V DC, and 5A contact current.
Durable silver-plated copper contacts ensure a firm electrical connection.
Wide operating temperature range from -20°C to 55°C.

Product Description

RS PRO 111-5774 Illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting with a precise 19.2 mm cutout. It features a single-pole double-throw (SPDT) contact configuration and a red LED for clear visual indication. The actuator is silver-colored and rounded for comfortable operation.

This IP67 rated switch is built to withstand harsh industrial environments, providing protection against dust and water. Its robust silver-plated copper contacts ensure reliable electrical connectivity with a current rating of 5 A and voltage ratings of 250 V AC and 250 V DC.

Engineered to operate in a temperature range from -20°C up to 55°C, this push button switch is suitable for demanding applications such as medical devices, industrial control gear, and communication equipment where dependable switching is critical.

The product adheres to rigorous industry standards including cULus Recognition (E 187490), ENEC 18 certification, and an IK10 impact resistance rating, guaranteeing performance and safety.

Its compact design suits installation in space-restricted panels while maintaining operational efficiency. The solder pin terminal type facilitates secure mounting and easy integration into electrical circuits.

Supports momentary switch operation for reliable control. Features a silver actuator with a round style for ergonomic use. Red LED illumination enhances visibility in control panels. Panel mounting with 19.2 mm cutout size for easy installation.

IP67 rated for dust and water ingress protection. Electrical ratings include 250 V AC, 250 V DC, and 5A contact current. Durable silver-plated copper contacts ensure a firm electrical connection. Wide operating temperature range from -20°C to 55°C.

Meets standards including cULus Recognized, ENEC 18, and IK10 impact rating. Ideal for industrial control gear, medical equipment, and communication applications.

This push button switch is widely used across industrial, medical, communication, and hobbyist applications providing reliable momentary switching in demanding environments. It is an essential component in control panels requiring durability, safety, and clear visual feedback.
