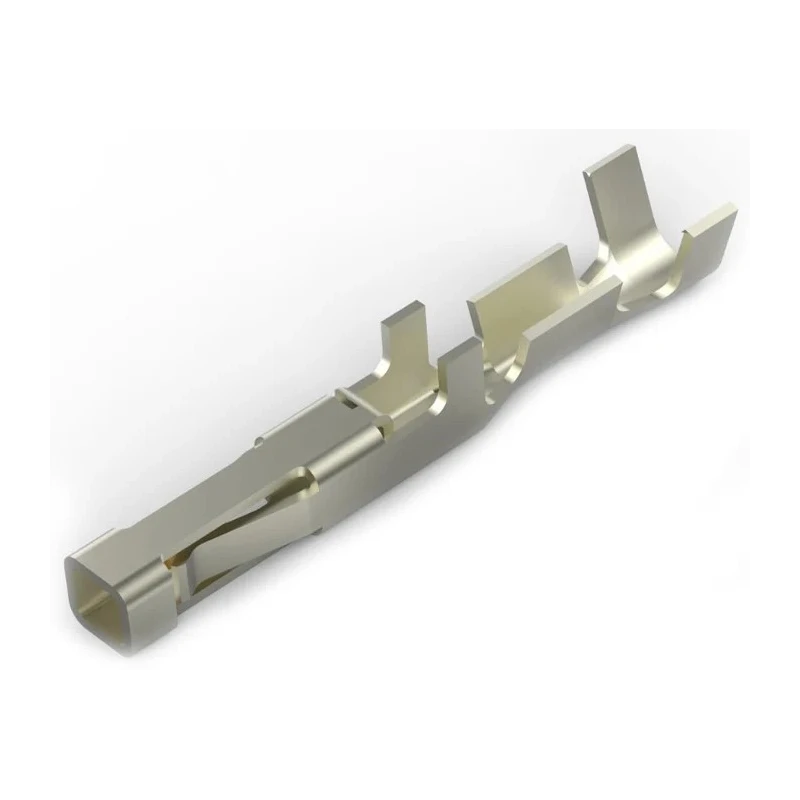

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 5A Current 30 to 26 AWG Wire Size 1-794607-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Designed for use with Micro MATE-N-LOK connector housings.
- Gold plated phosphor bronze contact material ensures high reliability.
- Dual beam contact design provides secure electrical connection.
- Locking lance mechanism ensures secure retention in connector housing.
- Supports wire sizes from 0.05 mm² (30 AWG) to 0.1 mm² (26 AWG).
- Maximum operating temperature of 105°C and minimum operating temperature of -40°C.
- Crimp termination type suitable for industrial and electronic applications.
- Low maximum contact resistance rated at 20 milliohms.
Product Description
TE Connectivity 1-794607-1 Micro MATE-N-LOK Series Female Crimp Terminal offers a reliable connection solution for industrial and electronic applications requiring compact and robust connectors. Designed specifically for Micro MATE-N-LOK connector housings, this female crimp terminal supports wire sizes ranging from 30 AWG to 26 AWG, suitable for fine, delicate wiring configurations.
Constructed with phosphor bronze contact material and gold plating, the terminal ensures excellent conductivity and corrosion resistance for long-term performance. The dual beam contact design enhances electrical reliability, while the locking lance mechanism securely retains the contact within the housing, preventing accidental disconnections during operation.
This crimp terminal is rated for a maximum current of 5 Amperes and functions effectively within an operating temperature range from -40°C to 105°C, accommodating diverse applications including consumer electronics, industrial control gear, and lighting systems.
The Micro MATE-N-LOK 3mm connector system features a 3 mm centerline pitch suitable for wire-to-wire and wire-to-board connections, offering a low profile with a 4.7 mm mating height. This makes it ideal for space-constrained designs such as LED lighting and compact assemblies.
The high mechanical and electrical integrity of these crimp terminals meets demanding industrial standards, ensuring dependable interconnect solutions across various sectors including manufacturing, automation, and electronics.
Designed for Micro MATE-N-LOK connector housings with secure locking lance retention. Gold plating and phosphor bronze contacts provide excellent electrical conductivity. Dual beam contact design enhances reliability of electrical connections.
Operates at a 3 mm pitch with 5A maximum current rating. Supports wire sizes 30 AWG to 26 AWG (0.05 mm² to 0.1 mm²) with crimp termination. Wide operating temperature range suitable for harsh environments. Compact form factor ideal for electronics and industrial applications.
Manufactured in the United States ensuring quality craftsmanship. Explore the range of TE Connectivity Connectors on EnvMart for high-performance, reliable electronic connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 5 Amperes.
It supports wire sizes ranging from 30 AWG (0.05 mm²) to 26 AWG (0.1 mm²).
The terminal operates effectively within a temperature range of -40°C to 105°C.
The contact material is phosphor bronze, and it features gold plating for improved conductivity and corrosion resistance.
It features a locking lance mechanism that ensures secure retention of the contact within the connector housing, preventing accidental disconnections.
This model uses crimp termination, making it suitable for various industrial and electronic applications.
It is specifically designed for use with Micro MATE-N-LOK connector housings.
The maximum contact resistance is rated at 20 milliohms.
This terminal operates at a 3 mm pitch, suitable for both wire-to-wire and wire-to-board connections.
It is manufactured in the United States, ensuring quality craftsmanship.
It is suitable for applications in consumer electronics, industrial control gear, and lighting systems.
The dual beam contact design enhances the reliability of electrical connections, providing a secure and dependable interface.
