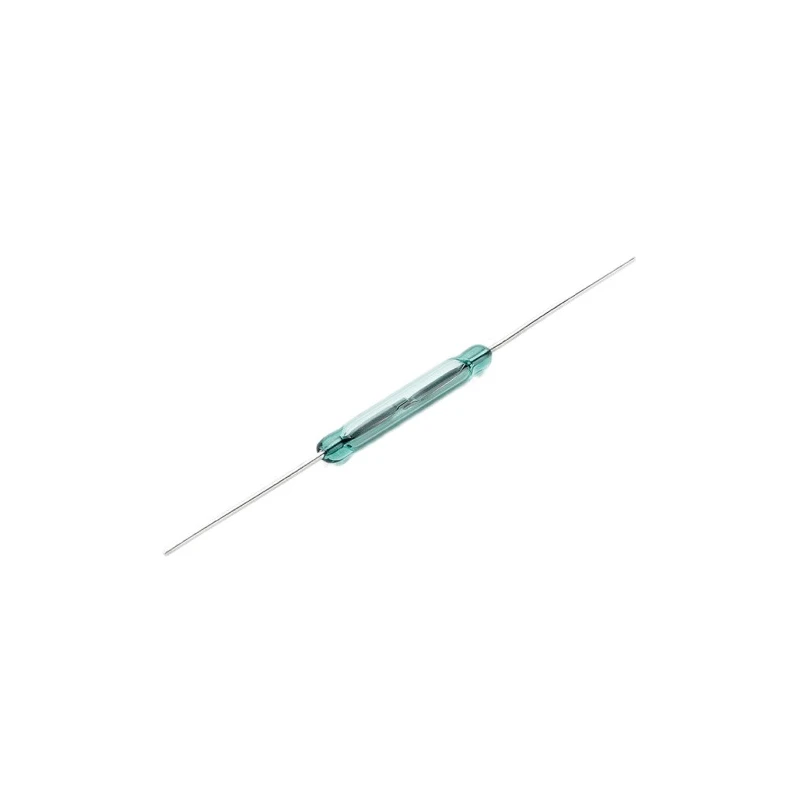

Littelfuse PCB High Voltage Reed Switch 500 mA 200 V HA15-2-17-23

Littelfuse HA15-2-17-23 PCB High Voltage Reed Switch is a subminiature, normally open switch with axial leads designed for printed circuit board mounting. It features a hermetically sealed glass envelope measuring 15.24 mm in length and 2.28 mm in width, which protects the magnetically operated contacts from contamination and environmental effects.

This reed switch supports a maximum switching current of 500 mA and voltage up to 200 V, making it suitable for a variety of electrical switching applications including reed relays, security devices, limit switching, office equipment, and light inductive loads. It has a low contact resistance of 100 milliohms and high insulation resistance, ensuring reliable electrical performance.

The switch operates efficiently with a fast release time of 0.2 ms and operating time including bounce of 0.6 ms. Designed to withstand harsh conditions, it supports an operating temperature range of -20°C to +125°C. It complies with UR standards and carries ATEX approval for usage in 17 to 23 AT magnetic sensitivity ranges.

These features make the HA15-2-17-23 reed switch perfect for industrial, electronic, and commercial applications requiring dependable PCB-mounted switching components capable of handling moderate voltage and current levels.

Subminiature axial lead design suitable for PCB mounting. 500 mA maximum switching current with 200 V maximum switching voltage. Hermetically sealed glass to prevent contamination. Low contact resistance of 100 mΩ for efficient switching.

Wide operating temperature range from -20°C to +125°C. Fast response with 0.2 ms maximum release time. UR standard compliant with ATEX approval.

This Littelfuse reed switch model is ideal for integration in electrical automation, control circuits, and various switching applications across industrial and commercial environments. Browse more Reed Switches and related electrical components at EnvMart for high quality and trusted performance.
