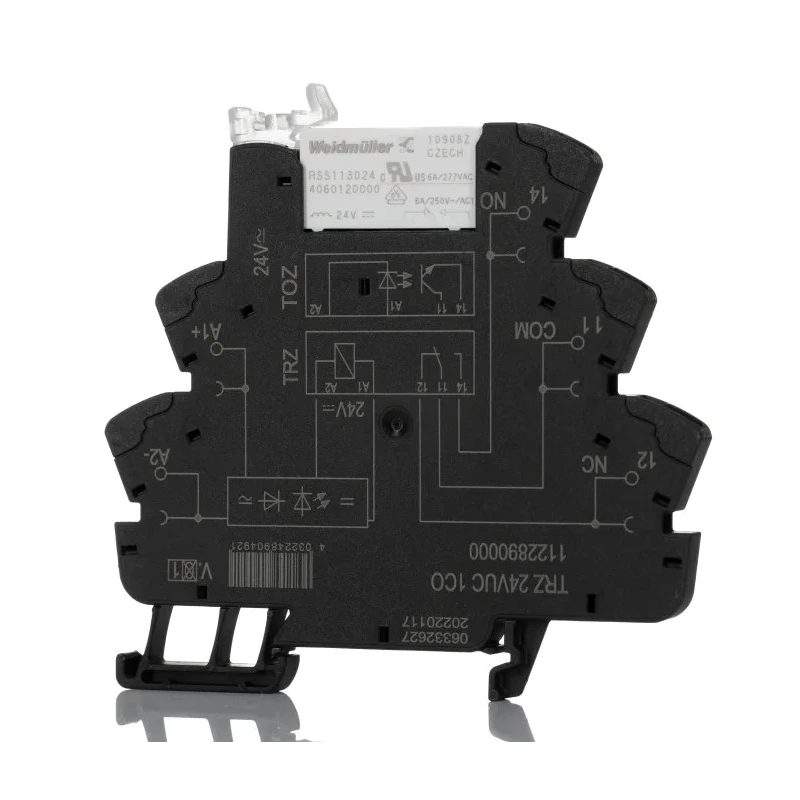

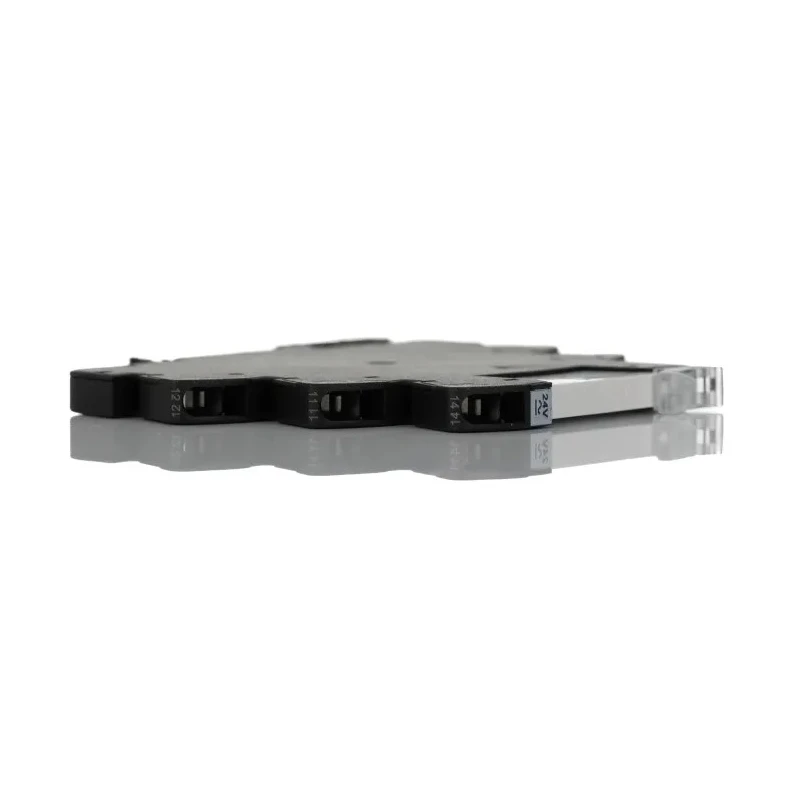

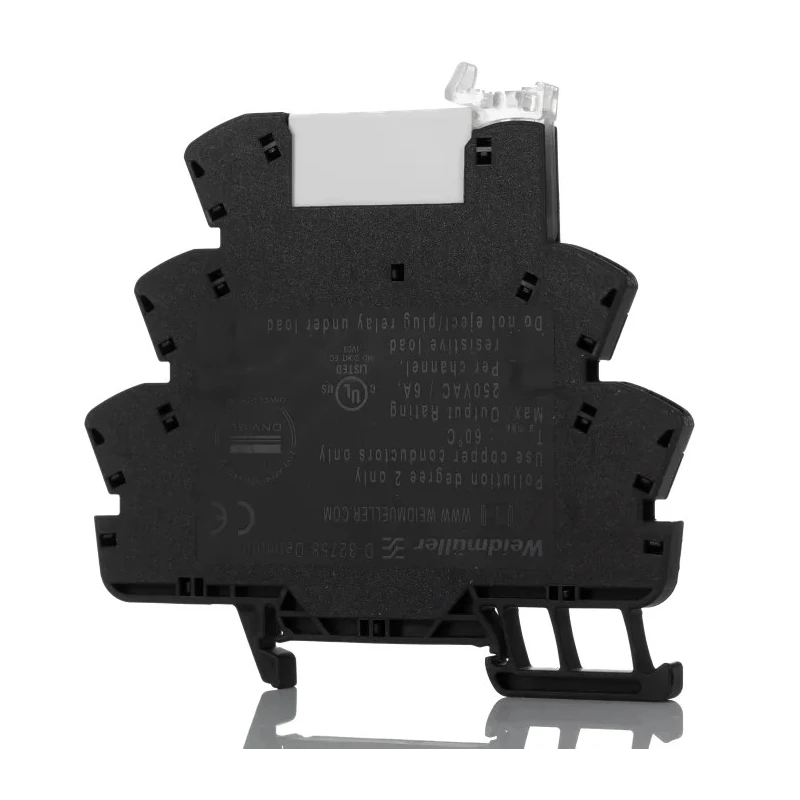

Weidmüller TRZ Series Interface Relay DIN Rail Mount 24V Coil SPDT 6A Switching Current 1122890000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Weidmüller |
| Height | 88mm |
| Length | 90mm |
| Width | 6.4mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | TRZ |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Spring Clamp |
| Coil Voltage | 24V |
| Coil Current | 11.7mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Compact design measuring 90mm length, 6.4mm width, and 88mm height for space-efficient installation.
- Operates within a temperature range of -40°C to 60°C, suitable for harsh environments.
- Silver alloy contacts ensure durable conductivity and longevity.
- Features spring clamp terminal type for secure wiring connections.
- Equipped with green LED indicator for easy status monitoring.
- Designed for DIN rail mounting to enable quick and simple installation.
- Rated impulse withstand voltage of 6kV to ensure robust protection against surges.
- Touchproof IP20 rating ensures protection against objects larger than 12mm and user safety.
Product Description
Weidmüller 1122890000 TRZ Series Interface Relay is a durable electromechanical device designed for industrial and automation applications, featuring a 24V coil and single-pole double-throw (SPDT) contact configuration.
This interface relay supports switching currents up to 6A with switching voltages of 250V AC/DC, providing reliable circuit control. The relay’s silver alloy contacts enhance electrical conductivity and durability, suited for consistent operation in demanding industrial environments.
With dimensions of 90mm in length, 6.4mm in width, and 88mm in height, this compact relay is ideal for installations in tight spaces. It mounts easily on DIN rails, facilitating quick integration into control panels.
Operating efficiently within temperatures from -40°C to +60°C, the relay withstands harsh working conditions and environmental variations. The coil current is 11.7mA, and the relay includes a spring clamp terminal for secure and efficient wiring.
The device complies with multiple international standards including EN 61000-6-2, EN 61000-6-4, EN 50178, EN 55011, and EN 61000-6-1, guaranteeing quality and safety in electromagnetic compatibility, insulation, and fire safety.
Applications include automation networks, power supply installations, and medical X-ray technology systems, where reliable switching and signal isolation are critical. The integrated galvanic isolation reduces interference improving system performance.
Compact size allows installation in limited space. Green LED indicator for visual status monitoring. Rated impulse withstand voltage of 6kV for enhanced protection. Spring clamp terminals provide secure wiring. Suitable for diverse industrial applications including automation and power control.
Complies with key European standards for electrical and EMC safety. Touchproof IP20 rating improves installation safety.
This Weidmüller TRZ series interface relay is a reliable solution for industrial control and automation systems requiring robust performance and long mechanical service life. Explore more Interface Relays and related electrical components at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a maximum switching current of 6A.
This model measures 90mm in length, 6.4mm in width, and 88mm in height.
The relay operates with a coil voltage of 24V.
It features a single-pole double-throw (SPDT) contact configuration.
The relay operates efficiently within a temperature range of -40°C to +60°C.
The contacts are made from silver alloy, enhancing conductivity and durability.
It is designed for DIN rail mounting, allowing for quick and easy installation.
The relay has a rated impulse withstand voltage of 6kV, providing robust protection against surges.
It uses a spring clamp terminal type for secure wiring connections.
It complies with several standards including EN 61000-6-2, EN 61000-6-4, EN 50178, EN 55011, and EN 61000-6-1.
It is suitable for applications in automation networks, power supply installations, and medical X-ray technology systems.
The coil current is 11.7mA.
