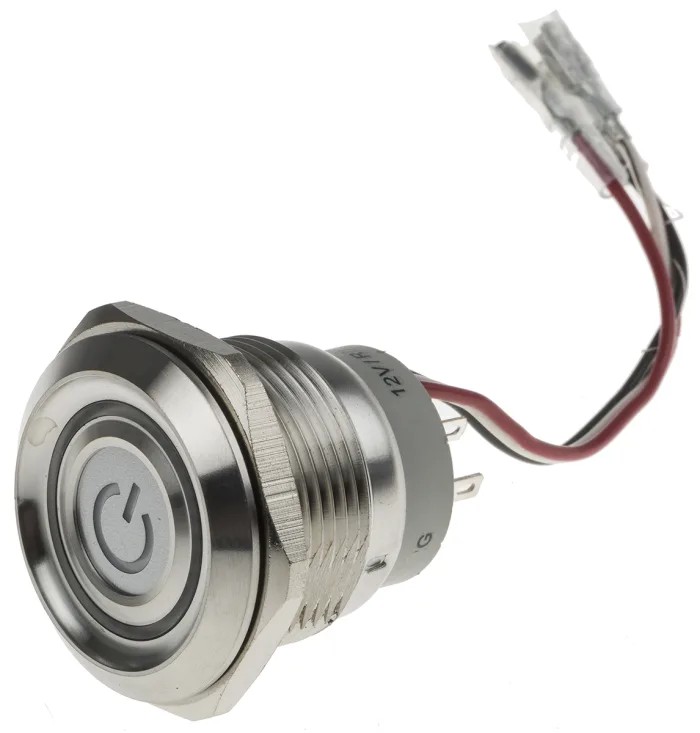

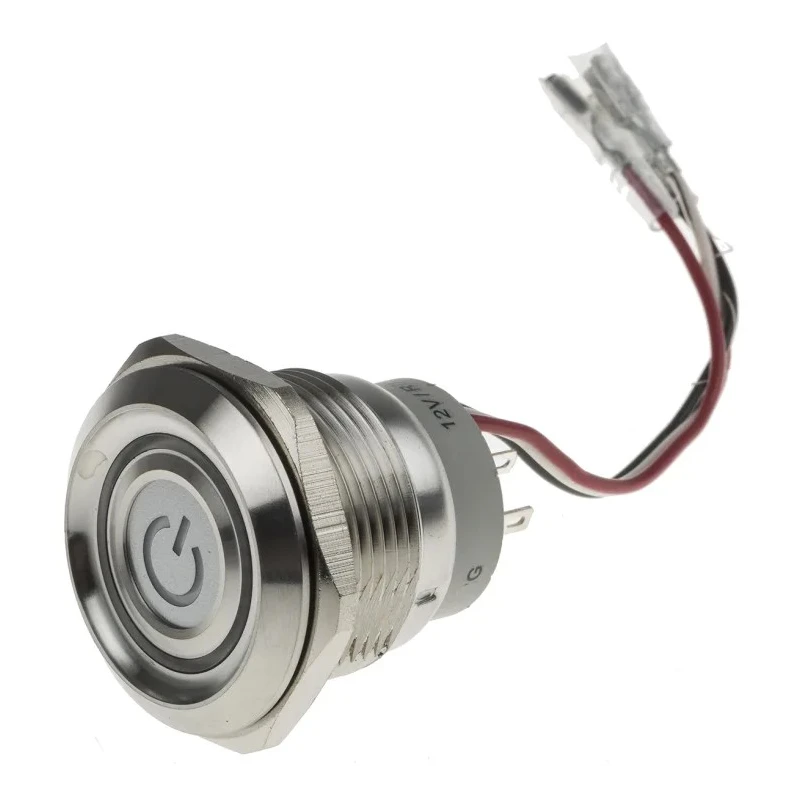

RS PRO Illuminated Momentary Push Button Switch Panel Mount DPDT RGB LED IP67 250 V 5A 877-1860

Name: RS PRO Illuminated Momentary Push Button Switch Panel Mount DPDT RGB LED IP67 250 V 5A 877-1860
Brand: RS PRO
SKU: 411667
Price: 75.82 USD
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	877-1860
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Switch Configuration	DPDT
Impact Resistance	IK03
Minimum Operating Temperature	-20°C
Panel Cutout Size	30.2 mm
Terminal type	Quick Connect
Standards/Approvals	RoHS
LED Colour	Blue, Green, Red
Switch Operation	Momentary
Actuator Colour	White
Contact DC Voltage	250V
Actuator Style	Flat
Switch Contact Current	5A
Contact AC Voltage	250V ac
Legend	Power Symbol
Bushing Material	Varnished / Polished Stainless Steel

Key Features

The switch has a 30.2 mm panel cutout size suitable for control panels.
It includes RGB LED illumination with blue, green, and red colors for versatile signaling.
The actuator is white and has a flat style for easy operation.
The contact rating supports up to 250 V AC/DC at 5A current carrying capacity.
Designed to operate in temperatures from -20°C to 55°C with an impact resistance rating of IK03.
Bushing is made from varnished and polished stainless steel ensuring durability.
The switch complies with RoHS standards for environmental safety.
Quick connect terminal type allows easy and secure wiring connections.

Product Description

The RS PRO 877-1860 illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting in industrial, automation, and electrical control applications. It features a double pole double throw (DPDT) contact configuration which allows switching of two separate circuits simultaneously.

With a panel cutout size of 30.2 mm, it is compatible with standard control panel openings. The switch includes RGB LED illumination providing multiple indicator colors including blue, green, and red, which enhance user interface feedback and operational status visualization.

The actuator is white and styled flat to provide ergonomic and reliable user operation. The switch is rated for continuous operation under voltages up to 250 V AC or DC with a current rating of 5A, making it suitable for moderate power switching tasks.

Constructed with durability in mind, the switch's bushing is crafted from varnished and polished stainless steel, ensuring long-term corrosion resistance. It meets the stringent IP67 ingress protection rating, guaranteeing dust-tight sealing and resistance to temporary water immersion, ideal for industrial and outdoor environments.

Additional features include an impact resistance of IK03 protecting against mechanical shock, and compliance with RoHS environmental standards to ensure the product is free from hazardous substances. The quick connect terminal type reduces installation complexity and time, enhancing serviceability.

This product is well-suited for use in electrical panels, manufacturing controls, automation systems, laboratory equipment, and other industrial machinery requiring reliable and visible push button actuation.

The switch's multi-color LED illumination improves operational clarity. High protection class IP67 enables use in harsh environments. Robust stainless steel construction extends product lifespan. Momentary operation ensures temporary activation as required in control applications.

Compact 30.2 mm panel mounting size fits standard enclosures. Suitable for AC/DC voltage up to 250 V and current of 5A. Explore more high-quality industrial electrical components in the Electronics & Electricals category at EnvMart for reliable and efficient automation solutions.
