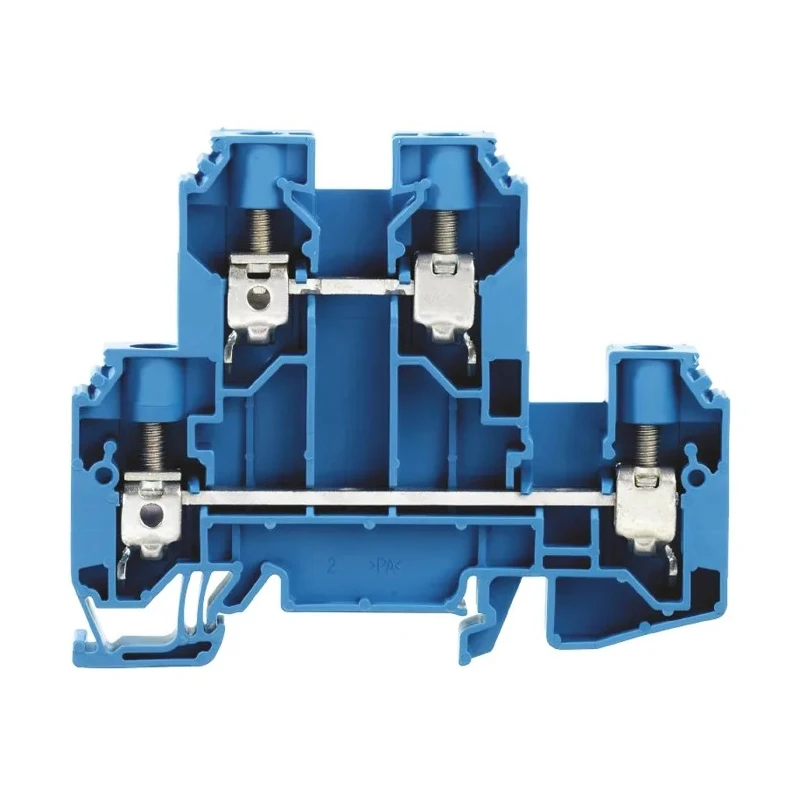

Weidmüller W Series Blue Double Level Terminal Block 10mm² Screw 57A 800V 1186750000

Weidmüller 1186750000 W Series double level terminal block in blue color is engineered for secure and organized electrical connections. This terminal block supports wire sizes from 16 AWG to 6 AWG, accommodating cables with a cross-sectional area of 10mm². It uses a screw clamp termination type that ensures consistent and reliable contact for demanding industrial and electrical applications.

Designed to mount easily on standard symmetrical Top Hat DIN rails (BS5584:1978, EN 50022), this terminal block is compact and space-efficient due to its double-tier design. The current rating of 57 amperes and a rated voltage of 800 volts make it ideal for varied power distribution needs in electrical panels, control cabinets, and industrial automation systems.

The housing is manufactured from durable nylon 6.6, which can withstand continuous temperatures up to 120°C and is self-extinguishing to UL94V-0 standards. Additionally, it is free from hazardous cadmium and halogen materials, enhancing safety and environmental compliance.

Operating temperature ranges from -50°C to 120°C, allowing use in cold storage facilities, outdoor installations, and other challenging environments. The terminal block is designed with clamping yoke technology that facilitates secure screw connections, optimizing operational safety and installation efficiency.

This Weidmüller W Series terminal block has no hazardous area certifications or additional standards approvals but meets essential industrial requirements for electrical connectors. Its blue color coding aids in wiring organization and identification in complex electrical panels.

The terminal block features a double-tier design for efficient wiring. Constructed for mounting on standard Top Hat DIN rails (BS5584:1978, EN 50022). Terminals use screw clamp technology ensuring secure connections. Rated voltage is up to 800 volts for versatile electrical applications.

Terminal block current rating is 57 amperes, supporting substantial electrical loads. Made with nylon 6.6 housing rated for continuous operation up to 120°C. Colors available in blue for easy identification in panels. Compatible with wire sizes from 16 AWG to 6 AWG (10mm² cable CSA).

Self-extinguishing to UL94V-0 and free of cadmium and halogen substances. Operating temperature ranges from -50°C to 120°C, suitable for harsh environments.

This terminal block is widely used in industrial automation, electrical distribution, control panel construction, HVAC systems, and manufacturing equipment. Its robust design and high current rating ensure dependable performance in electrical installations requiring multiple cable connections in limited space.
