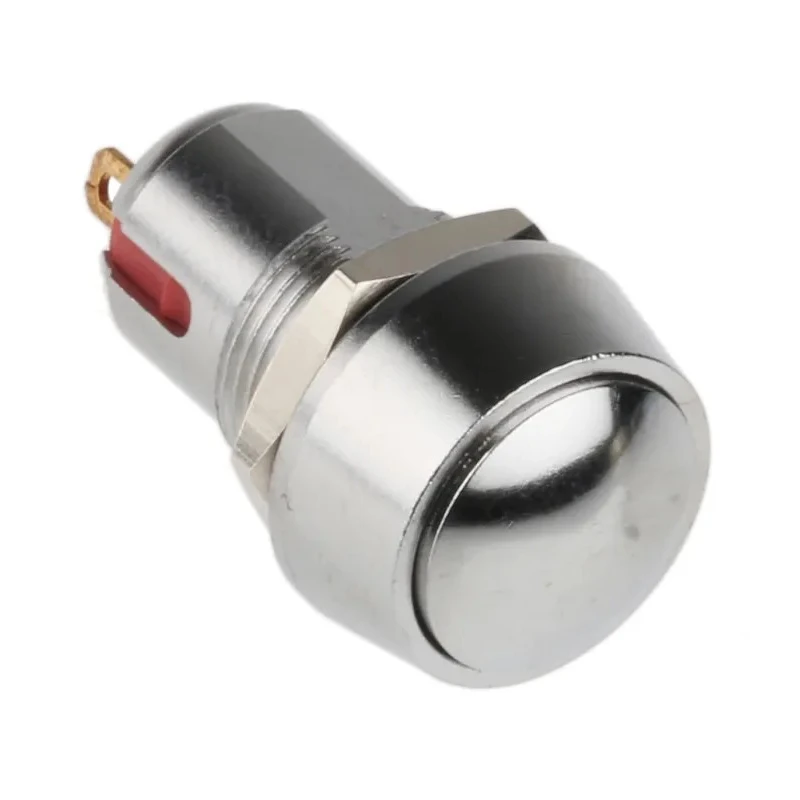

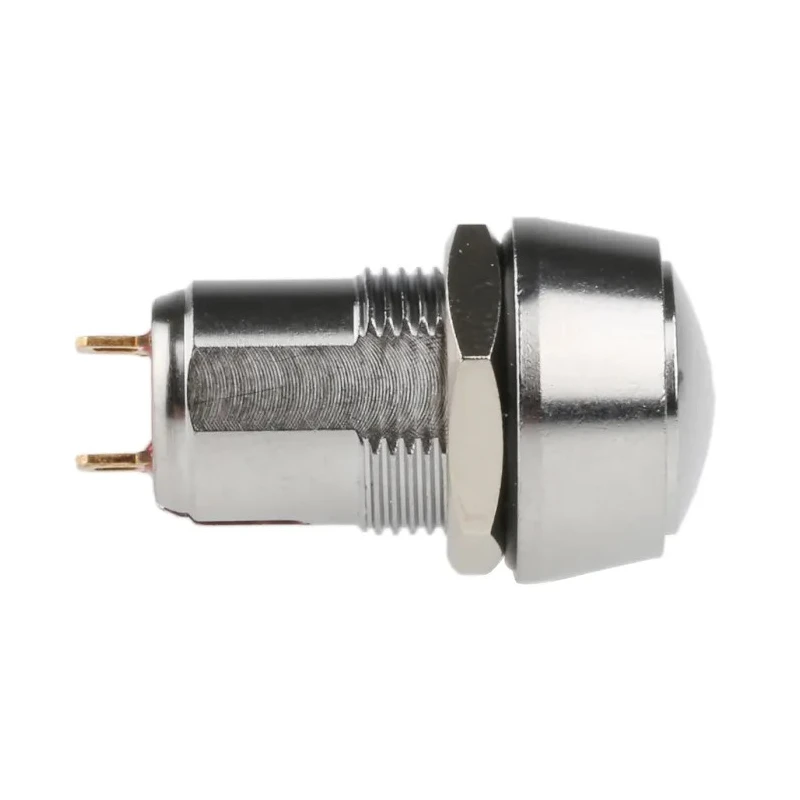

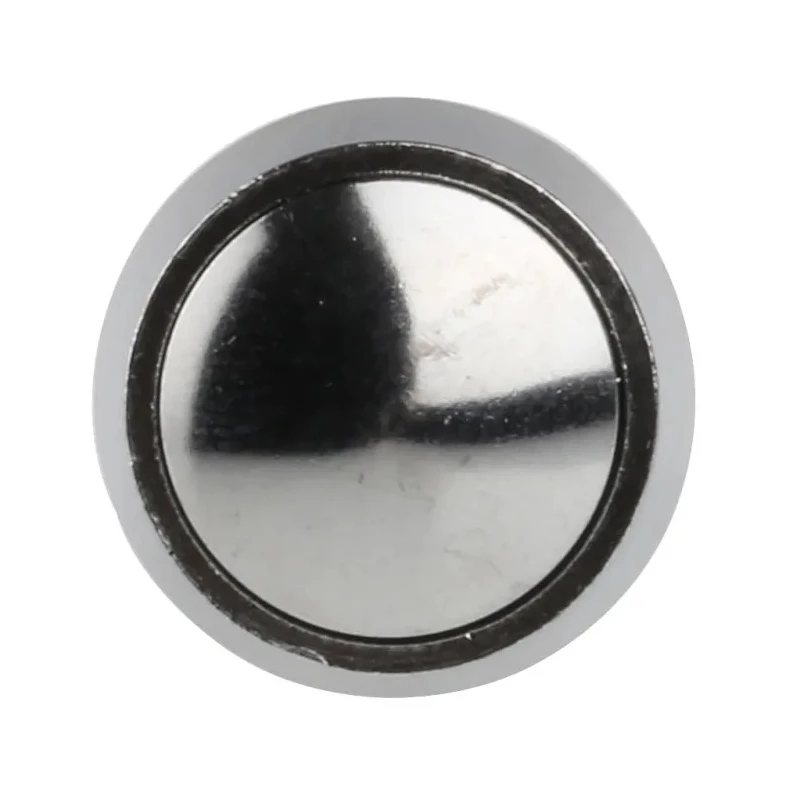

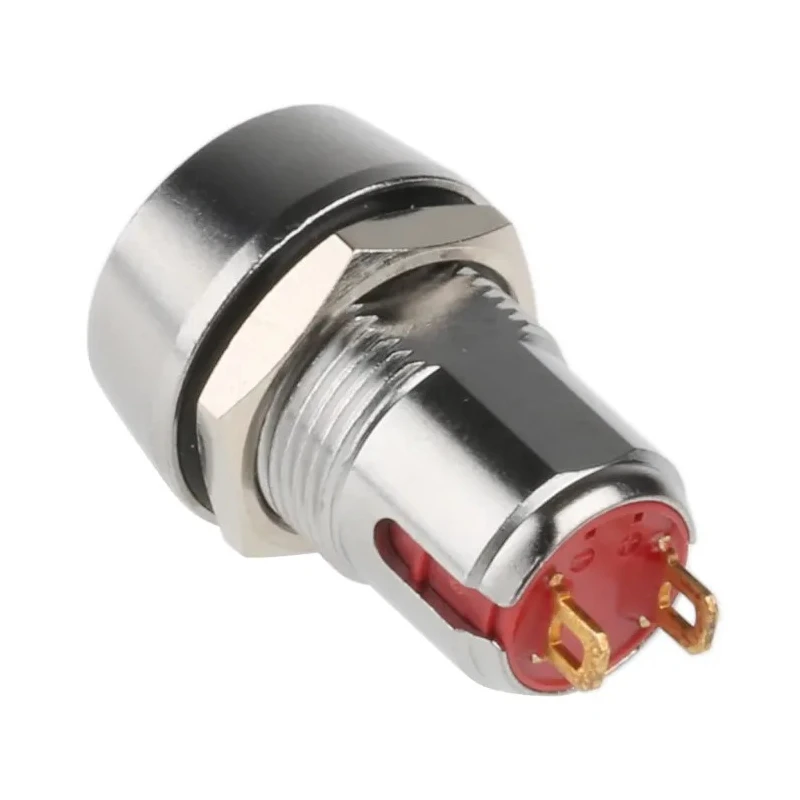

RS Pro Push Button Switch Momentary PCB SPST White LED IP67 125V AC 820-0602
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS Pro |
| Model | 820-0602 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Lug |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Contact DC Voltage | 125V |
| Actuator Style | Button |
| Switch Contact Current | 100mA |
| Contact AC Voltage | 125V ac |
| EN 50102, IEC 62262 | 2002 compliant for safety |
Key Features
- Momentary switch operation ensures temporary circuit connection.
- Designed for PCB mounting with solder lug terminals.
- Features SPST contact configuration for simple on/off control.
- White actuator with a dome-style button for easy use.
- Rated for 100 mA contact current at 24 V DC and 125 V AC voltage.
- High IP67 rating provides excellent dust and water resistance.
- Compliant with RoHS standards ensuring environmental safety.
- Mechanical lifespan of one million cycles without load ensures long durability.
Product Description
RS Pro 820-0602 Push Button Switch is a high-quality momentary single pole single throw (SPST) switch designed for PCB mounting. It features a white dome button actuator with white LED illumination, making it suitable for applications requiring visual feedback and reliable user input. The switch is rated for 125 V AC and has a contact current rating of 100 mA at 24 V DC, ensuring safe and efficient operation in low-power circuits.
The switch's IP67 rating certifies it as dust tight and protected against the effects of immersion up to 1 meter in water, making it ideal for outdoor and harsh environment installations such as public kiosks, telecommunications, and lighting control panels. Its construction includes a robust anti-vandal design with an IK02 impact protection rating, able to withstand striking energy up to 10 joules.
Designed to last, the component boasts a mechanical lifespan of one million cycles without load, ensuring reliability over extensive use. Installation is facilitated by solder lug terminals and a secure nut with a panel sealing O-ring for effective mounting and sealing.
Momentary switch operation for temporary contact closure. PCB mount type with solder lug terminals for easy circuit integration. SPST configuration for straightforward switching function. White dome actuator style for clear user interface.
IP67 rated panel to resist dust and water ingress. Contact rating of 100 mA at 24 V DC with 125 V AC voltage rating. RoHS compliant ensuring environmental and safety standards. Anti-vandal design with IK02 impact protection.
Mechanical life of one million cycles. Package includes switch, nut, and panel sealing O-ring.
This push button switch is suited for industrial, commercial, and public utility applications where reliable momentary switching and environmental durability are required. Its design and certification make it a dependable choice for engineers designing control panels and user interfaces in harsh or exposed conditions. Explore more from RS Pro's extensive range of durable and tested electrical components on EnvMart.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch has an IP67 rating, providing excellent dust tightness and protection against immersion in water up to 1 meter.
This model features a single pole single throw (SPST) contact configuration, allowing for simple on/off control.
It is rated for a contact current of 100 mA at 24 V DC and 125 V AC, ensuring safe operation in low-power circuits.
This switch is designed for PCB mounting and features solder lug terminals for easy integration into circuits.
The mechanical lifespan of this switch is rated at one million cycles without load, ensuring long-term reliability.
It can operate in temperatures as low as -30°C, making it suitable for various environmental conditions.
Yes, it is RoHS compliant and meets the EN 50102 and IEC 62262 standards for safety.
The actuator style is a dome button, and it features a white LED for visual feedback during operation.
It is suitable for industrial, commercial, and public utility applications, particularly in harsh or exposed conditions.
The package includes the switch itself, a nut for secure mounting, and a panel sealing O-ring for effective sealing.
This model features an IK02 impact protection rating, which can withstand striking energy up to 10 joules.
The push button switch is manufactured in Taiwan.
