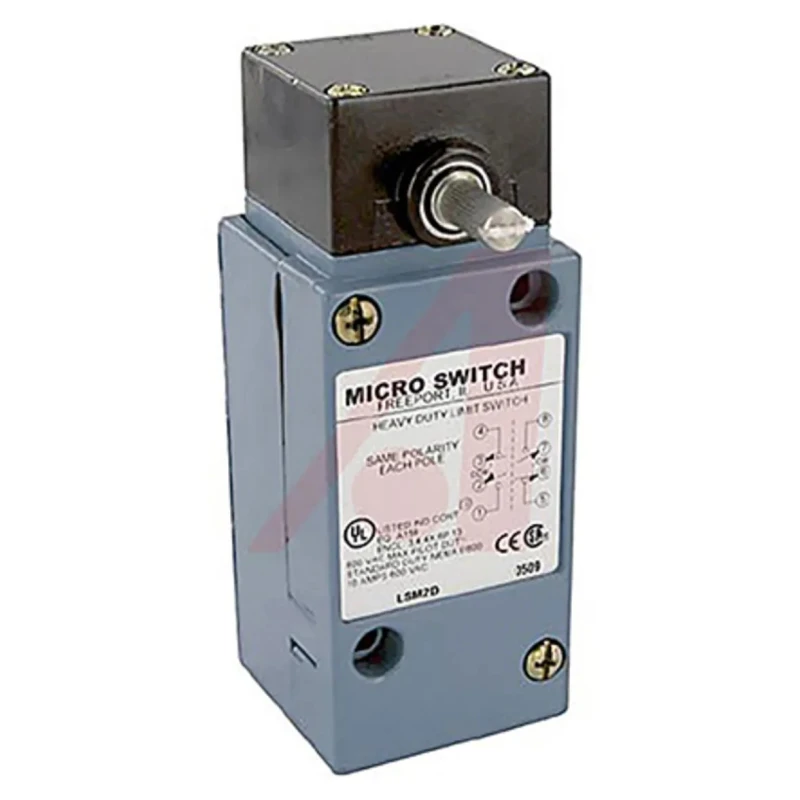

Honeywell Technologies HDLS Series Side Rotary Limit Switch, DPDT, 10A, IP65/IP66/IP67, Die Cast Zinc Epoxy Coated LSM2D

Honeywell Technologies LSM2D HDLS Series Side Rotary Limit Switch is engineered for industrial automation and control applications requiring precise mechanical position sensing. This switch offers DPDT snap-action contacts with a 10A switching capacity, supporting moderate power AC and DC loads up to 600V AC and 250V DC respectively. The device's robust die cast zinc epoxy coated housing provides excellent protection against environmental factors and complies with ingress protection ratings IP65, IP66, and IP67, making it suitable for both indoor and demanding outdoor conditions.

The side rotary actuator design enables mounting on equipment flanks for reliable end-of-travel detection and position feedback in conveyor systems, electrical switchgear, process plants, and packaging machinery. Its mechanical life of 50 million cycles significantly reduces maintenance and replacement needs. The unit operates effectively within a temperature range of -1°C to 121°C and requires an actuation torque of 0.45 Nm to trigger switching.

The 355.6 mm conduit entry size facilitates safe cabling and integration into electrical enclosures. Honeywell HDLS switches meet multiple international standards including UL, RoHS, IEC, EN, CSA, CE, and CCC, ensuring compliance and performance reliability. Applications include interlock sensing, actuated valve feedback, safety and control circuit integration, and position detection in industrial machines.

This limit switch series is designed for versatile use in industrial, manufacturing, material handling, and electrical control systems, offering durable high-performance switching suitable for challenging operational environments. The HDLS series combines robust mechanical design with high electrical ratings for dependable automation solutions.

Features a side rotary actuator for reliable position sensing. Die cast zinc epoxy coated housing ensures durable environmental protection. Capable of switching 600V AC and 250V DC loads. Mechanical life rated at 50 million cycles for long service.

Designed for side mounting with an operating torque of 0.45 Nm. Suitable for use in harsh industrial and outdoor environments. Multiple ingress protection ratings suitable for dust, water jets, and immersion. Rated for operating temperatures from -1°C to 121°C.

Conduit entry size of 355.6 mm accommodates cable glands. Explore the full range of Limit Switches on EnvMart for reliable solutions across electrical, automation, and industrial control applications.
