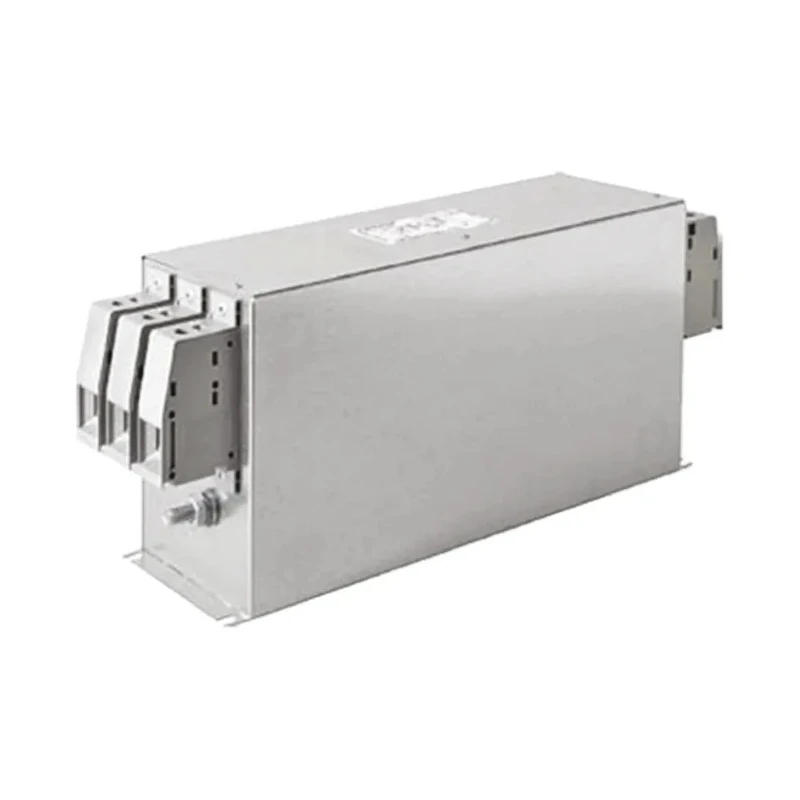

Schurter Two Stage Metal Cased Chassis Mount 3 Phase RFI Filter 30A 520V AC 50/60Hz FMBC-A91Q-3010
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 85mm |
| Length | 275mm |
| Model | FMBC-A91Q-3010 |
| Depth | 50mm |
| Mount Type | Screw |
| Operating Frequency | 50, 60Hz |
| Series | FMBC NEO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 2.5mΩ |
| Capacitance | 6.8μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 30A |
| Number of Phases | 3 |
| Leakage Current | 33mA |
| Maximum Voltage | 520V ac |
| Inductance | 1.9mH |
| Standards/Approvals | UL1283 |
| Termination Style | Screw |
| Power Loss | 6.8W |
Key Features
- Provides effective radio frequency interference suppression in electrical systems.
- Rated for maximum voltage of 520V AC and maximum current of 30 amperes.
- Features screw mount and screw termination style for robust installation.
- Operates efficiently at frequencies of 50 and 60 Hz with low power loss.
- Constructed to withstand operating temperatures from -25°C to 100°C.
- Includes 6.8 microfarad capacitance and 1.9 millihenry inductance for enhanced filtering performance.
- Compact design with dimensions 275 mm length, 85 mm height, and 50 mm depth.
- Certified to meet UL1283 standard for safety and quality assurance.
Product Description
Schurter FMBC-A91Q-3010 is a two stage metal cased chassis mount RFI filter designed to provide superior filtration and suppression of radio frequency interference in three phase electrical systems. Rated at 30A maximum current and 520V AC maximum voltage, this filter operates effectively at both 50 and 60 Hz frequencies, making it suitable for a wide range of industrial applications.
The device features secure screw mount and termination styles, ensuring reliable installation in challenging environments. It offers a capacitance of 6.8μF and inductance of 1.9mH, which contribute to its high attenuation capabilities, reducing electrical noise and improving system performance.
Dimensionally compact with a length of 275mm, a height of 85mm, and a depth of 50mm, this filter is built to manage power losses effectively, rated at just 6.8W. The resistance is low at 2.5 milliohms, and leakage current is limited to 33mA for electrical safety.
Operating temperature ranges from -25°C minimum to 100°C maximum, allowing for deployment in varied industrial settings. The filter meets UL1283 standards, guaranteeing compliance with international safety and quality regulations. It is particularly engineered for usage in frequency converters, uninterruptible power supplies (UPS), and other industrial equipment requiring robust EMI and RFI protection.
Provides effective radio frequency interference suppression in electrical systems. Rated for maximum voltage of 520V AC and maximum current of 30 amperes. Features screw mount and screw termination style for robust installation.
Operates efficiently at frequencies of 50 and 60 Hz with low power loss. Constructed to withstand operating temperatures from -25°C to 100°C. Includes 6.8 microfarad capacitance and 1.9 millihenry inductance for enhanced filtering performance.
Compact design with dimensions 275 mm length, 85 mm height, and 50 mm depth. Certified to meet UL1283 standard for safety and quality assurance. Ideal for use in frequency converters, UPS systems, and industrial power line filtering.
This Schurter FMBC NEO series filter is an excellent choice for enhancing the reliability and performance of industrial power systems by minimizing electromagnetic disturbance. Explore EnvMart for a complete catalog of EMI and RFI filters suited to diverse industrial and commercial needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 30 amperes.
It is rated for a maximum voltage of 520V AC.
This unit operates efficiently at frequencies of 50 and 60 Hz.
It features a screw mount and screw termination style for installation.
The dimensions are 275 mm in length, 85 mm in height, and 50 mm in depth.
It includes a capacitance of 6.8 microfarads and an inductance of 1.9 millihenries.
The operating temperature range is from -25°C to 100°C.
The power loss is rated at just 6.8 watts.
The leakage current is limited to 33 milliamperes.
It is certified to meet the UL1283 standard for safety and quality assurance.
The resistance of this model is 2.5 milliohms.
