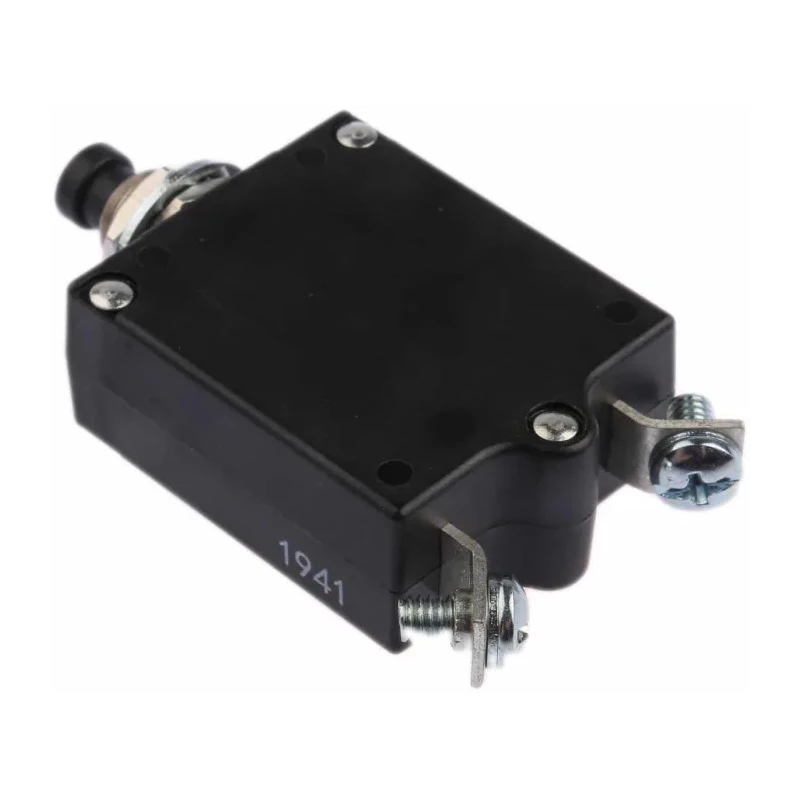

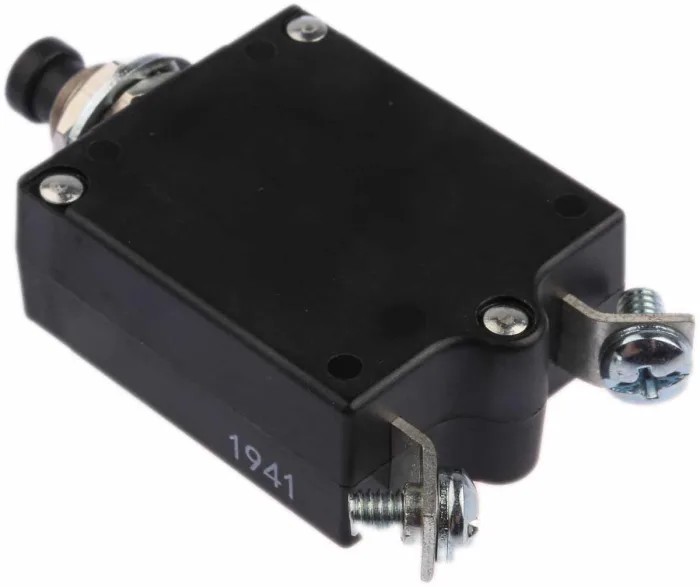

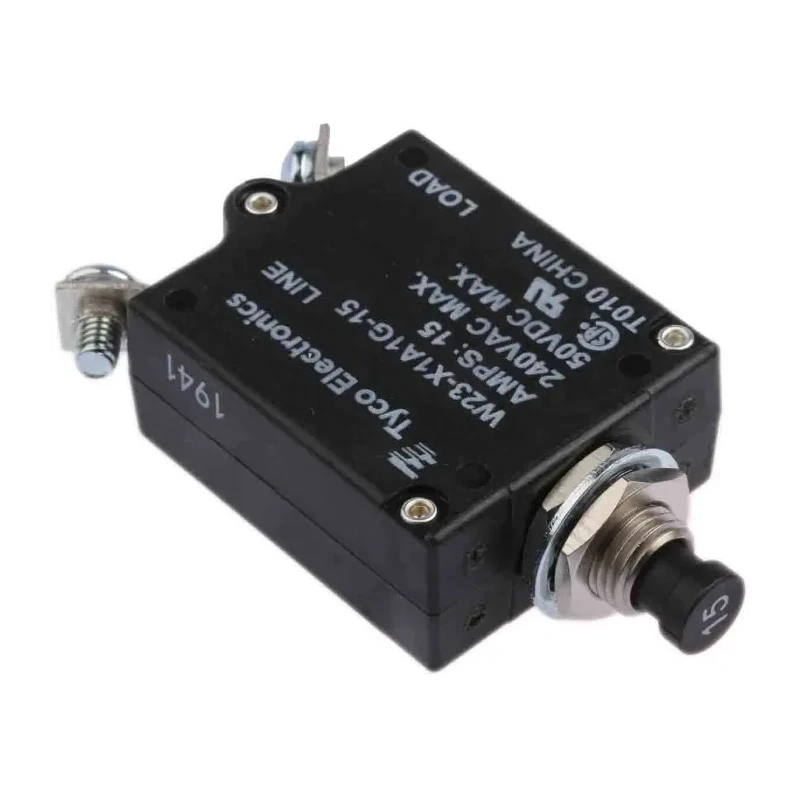

TE Connectivity Thermal Circuit Breaker 15A Current Rating 1-Pole Direct Mount W23-X1A1G-15
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 17.52mm |
| Model | W23-X1A1G-15 |
| Width | 17.52mm |
| Mount Type | Direct |
| Current Rating | 15A |
| Series | W23 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Rated AC voltage is 240V AC ensuring compatibility with standard AC systems.
- Rated DC voltage stands at 50V DC suitable for DC circuit protection.
- Breaking capacity is rated for 1000A providing effective fault current interruption.
- Thermal tripping mechanism safeguards circuits from thermal overload situations.
- Compact width and height dimensions of 17.52mm allow for space-saving panel installations.
- Screw terminal type offers secure and straightforward electrical connections.
- Toggle switch reset actuator type facilitates easy manual resetting of the breaker.
- Mounting is direct type with an 18.8 mm mount hole size for stable mounting.
Product Description
TE Connectivity model W23-X1A1G-15 is a high-quality Thermal Circuit Breaker designed for precise current protection in industrial and commercial electrical systems. It features a 15A current rating with 1-pole direct mounting, engineered to protect circuits from overcurrent thermal faults.
This circuit breaker operates at a rated AC voltage of 240V and DC voltage of 50V, suitable for diverse electrical applications. With a breaking capacity rated at 1000A, it ensures reliable interruption of high fault currents, enhancing safety in electrical installations.
The device uses a thermal tripping mechanism that responds to excessive heat, protecting wiring and components by safely interrupting current flow. Its toggle switch reset actuator allows for simple manual resetting after trips without replacing components, adding convenience during maintenance.
Compact dimensions, with a width and height of 17.52mm, make this breaker fitting for installations where space optimization is critical. The secure screw terminal type facilitates robust and reliable electrical connections, ensuring long-lasting performance.
Mounting is direct with an 18.8 mm mount hole size, providing secure attachment in panels or enclosures. Compliance with CE and RoHS standards guarantees adherence to environmental and safety regulations.
TE Connectivity thermal circuit breakers are widely used in industrial automation, electrical distribution, HVAC systems, and other commercial and industrial electrical networks requiring reliable circuit protection.
Rated AC voltage 240V AC. Rated DC voltage 50V DC. Current rating 15A with single pole. Thermal tripping mechanism with toggle switch reset. Compact 17.52mm width and height. Direct mount with 18.8 mm hole size. Screw terminal connection for secure wiring.
Breaking capacity of 1000A for fault current interruption. Conforms to CE and RoHS standards. Explore more Thermal Circuit Breakers and electrical protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 15A, making it suitable for various electrical applications requiring that level of protection.
The rated AC voltage is 240V AC, while the rated DC voltage is 50V DC, ensuring compatibility with standard electrical systems.
It has a breaking capacity rated at 1000A, which allows for effective interruption of high fault currents.
The thermal tripping mechanism responds to excessive heat, protecting circuits by interrupting current flow during thermal overload situations.
The mounting hole size for the W23-X1A1G-15 is 18.8 mm, designed for direct mounting in panels or enclosures.
It features a toggle switch reset actuator, allowing for easy manual resetting after a trip without needing to replace components.
This unit has compact dimensions, with both a width and height of 17.52 mm, suitable for space-constrained installations.
It utilizes a screw terminal type, which provides secure and straightforward electrical connections.
The device conforms to CE and RoHS standards, ensuring it meets environmental and safety regulations.
This thermal circuit breaker is widely used in industrial automation, electrical distribution, and HVAC systems, among other commercial electrical networks.
The circuit breaker belongs to the W23 series, which includes various models designed for thermal protection.
The country of origin for this model is India, indicating its manufacturing location.
