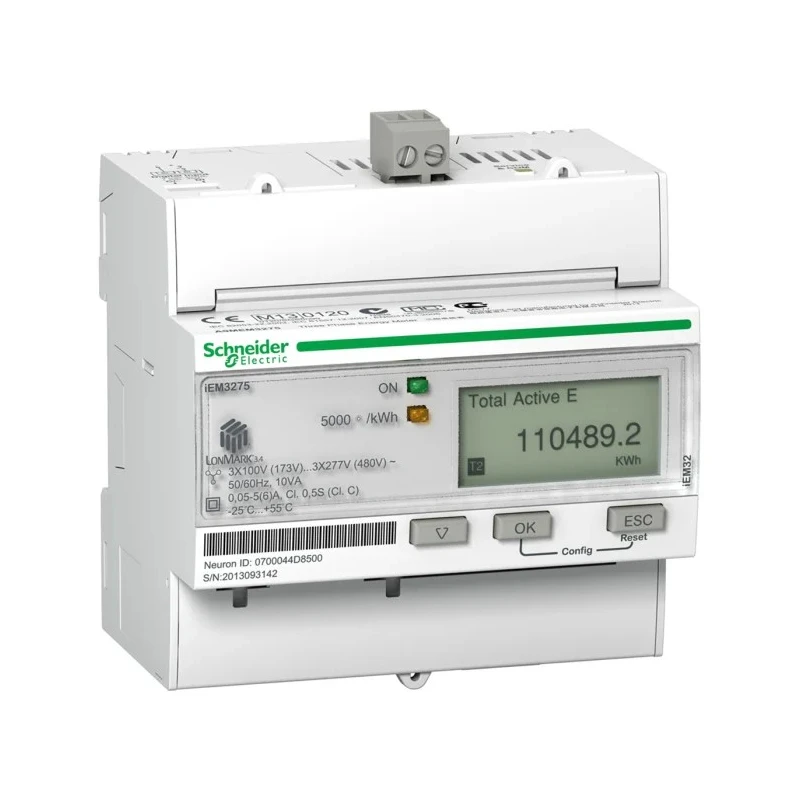

Schneider Electric 3 Phase Electronic LCD Energy Meter Acti9 iEM Series Model A9MEM3275
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Schneider Electric |
| Model | A9MEM3275 |
| Depth | 69mm |
| Number of inputs | 1 |
| Series | Acti9 iEM |
| Maximum Operating Temperature | 55°C |
| Meter Type | Electronic |
| Number Of Digits | 8 |
| Minimum Operating Temperature | -25°C |
| Digit height | 85mm |
| Number of Phases | 3 |
| Cutout Height | 95mm |
| Cutout Width | 90mm |
| Maximum Measurement | 63 A |
Key Features
- This meter supports up to 63 A maximum measurement capacity.
- The device features a compact 95mm height by 90mm width cutout for installation.
- Designed to operate reliably in temperatures from -25°C to 55°C.
- Houses internal clock for last reset and 48h power outage memory.
- Compliant with international standards including CE, IEC, UL, and MID certifications.
- Suitable for detailed energy consumption monitoring and on-site generation analysis.
- Includes multi-tariff selection capabilities via digital inputs or internal clock.
- Compact DIN rail mounting with secure locking clips for modular enclosures.
Product Description
Schneider Electric A9MEM3275 is a 3 Phase Electronic LCD Energy Meter from the Acti9 iEM series, designed for accurate energy metering. It features an 8-digit LCD display and supports a maximum measurement of 63 A. This meter is suitable for installation with a cutout of 95mm height and 90mm width, and a depth of 69mm.
Operating within a temperature range of -25°C to 55°C, the meter is built to ensure reliability in various environments. It complies with international standards such as CE, cULus, EN 50470-3, IEC 60529, IEC 61010, IEC 61036, IEC 61557-12, IEC 62053-21, IEC 62053-23, MID EN 50470-1 and EN 50470-3, and UL 61010-1.
The device includes an internal clock that saves the date and time of the last reset and can retain this information for up to 48 hours during power outages. The meter supports multi-tariff selection through digital inputs or the internal clock, allowing flexible billing and energy management options.
This compact meter mounts easily on DIN rails using two clips, fitting modular enclosures for industrial and commercial applications. It measures both active and reactive energy, providing a comprehensive overview of energy consumption and on-site generation with full four-quadrant measurement.
Typical applications include bill checking to ensure accurate charges, tenant sub-billing, and aggregation and allocation of energy consumption costs per area, usage, shift, or time periods within the facility.
This meter supports up to 63 A maximum measurement capacity. The device features a compact 95mm height by 90mm width cutout for installation. Designed to operate reliably in temperatures from -25°C to 55°C. Houses internal clock for last reset and 48h power outage memory.
Compliant with international standards including CE, IEC, UL, and MID certifications. Suitable for detailed energy consumption monitoring and on-site generation analysis. Includes multi-tariff selection capabilities via digital inputs or internal clock.
Compact DIN rail mounting with secure locking clips for modular enclosures. Provides active and reactive energy measurement with accuracy classes 1.0 and 2 respectively. Ideal for industrial, commercial, and utility billing applications.
Explore Schneider Electric Acti9 iEM energy meters and other advanced measuring instruments in the Energy Meter category at EnvMart for reliable power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric A9MEM3275 has a maximum measurement capacity of 63 A.
This model requires a cutout of 95mm in height and 90mm in width for installation.
The device operates reliably within a temperature range of -25°C to 55°C.
It features an 8-digit LCD display for clear readings.
It complies with several international standards, including CE, IEC, UL, and MID certifications.
The internal clock saves the date and time of the last reset and retains this information for up to 48 hours during power outages.
This unit is designed for compact DIN rail mounting using secure locking clips, suitable for modular enclosures.
It measures both active and reactive energy, providing comprehensive energy consumption data.
Typical applications include bill checking, tenant sub-billing, and allocation of energy consumption costs per area or time periods.
The depth of this model is 69mm.
The Schneider Electric A9MEM3275 supports 3 phases.
Yes, it includes multi-tariff selection capabilities via digital inputs or the internal clock.
