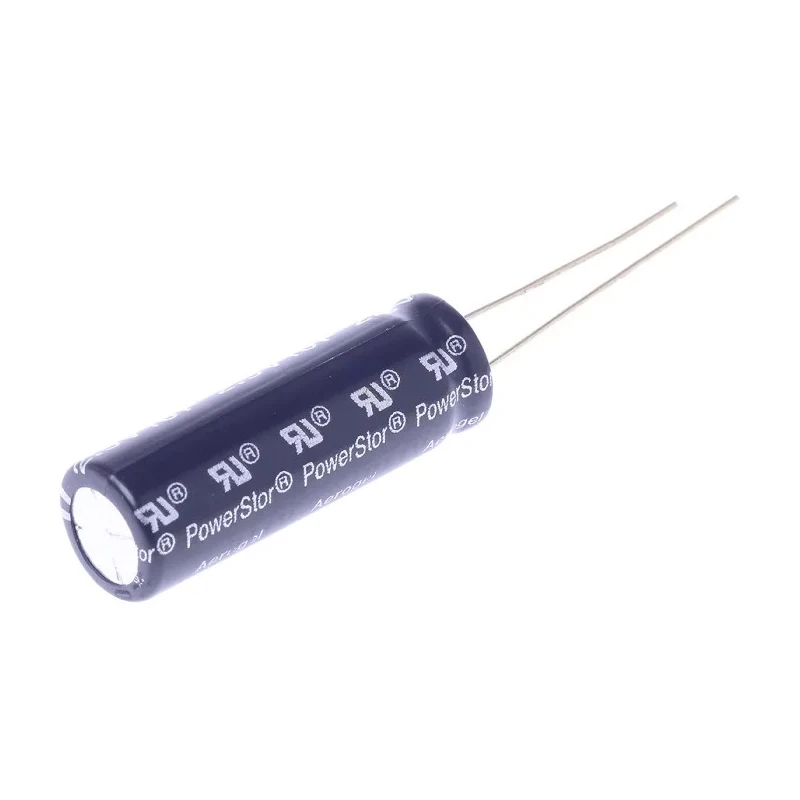

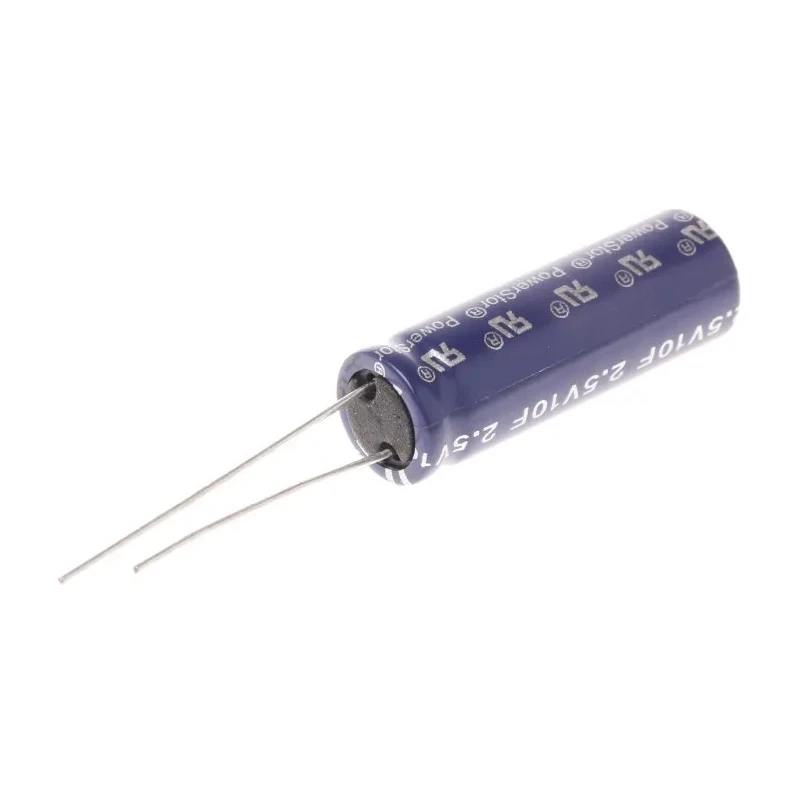

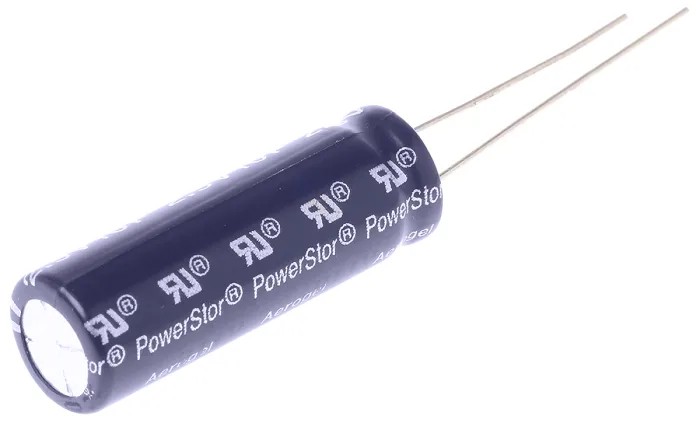

Eaton 10 F 2.5V dc Electric Double Layer Supercapacitor Through Hole Mount HB1030-2R5106-R

Eaton HB1030-2R5106-R is a high-performance supercapacitor from the Supercap HB series designed for industrial and electronic applications requiring rapid charge and discharge cycles. It features a 10 F capacitance rating with a nominal voltage of 2.5V dc, and is constructed using Electric Double Layer Capacitor (EDLC) technology, enabling ultra-high capacitance in a compact through hole mount form factor.

The capacitor offers a capacitance tolerance of -10 to 30%, balancing precision with manufacturing flexibility. Its low Equivalent Series Resistance (ESR) of 60mΩ facilitates high power density applications, supporting large current demand with minimal energy loss. The leakage current rating is maintained at 20μA, contributing to its energy efficiency.

This Eaton supercapacitor complies with RoHS and UL standards, meeting important safety and environmental benchmarks. Designed for stable operation across a wide temperature range from -25°C to 70°C, it provides reliable performance in various industrial, electronic, and automotive systems that do not require automotive standards.

Physical dimensions include a diameter of 10.5mm and a height and depth of 31.5mm, making it suitable for compact PCB designs with through hole mounting using 0.6mm leads spaced at 5mm pitch. Its polarity is positive, and the lifetime expectancy is approximately 1000 hours under normal operating conditions.

This component is ideal for energy storage, power backup, and smoothing applications in electronic circuits within industrial, commercial, manufacturing, and laboratory domains. Utilizes Electric Double Layer Capacitor (EDLC) technology for ultra-high capacitance.

Capacitance tolerance ranges from -10 to 30% ensuring reliable performance. Features low Equivalent Series Resistance (ESR) of 60mΩ for high power density. Leakage current is 20μA, suitable for efficient energy storage. Meets RoHS and UL standards for compliance and safety.

Operating temperature ranges from -25°C to 70°C for diverse environments. Compact size with 10.5mm diameter and 31.5mm height and depth. Positive polarity with 0.6mm lead diameter and 5mm lead pitch for through hole mounting.

Lifetime rated at 1000 hours assuring long term durability. Explore more products in the Supercapacitors category to find complementary components for your electronic designs and projects.
