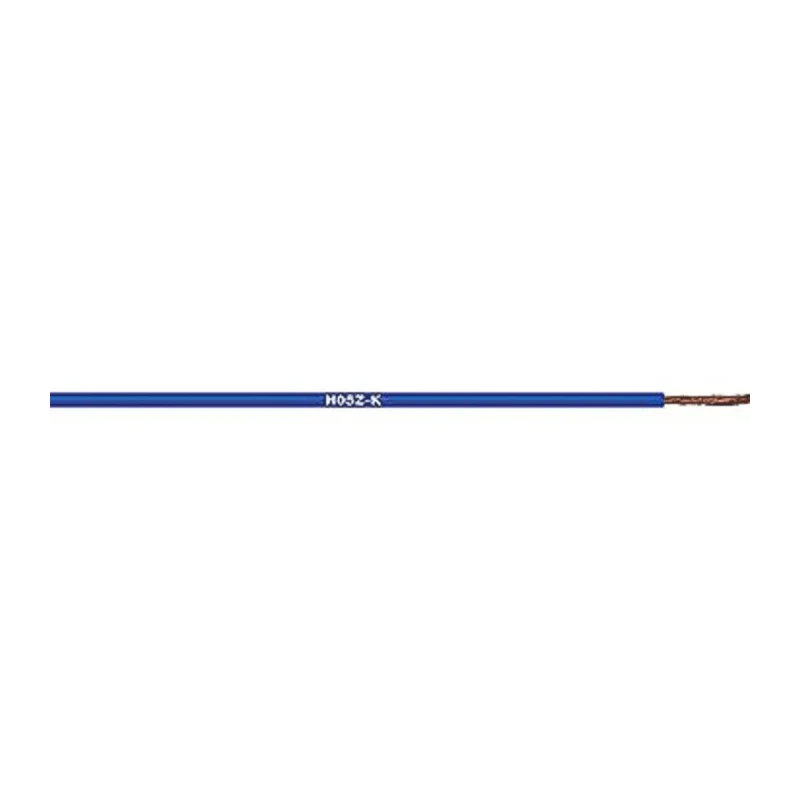

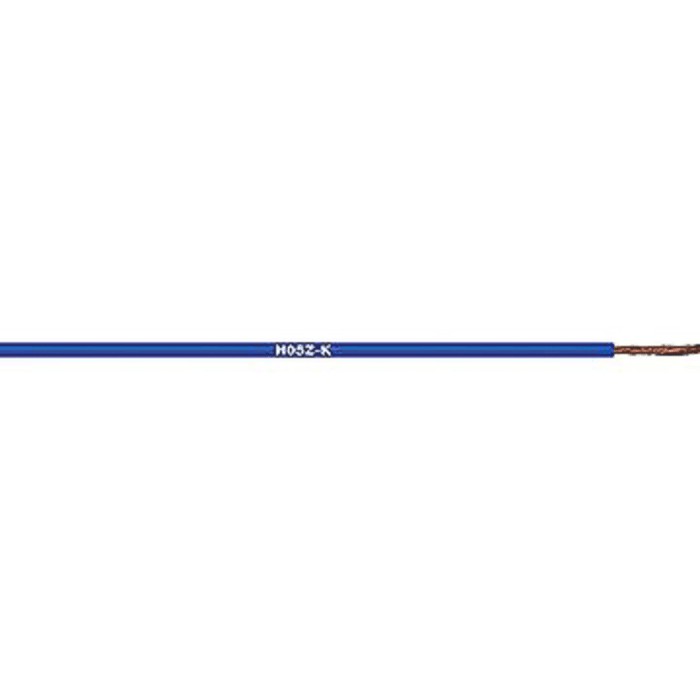

Lapp H05Z-K Series Blue 0.75 mm² Low Smoke Zero Halogen (LSZH) Cross Linked Insulation Hook Up Wire 100 m 4725022

Lapp 4725022 H05Z-K Series Blue 0.75 mm² Hook Up Wire features a low smoke zero halogen (LSZH) cross-linked insulation, making it a critical component for safe and reliable internal wiring in industrial, electrical, and commercial installations. With a rated voltage of 300/500V and an operational temperature range from -40°C to +90°C, this wire withstands challenging environments and maintains performance.

The 0.75 mm² cross-sectional bare copper conductor provides efficient electrical conduction for low-voltage, low-current applications including control panels, computer wiring, circuit boards, and various consumer appliances. The bright blue jacket enables easy color-coded identification during installation.

This 100 meter length roll offers ample supply for multiple jobs, while the flexible design with a minimum bending radius of four times the 2.8 mm outer diameter facilitates installation in complex routing systems.

The wire complies with stringent standards such as BS EN 50525-3-41 for cable quality and IEC 60332-1-2 for flame retardancy, supporting enhanced workplace safety via low smoke and zero halogen emissions in case of fire.

Applications range widely across offshore installations, underground railway wiring, power plant wiring systems, nuclear facility electronics, and hospital electronic equipment wiring, reflecting the product's versatility and safety credentials in industrial and commercial sectors.

The wire features a 0.75 mm² cross-sectional area for efficient electrical conduction. It comes in a 100 meter length, suitable for multiple installations. The blue LSZH cross-linked insulation jacket enhances fire safety by reducing smoke and toxic gas emissions.

Operates reliably between -40°C and +90°C in fixed installations. The conductor is made of bare copper, ensuring excellent conductivity. Its outer diameter is 2.8 mm, with a flexible design allowing a minimum bending radius of four times the diameter.

Compliant with cable standard BS EN 50525-3-41 and flame retardant IEC 60332-1-2 specifications. Ideal for control panels, computer wiring, circuit boards, and consumer appliances. Suitable for offshore installations, underground railways, power plants, nuclear facilities, and hospital electronics.

Explore Lapp products and similar cables on EnvMart for reliable industrial and electrical wiring solutions.
