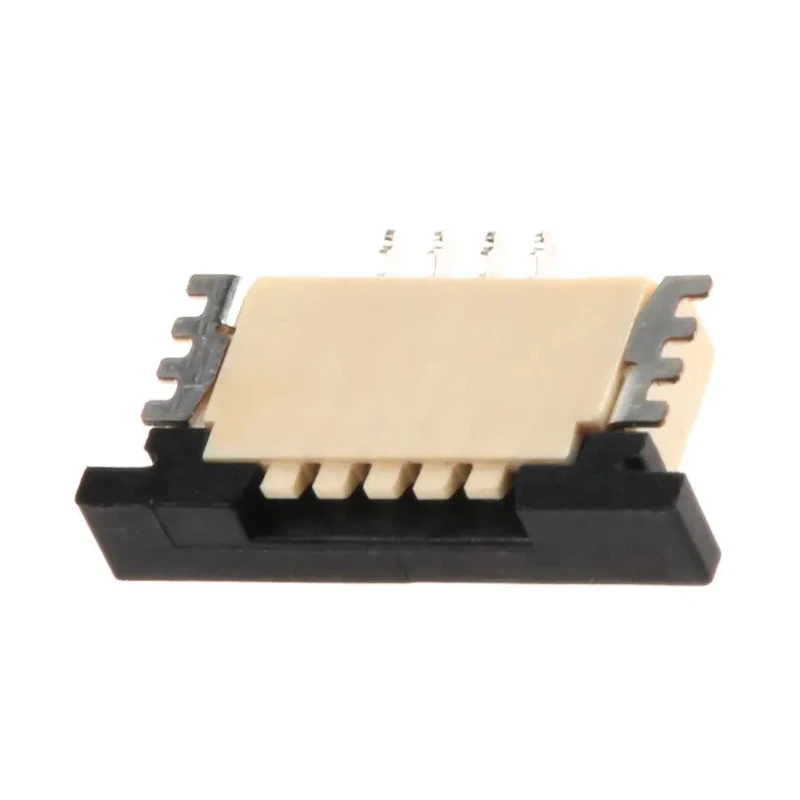

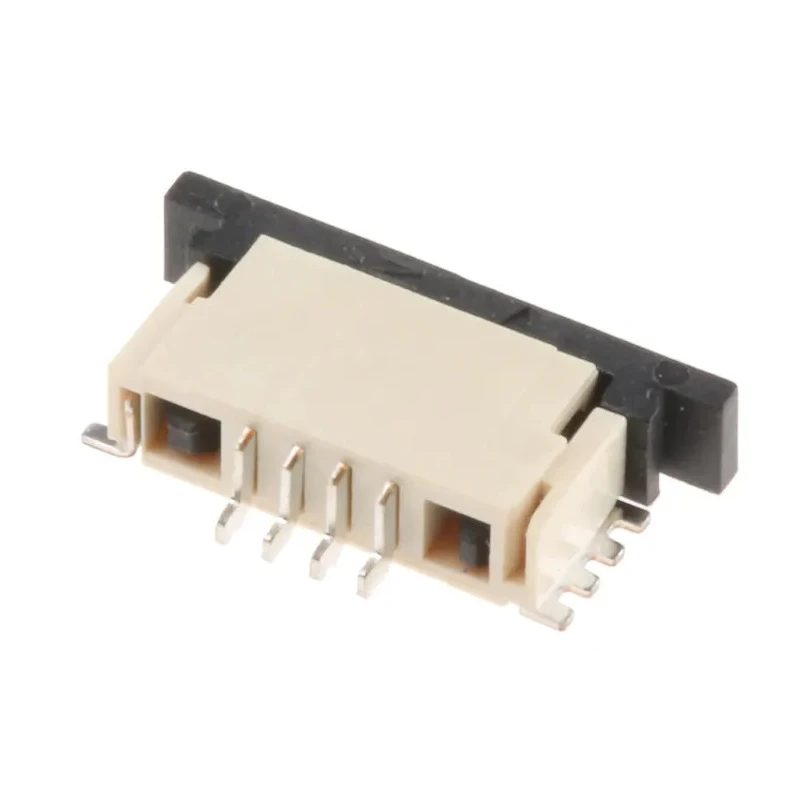

TE Connectivity FPC 1 mm Pitch 4 Way Right Angle Female FPC Connector, Solder 84952-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 84952-4 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Compact design with 1 mm pitch suitable for tight PCB layouts.
- Zero Insertion Force (ZIF) mechanism ensures easy cable insertion and reduced contact wear.
- Right angle orientation optimizes space utilization on circuit boards.
- Phosphor bronze contacts plated with tin over nickel provide reliable conductivity and corrosion resistance.
- Liquid Crystal Polymer housing offers durability and high temperature resistance.
- Supports current rating of 1A and voltage up to 200V AC.
- Operating temperature range from -40°C to 85°C suits diverse environments.
- Slide lock actuator secures cable connection without additional tooling.
Product Description
TE Connectivity 84952-4 FPC Connector 1 mm Pitch 4 Way Right Angle is a new, surface mount female flexible printed circuit (FPC) connector designed for solder termination. Its compact 1 mm pitch enables efficient signal routing on printed circuit boards where space constraints exist.
The connector features a Zero Insertion Force (ZIF) slide lock actuator, facilitating easy cable installation with minimal wear and increased mating cycle life. This locking mechanism ensures a secure connection, ideal for high vibration and industrial settings.
Constructed with phosphor bronze contacts plated with tin over nickel, it ensures excellent electrical conductivity and resistance against oxidation. The housing is made from durable Liquid Crystal Polymer material which withstands operating temperatures from -40°C to 85°C, making it versatile for harsh environments.
This 4-way connector allows a current rating of 1 amp and voltage rating of 200V AC, suited for a wide range of signal and low power applications. Its right angle orientation optimizes PCB layout for compact device designs.
Applications span various industries including handheld scanners, set-top boxes, PCs and peripherals, industrial equipment, business machines, and medical devices. The solder tabs provide supplementary mechanical retention on the PCB, ensuring robust assembly durability even in dynamic environments.
Compact 1 mm pitch female FPC Connector with 4 contacts. ZIF slide lock actuator for secure, tool-free cable insertion. Right angle orientation enhances PCB design flexibility. Phosphor bronze contacts with tin over nickel plating for reliable electrical performance.
Liquid Crystal Polymer housing for thermal and mechanical stability. Current rating of 1A and 200V AC voltage rating. Wide operating temperature range from -40°C to 85°C. Solder termination with tabs for increased PCB retention.
Suitable for industrial, electronic, medical, and business equipment applications. Explore more high quality connector components and related products at EnvMart to suit your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A.
It has a voltage rating of up to 200V AC.
The contacts are made of phosphor bronze, plated with tin over nickel, and the housing is constructed from Liquid Crystal Polymer.
The operating temperature range is from -40°C to 85°C.
The ZIF mechanism allows for easy cable insertion with minimal wear, enhancing the mating cycle life of the connection.
This connector features a right angle orientation, which optimizes space utilization on circuit boards.
It has 4 contacts arranged in a single row.
The connector uses solder termination, which provides supplementary mechanical retention on the PCB.
It is suitable for various applications including handheld scanners, set-top boxes, PCs, industrial equipment, and medical devices.
The pitch of this connector is 1 mm, making it suitable for tight PCB layouts.
This model is designed for surface mounting.
Yes, the ZIF slide lock actuator provides a secure connection, making it suitable for high vibration and industrial settings.
