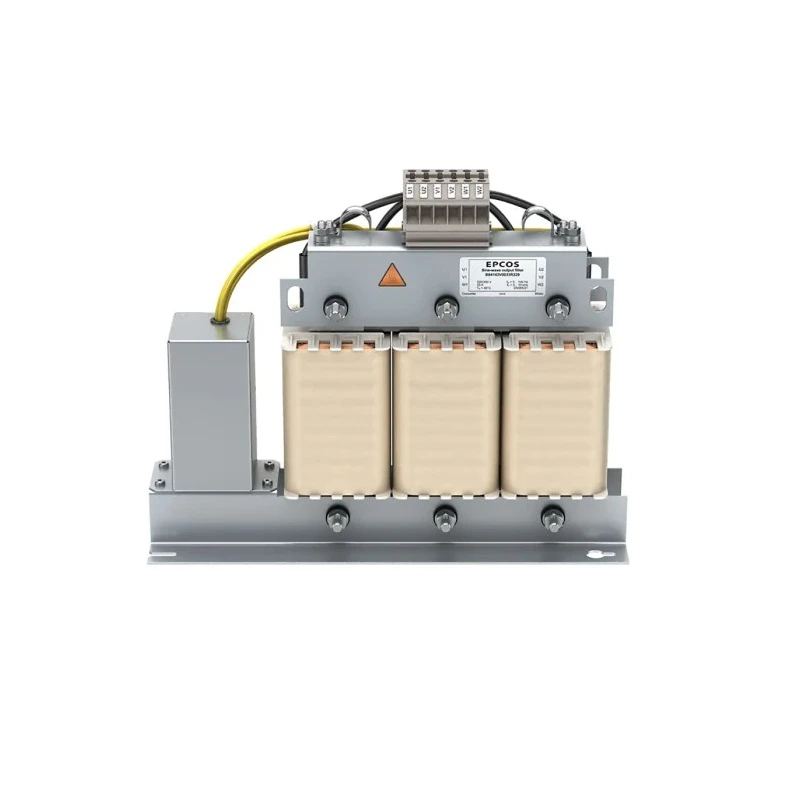

TDK Wall Mount 3 Phase EMC Filter, Terminal Block, 16 A, 520V AC, 50Hz/60Hz B84143V0016R229
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 235mm |
| Length | 275mm |
| Model | B84143V0016R229 |
| Depth | 122mm |
| Mount Type | Wall Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84143V*R/S229 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 3 |
| Maximum Voltage | 520V ac |
| Standards/Approvals | RoHS |
| Termination Style | Terminal Block |
Key Features
- Reduces motor noise and eddy current losses effectively.
- Generates sinusoidal phase-to-phase voltage with low ripple.
- Provides dv/dt reduction for stable operation.
- Optimized for long motor cables and full load operation.
- Supports natural cooling for enhanced reliability.
- Easy to install with a compact wall mount design.
- Suitable for frequency converters in motor drives.
- Applications include elevators, pumps, conveyor, and HVAC systems.
Product Description
TDK B84143V0016R229 is a high-performance Wall Mount EMC Filter designed for 3 Phase electrical systems. Rated for a maximum current of 16 A and operating voltage of 520V AC, it supports frequencies of 50 Hz and 60 Hz. The Terminal Block termination style ensures secure and reliable electrical connections for industrial and commercial use.
This EMC filter effectively reduces motor noise and minimizes eddy current losses, producing a sinusoidal phase-to-phase voltage with very low ripple. It offers dv/dt reduction that stabilizes the output when used with frequency converters. The device is optimized for use with long motor cables, ensuring reliable operation under full load conditions. Natural cooling improves durability without the need for additional cooling accessories.
Installation is straightforward due to its wall mount configuration, making it an ideal choice for applications involving frequency converters and motor drives. Typical industries and uses include elevators, pumps, conveyor systems, and HVAC (heating, ventilation, and air conditioning) equipment, where filtering and noise reduction are critical for performance and longevity.
The compact dimensions (Length: 275mm, Height: 235mm, Depth: 122mm) and compliance with RoHS standards demonstrate the product's quality and environmental considerations. It is manufactured in Hungary under strict quality control to ensure dependable operation.
Reduces motor noise and eddy current losses effectively. Generates sinusoidal phase-to-phase voltage with low ripple. Provides dv/dt reduction for stable operation. Optimized for long motor cables and full load operation.
Supports natural cooling for enhanced reliability. Easy to install with a compact wall mount design. Suitable for frequency converters in motor drives. Applications include elevators, pumps, conveyor, and HVAC systems.
Ensure wiring between inverter and filter is shorter than 10 meters for optimal performance. Explore EnvMart’s extensive range of electronic filters and components for diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 16 A.
This EMC filter operates at a maximum voltage of 520V AC.
It supports operating frequencies of 50 Hz and 60 Hz.
The dimensions are 275 mm in length, 235 mm in height, and 122 mm in depth.
It features a wall mount design for easy installation.
The operating temperature range is from -25°C to 85°C.
This model uses a terminal block termination style for secure connections.
It is suitable for applications such as elevators, pumps, conveyor systems, and HVAC equipment.
It is manufactured in Hungary under strict quality control standards.
Yes, it complies with RoHS standards.
The dv/dt reduction feature stabilizes the output when used with frequency converters, enhancing performance.
It is recommended to keep the wiring between the inverter and filter shorter than 10 meters for optimal performance.
