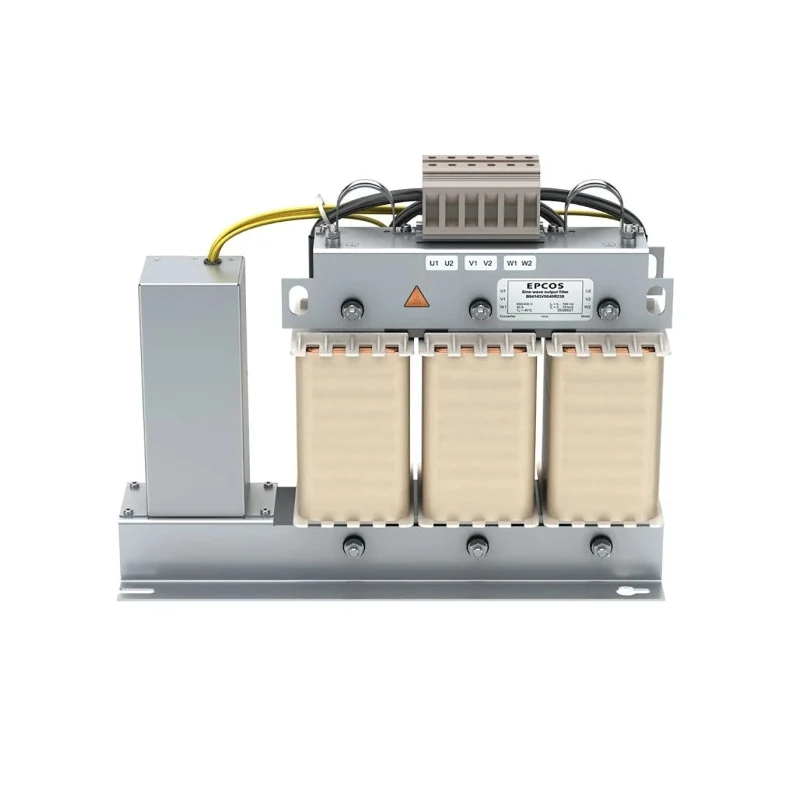

TDK Wall Mount EMC Filter 40 A 690V AC 50Hz, 60Hz Terminal Block 3 Phase B84143V0040R230
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 355mm |
| Length | 440mm |
| Model | B84143V0040R230 |
| Depth | 146mm |
| Mount Type | Wall Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84143V*R/S230 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 40A |
| Number of Phases | 3 |
| Maximum Voltage | 690V ac |
| Standards/Approvals | RoHS |
| Termination Style | Terminal Block |
Key Features
- Reduces motor noise and minimizes eddy current losses effectively.
- Generates sinusoidal phase-to-phase voltage with low ripple for stable operation.
- Reduces dv/dt to protect motor and equipment components.
- Easy to install with wall mount design and terminal block termination style.
- Optimized for long motor cables and operation under full load with natural cooling.
- Requires wiring between inverter and filter to be shorter than 10 meters for optimal performance.
- Operates reliably within temperature range from -25°C to 85°C.
- Designed for frequency converters in motor drives such as elevators, pumps, conveyors, and HVAC systems.
Product Description
TDK B84143V0040R230 Wall Mount EMC Filter is engineered for efficient reduction of motor noise and eddy current losses in three-phase systems. Rated for a maximum current of 40 A and a voltage of 690V AC, it supports operation at standard industrial frequencies of 50Hz and 60Hz. The filter delivers sinusoidal phase-to-phase voltage output with minimal ripple, enhancing motor drive quality and longevity.
Featuring a wall mount design and terminal block termination, installation is straightforward and reliable. The device is optimized for use with long motor cable runs and full load operation, utilizing natural cooling to maintain performance without additional cooling equipment. Proper wiring between inverter and filter is critical; connection lengths must be kept under 10 meters for optimal effectiveness.
The operating temperature range of -25°C to 85°C ensures suitability for diverse industrial and commercial environments. Typical applications include frequency converters for motor drives in elevators, pumps, conveyor systems, and HVAC solutions, highlighting its versatility in industrial automation and power management.
Reduces motor noise and minimizes eddy current losses effectively. Generates sinusoidal phase-to-phase voltage with low ripple for stable operation. Reduces dv/dt to protect motor and equipment components. Easy to install with wall mount design and Terminal Block termination style.
Optimized for long motor cables and operation under full load with natural cooling. Requires wiring between inverter and filter to be shorter than 10 meters for optimal performance. Operates reliably within temperature range from -25°C to 85°C.
Designed for frequency converters in motor drives such as elevators, pumps, conveyors, and HVAC systems.
TDK's EMC Filters are RoHS compliant and manufactured in Hungary, ensuring high quality and conformance to environmental standards. This product supports industrial, manufacturing, HVAC, and automation applications enhancing motor drive systems' reliability and efficiency.
Explore the EnvMart catalog for a wide range of EMC filters and power line filters suitable for various industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 40 A.
It supports a maximum voltage of 690V AC.
This EMC filter operates at standard industrial frequencies of 50Hz and 60Hz.
The operating temperature range is from -25°C to 85°C.
It features a wall mount design, making installation straightforward.
The termination style is a terminal block, which facilitates easy connections.
The dimensions are 440mm in length, 355mm in height, and 146mm in depth.
It is designed for frequency converters in motor drives, such as those used in elevators, pumps, conveyors, and HVAC systems.
It effectively reduces motor noise and minimizes eddy current losses.
Wiring between the inverter and the filter must be shorter than 10 meters for optimal performance.
Yes, this EMC filter is RoHS compliant, ensuring it meets environmental standards.
It is manufactured in Hungary.
