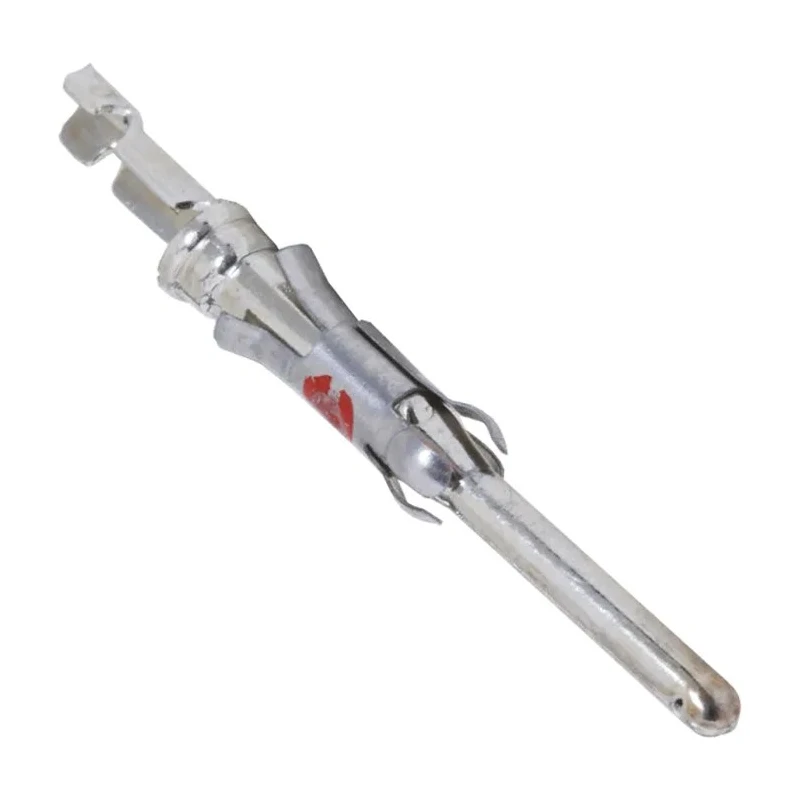

TE Connectivity Type III Series Male Crimp Terminal 26 AWG Min Crimp, 24 AWG Max, 13A Current, Tin Plated Brass 1-66107-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 13A |
| Length | 27.1mm |
| Gender | Male |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -55°C |
| For Use With | G Series and M Series Connector Housings, CPC |
| Standards/Approvals | EU ELV 2000/53/EC, EU RoHS 2011/65/EU |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 24AWG |
Key Features
- Constructed with brass contact material plated with tin for reliable conductivity.
- Supports a maximum current rating of 13 amps for effective power transmission.
- Compatible with Type III series connectors and suitable for crimp termination.
- Operates efficiently within a temperature range from -55°C to 90°C.
- Physical length of the terminal is 27.1 mm, facilitating secure connections.
Product Description
TE Connectivity 1-66107-1 Type III Series Male Crimp Terminal is engineered for precise and durable connections in electrical applications. This crimp terminal supports wire sizes from 26 AWG minimum to 24 AWG maximum, making it versatile for various wiring needs in electronics and power connectors.
Manufactured using brass contact material and plated with tin, this terminal ensures excellent electrical conductivity and corrosion resistance. It is compatible with G Series and M Series Connector Housings, as well as CPC series, facilitating flexible integration in diverse connector systems.
The terminal supports a maximum current of 13 amperes, suitable for moderate power applications. Its operating temperature range of -55°C to 90°C allows reliable performance under varying environmental conditions, adhering to EU ELV 2000/53/EC and EU RoHS 2011/65/EU standards for environmental and safety compliance.
With a length of 27.1 mm and a crimp termination type, installation is straightforward requiring suitable crimping tools for optimal results. Recommended tools include stock numbers 459-6252 with die set 452-6679 for 1.5 - 2.5 mm² contacts, and stock number 849-114 with die set 372-440 for other contacts. For extraction operations, tool stock number 162-5723 is suggested.
This male Crimp Terminal suits a wide range of industrial, electronic, and power connector applications where dependable electrical connections are critical. It enhances production efficiency by being supplied in bags ready for insertion into machinery, optimizing assembly processes.
Constructed with tin-plated brass contact for durability and conductivity. Supports wire sizes from 26 AWG to 24 AWG enabling versatile use. Rated for 13A current, suitable for moderate electrical loads. Conforms to EU ELV 2000/53/EC and RoHS 2011/65/EU environmental standards.
Designed for crimp termination compatible with G Series and M Series connector housings. Explore the comprehensive range of TE Connectivity connectors and tooling at EnvMart for reliable electrical system design and maintenance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 13 amperes, suitable for moderate power applications.
This terminal supports wire sizes from 26 AWG minimum to 24 AWG maximum, allowing for versatile use in various wiring applications.
The operating temperature range for this model is from -55°C to 90°C, ensuring reliable performance under varying environmental conditions.
The terminal is constructed with brass contact material and is plated with tin, which provides reliable conductivity and corrosion resistance.
It is compatible with G Series and M Series connector housings, as well as CPC series connectors, facilitating flexible integration in diverse systems.
The length of this crimp terminal is 27.1 mm, which facilitates secure connections in electrical applications.
This terminal uses a crimp termination type, requiring suitable crimping tools for optimal installation results.
This terminal complies with EU ELV 2000/53/EC and EU RoHS 2011/65/EU standards for environmental and safety compliance.
Recommended tools for crimping this terminal include stock numbers 459-6252 with die set 452-6679 for 1.5 - 2.5 mm² contacts, and stock number 849-114 with die set 372-440 for other contacts.
Yes, this male crimp terminal is suitable for a wide range of industrial, electronic, and power connector applications where dependable electrical connections are critical.
The minimum wire size for this terminal is 0.1 mm², which corresponds to the 26 AWG specification.
The maximum wire size for this crimp terminal is 0.2 mm², corresponding to the 24 AWG specification.
