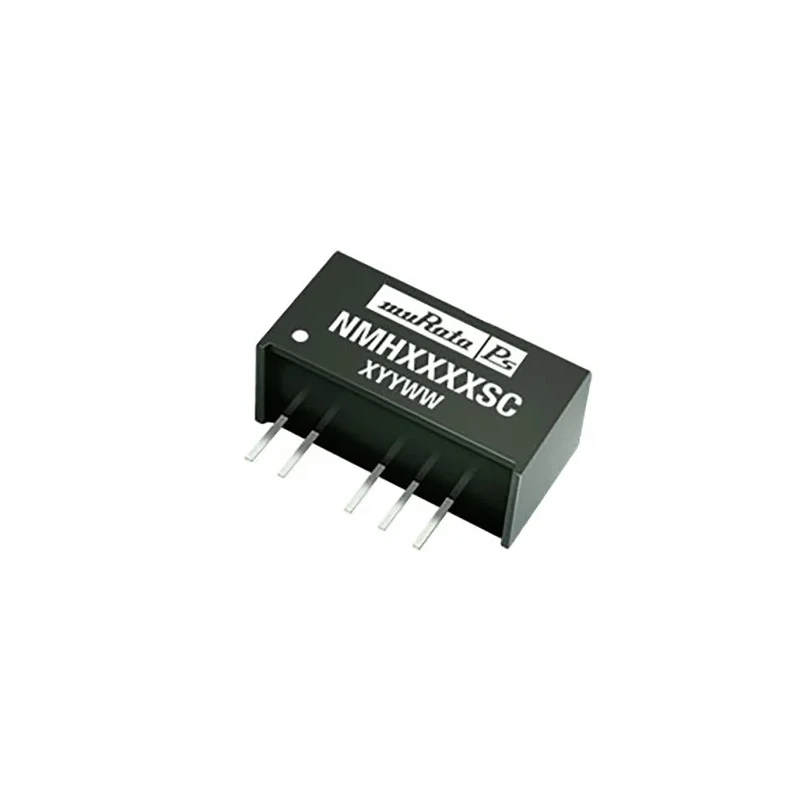

Murata Power Solutions NMH Series 2W SIP Dual Output Unregulated Isolated DC/DC Converter 12V DC Output, 833mA NMH2412SC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMH DC/DC Converter, 12V dc |
| Brand | Murata Power Solutions |
| Efficiency | 86% |
| Length | 19.5mm |
| Model | NMH2412SC |
| Depth | 10mm |
| Gross Weight | 2.76g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NMH |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 183000h |
| Number of outputs | 2 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 833mA |
| Output Voltage Adjustment Range | 21.6/26.4 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 83mA |
| Output Voltage 2 | -12V dc |
Key Features
- This converter supports a wide input voltage range of 21.6V to 26.4V DC.
- The through-hole mounting package type ensures easy PCB integration.
- It features 1kV DC input/output isolation for reliable operation.
- Rated efficiency of 86% optimizes power conversion with minimal losses.
- Designed for operation in temperatures ranging from -40°C to 85°C.

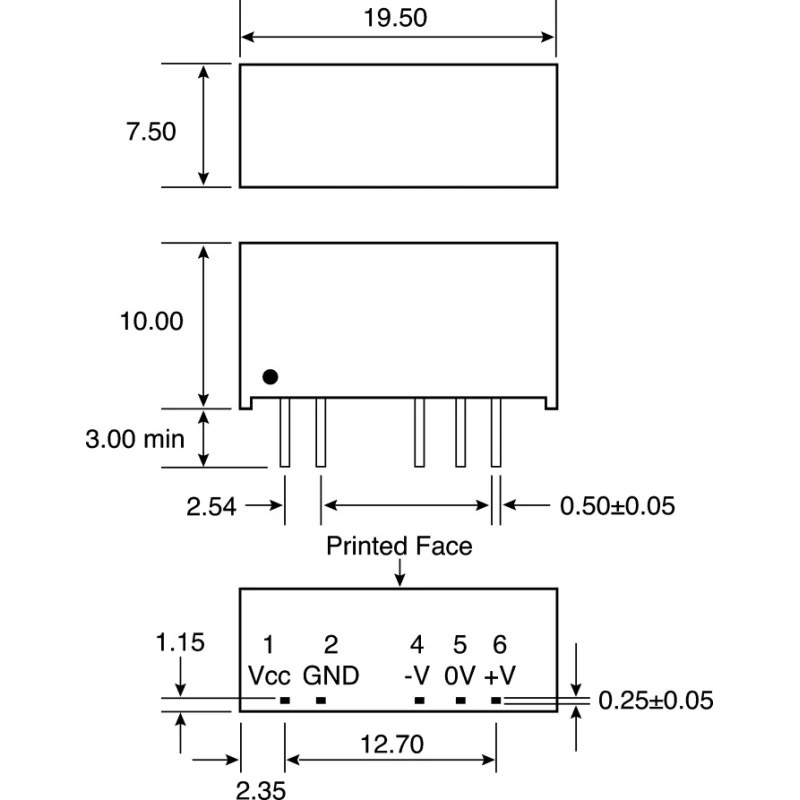

- Compact SIP7 plastic package with dimensions 19.5mm length, 10mm width, and 10mm depth.
- High MTBF of 183,000 hours ensures long-term reliability.
- Unregulated output simplifies power supply design for isolated applications.
Product Description
Murata Power Solutions NMH2412SC is a SIP dual output unregulated isolated DC/DC converter delivering 12V DC output voltage at 833mA current with a maximum output power of 2W. It operates within an input voltage range of 21.6V to 26.4V DC and supports through hole mounting for easy PCB integration.
This converter is optimized for high efficiency of 86% and provides 1kV DC isolation between input and output, enhancing safety in industrial and telecommunications environments.
Its compact SIP7 plastic package measures 19.5mm in length, 10mm width, and 10mm depth, weighing only 2.76 grams. The device delivers an MTBF of 183,000 hours, ensuring dependable operation under continuous use.
The operating temperature range spans from -40°C to 85°C, allowing use in harsh and varied temperature conditions without derating of output power. Low output ripple and noise of 200mV Pk-Pk contribute to stable voltage delivery, suitable for precision electronics and control systems.
Applications for the NMH2412SC model include industrial power supplies, control systems, instrumentation devices, and telecommunications equipment requiring isolated dual output DC/DC conversion.
This DC/DC converter supports a wide input voltage range of 21.6V to 26.4V DC. It provides dual output voltages of +12V and -12V DC unregulated outputs. The device features a SIP7 package with through hole mounting type.
Offers high efficiency of 86% under load conditions. Designed for operating temperatures from -40°C to 85°C. Low ripple and noise at 200mV peak-to-peak. Input/output isolation voltage is rated at 1kV DC. The unit has a maximum output power of 2W.
Compact dimensions and lightweight design at 2.76 grams total mass. MTBF rated at 183,000 hours per MIL-HDBK-217F at 25°C. Explore the full Murata Power Solutions range and other related DC/DC Converters and power supply units on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within an input voltage range of 21.6V to 26.4V DC.
It provides dual output voltages of +12V DC at 833mA and -12V DC at 83mA.
The converter features a rated efficiency of 86%, optimizing power conversion with minimal losses.
It has an isolation voltage rated at 1kV DC, enhancing safety in its applications.
The compact SIP7 package measures 19.5mm in length, 10mm in width, and 10mm in depth.
It is designed to operate in temperatures ranging from -40°C to 85°C.
This model has a maximum output power of 2W.
The gross weight of this DC/DC converter is 2.76 grams.
It supports through-hole mounting, ensuring easy PCB integration.
It features low output ripple and noise of 200mV peak-to-peak, contributing to stable voltage delivery.
This unit has a mean time between failures (MTBF) rated at 183,000 hours.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
