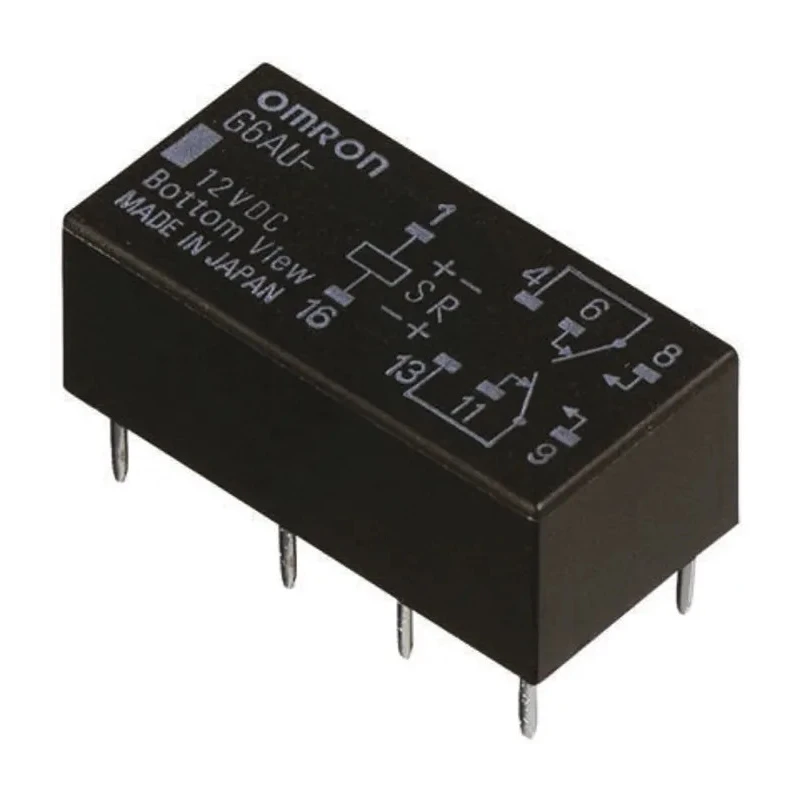

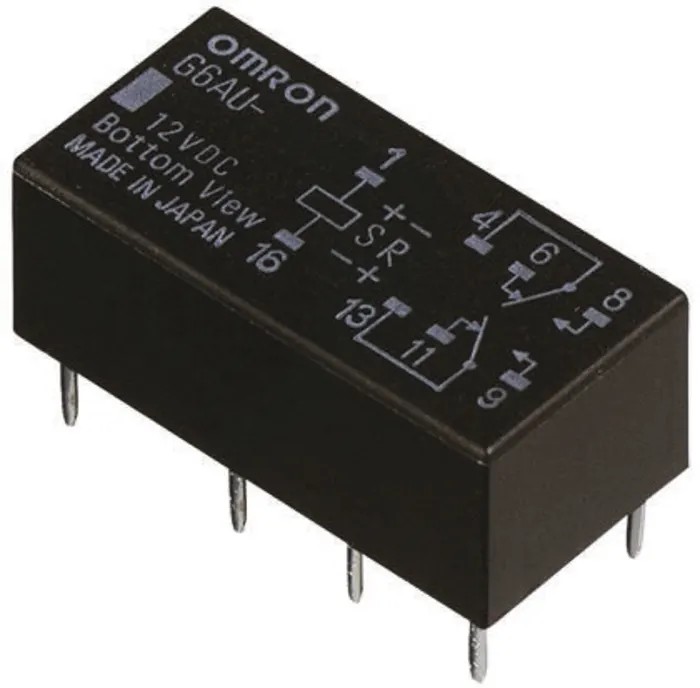

Omron Signal Relay PCB Mount DPDT 24V DC Coil 2A Switching Current G6AU-234P 24DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8.4mm |
| Length | 20.2mm |
| Model | G6AU-234P 24DC |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6A |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 5760Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 100mW |
| Switching Power | 60W |
| Omron PCB Mount Latching Relay, 24V dc Coil, 2A Switching Current, DPDTBrand | Omron |
Key Features
- Supports switching current up to 2A for reliable signal control.
- DPDT (Double Pole Double Throw) contact configuration offers versatile switching options.
- Operates on 24V DC coil voltage suitable for PCB mounting applications.
- Compact dimensions with length 20.2mm, width 10.1mm, and height 8.4mm.
- Gold-plated contacts ensure low resistance and excellent conductivity.
- Designed to withstand operating temperatures from -40°C to 70°C.
- Low coil power consumption of 100mW enhances energy efficiency.
- Through-hole terminal type facilitates easy PCB assembly.
Product Description
Omron G6AU-234P 24DC is a high-quality signal relay designed for PCB mounting with a 24V DC coil voltage and 2A switching current capacity. Its DPDT contact configuration provides dual circuits for versatile signal switching applications in industrial and telecommunications equipment.
This relay features gold-plated contacts that minimize contact resistance to 50mΩ, ensuring superior electrical conductivity and reliability. The fully sealed construction minimizes magnetic leakage and protects the relay from environmental factors, making it suitable for demanding applications.
The device operates efficiently with a coil resistance of 5760Ω and a coil power dissipation of only 100mW. It supports switching voltages up to 250V AC and 220V DC, accommodating various electrical environments.
With compact dimensions of 20.2mm length, 10.1mm width, and 8.4mm height, the relay is ideal for space-constrained PCB designs. It supports operating temperatures ranging from -40°C to 70°C. The through-hole terminal type enables easy soldering and stable PCB connections.
Supports switching current up to 2A for reliable signal control. DPDT contact configuration with dual poles and throws. Operates with a 24V DC coil voltage for PCB mounting. Compact size suitable for dense PCB layouts. Gold-plated contacts ensure consistent conductivity.
Wide operating temperature range from -40°C to 70°C. Low power consumption coil rated at 100mW. Through-hole terminal type for easy PCB integration. Fully sealed design reduces magnetic leakage. Compliance with RoHS environmental standards.
This Omron G6AU-234P 24DC signal relay is widely used in industrial automation, telecommunications, signal conditioning, and control systems. Its robust build quality and reliable switching capabilities make it suitable for both commercial and manufacturing sectors. Explore more Signal Relays and electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current capacity of this relay is up to 2A, allowing for reliable signal control in various applications.
It features a DPDT (Double Pole Double Throw) contact configuration, which provides versatile switching options for dual circuits.
This relay operates on a 24V DC coil voltage, making it suitable for PCB mounting applications.
The relay has compact dimensions of 20.2mm in length, 10.1mm in width, and 8.4mm in height, ideal for space-constrained PCB designs.
The contacts are gold-plated, which ensures low resistance and excellent electrical conductivity.
It operates efficiently within a temperature range of -40°C to 70°C, suitable for demanding environments.
The coil power consumption is rated at 100mW, enhancing energy efficiency during operation.
It features a through-hole terminal type, which facilitates easy soldering and stable connections on PCBs.
The relay supports switching voltages up to 250V AC and 220V DC, accommodating various electrical environments.
The contact resistance is minimized to 50mΩ, which contributes to its superior electrical performance.
This relay is compliant with RoHS environmental standards, ensuring it meets specific safety and environmental guidelines.
It is widely used in industrial automation, telecommunications, signal conditioning, and control systems due to its reliable switching capabilities.
