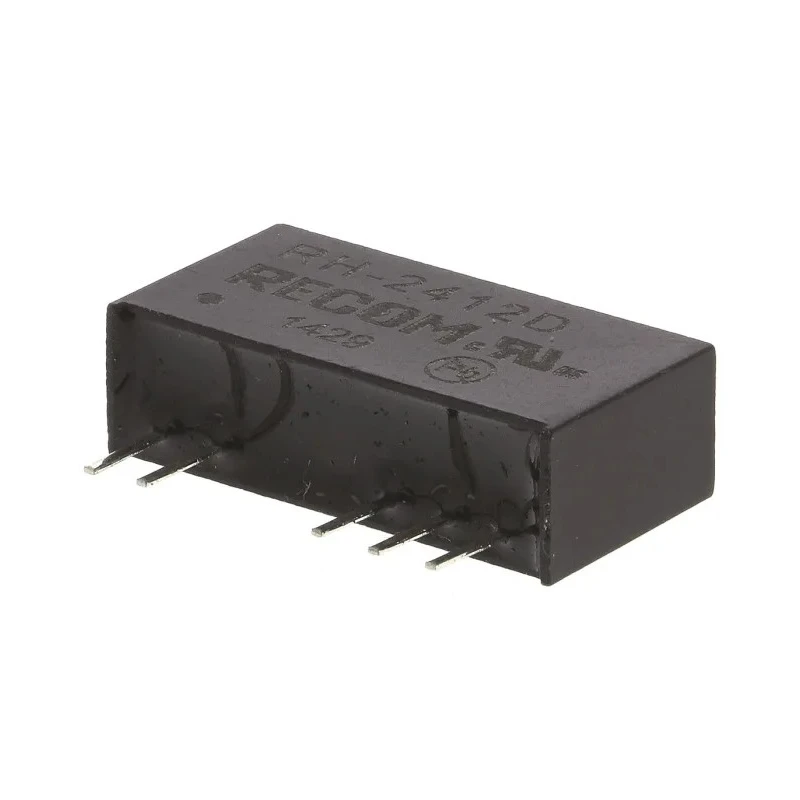

Recom RH Series 1W SIP Dual Output Medical Approved Isolated DC/DC Converter, 12V dc 42mA Output, 3kV DC Isolation RH-2412D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RH DC/DC Converter, 12V dc/ 42 mA, 5 |
| Brand | Recom |
| Efficiency | 84% |
| Length | 19.6mm |
| Model | RH-2412D |
| Depth | 10.2mm |
| Mount Type | Through Hole |
| Series | RH |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 145000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V |
| Minimum Input Voltage | 21.6V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 42mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 3kV dc |
| Output Voltage 2 | -12V dc |
Key Features
- This DC/DC converter provides dual outputs with unregulated isolated power.
- It supports a wide input voltage range including 5.5V and 21.6V DC inputs.
- The SIP7 package design ensures reliable through hole mounting.
- The product features high isolation voltage of 3kV DC suitable for medical equipment.
- Operating temperature range is from -40°C to 85°C for industrial robustness.
- Maximum output power is 1 watt with efficiency up to 84% at full load.
- Short circuit protection enhances safety and longevity of connected devices.
- The unit complies with medical safety standards EN-60601-1 and uses UL94V-0 rated materials.
Product Description
Recom RH-2412D is a 1W SIP Dual Output Medical Approved Isolated DC/DC Converter by Recom, designed for industrial and medical applications requiring high isolation and reliable power conversion.
This converter delivers dual output voltages of +12V DC and -12V DC at an output current of 42mA with a maximum output power rating of 1 watt. Its input voltage range accommodates minimum 5.5V and maximum 21.6V DC inputs, providing flexibility for various power supply configurations.

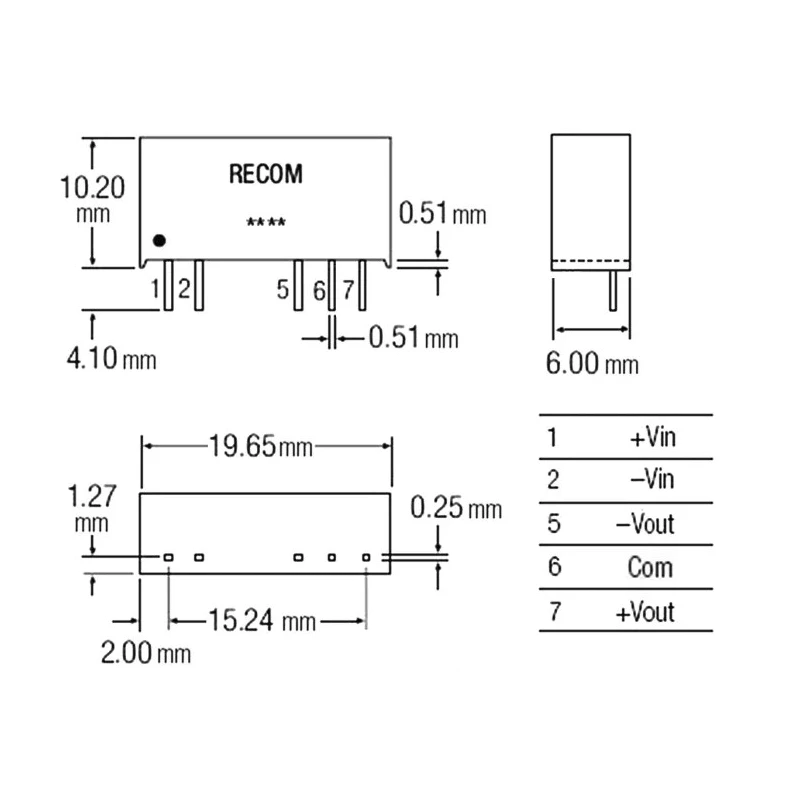

The device features exceptional isolation voltage up to 3kV DC offering safety and protection essential for medical devices and sensitive equipment. It is housed in a SIP7 through-hole package measuring 19.6mm in length and 10.2mm depth, suitable for PCB mounting in compact spaces.
Operating temperatures range from -40°C to +85°C, making it capable of performing reliably in demanding industrial environments. The converter efficiency reaches up to 84% at full load, ensuring energy-efficient operation while minimizing heat dissipation.
Additional technical highlights include short circuit protection and use of UL94V-0 compliant materials enhancing safety standards. This converter series is EN-60601-1 medical safety certified, making it ideal for medical instrumentation, IGBT drivers, and other critical power supply applications.
Dual unregulated isolated outputs suitable for medical and industrial use. Wide input voltage range with high isolation and short circuit protection. Compact SIP7 package with through-hole mounting. High efficiency of 84% reduces power loss and heat generation.
Extended operating temperature from -40°C to 85°C for robust applications. Meets EN-60601-1 medical safety approvals ensuring device compliance.
This Recom DC/DC Converter is widely applicable across industrial, laboratory, medical instrumentation, and embedded power systems requiring reliable and safe dual output power conversion solutions.
Explore the Recom DC/DC Converter category on EnvMart for advanced electronic components ensuring optimized power management and isolation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual outputs of +12V DC and -12V DC at an output current of 42mA, with a maximum output power rating of 1 watt.
The input voltage range for the RH-2412D is from 5.5V to 21.6V DC, allowing for flexibility in power supply configurations.
This converter features a high isolation voltage of 3kV DC, which is essential for medical and sensitive equipment applications.
The RH-2412D achieves an efficiency of up to 84% at full load, which helps minimize heat generation during operation.
This unit is housed in a SIP7 package measuring 19.6mm in length and 10.2mm in depth, suitable for PCB mounting in compact spaces.
The operating temperature range for the RH-2412D is from -40°C to +85°C, making it suitable for demanding industrial environments.
Yes, it includes short circuit protection, enhancing the safety and longevity of connected devices.
The RH-2412D uses UL94V-0 rated materials, which comply with safety standards for electrical components.
It complies with the EN-60601-1 medical safety standards, ensuring its suitability for medical instrumentation and applications.
This DC/DC converter provides two outputs, making it suitable for applications requiring dual output power.
This model supports through-hole mounting, which is ideal for PCB installations.
The RH-2412D has a mean time between failures (MTBF) rated at 145,000 hours, indicating its reliability in operation.
