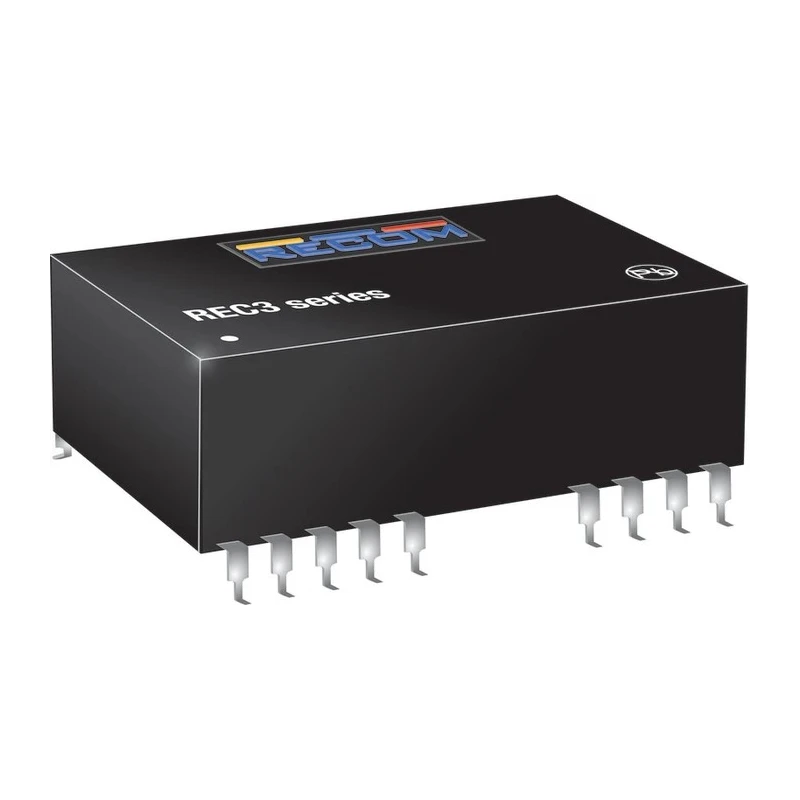

Recom DC/DC Converter 5V DC Output 600 mA 5V DC Input 4.5V Input 3 W Through Hole DIP Package REC3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom REC3 DC/DC Converter, 5V dc/ 600 mA, 5V dc I |
| Brand | Recom |
| Efficiency | 79% |
| Length | 32mm |
| Model | REC3 |
| Depth | 10.2mm |
| Gross Weight | 13g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | REC3 |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 186000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | UL, IEC, CSA |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 2kV ac |
Key Features
- Supports input voltages from 4.5V to 5V DC for flexible power sources.
- Offers isolation voltage of 2kV AC for enhanced safety and reduced interference.

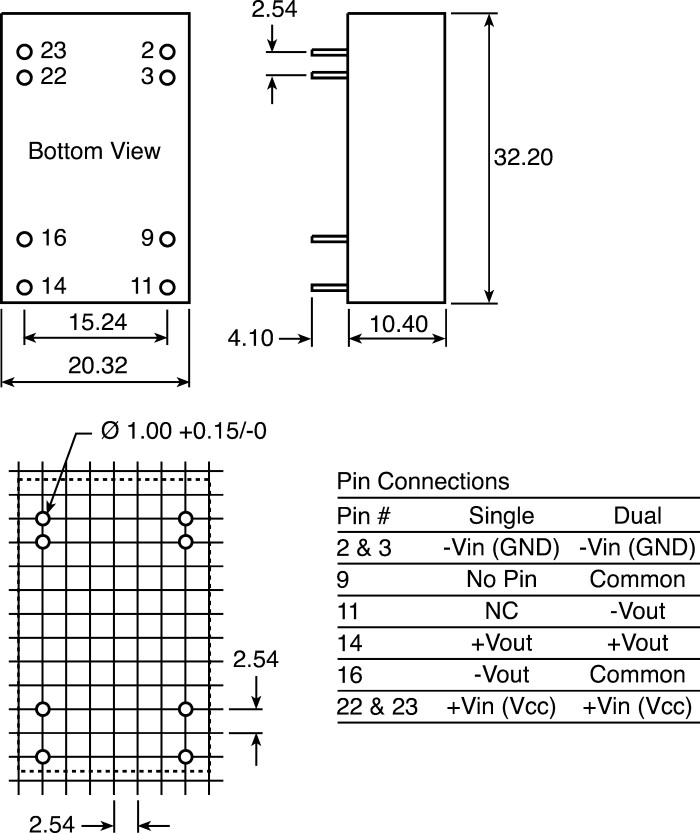

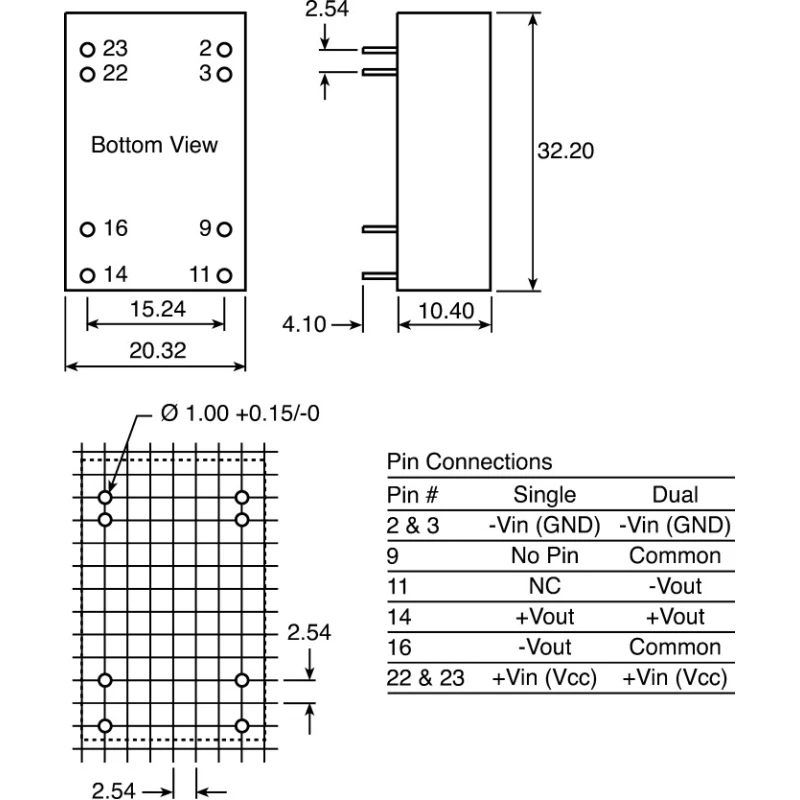

- Compact footprint with dimensions 32mm (L) x 10.2mm (W) x 10.2mm (D) suitable for PCB mounting.
- Wide operating temperature range from -40°C to +80°C for reliable performance in harsh environments.
- High efficiency of 79% ensures energy-saving operation with minimal heat generation.
- Features built-in short circuit protection and auto-restart for operational robustness.
- Nominal ripple and noise of 50mV peak-to-peak maintains output signal stability.
- Mean time between failures (MTBF) is 186,000 hours for extended service life.
Product Description

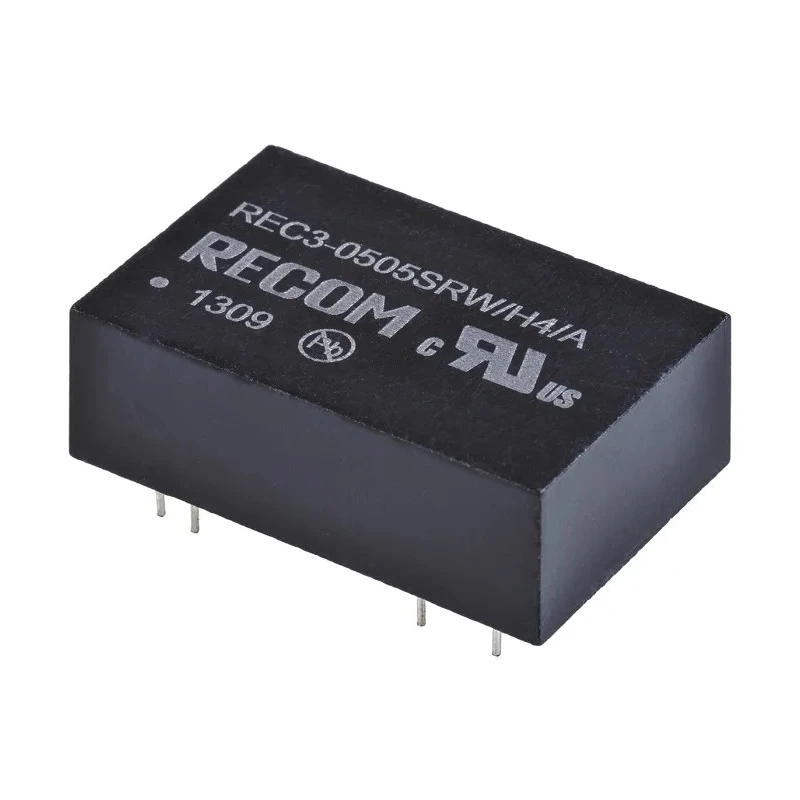

Recom REC3 DC/DC Converter model REC3-0505SRW/H4/A is a high performance power supply module designed to convert DC voltage levels efficiently. It provides a regulated 5V DC output at 600mA current with a maximum output power of 3W, making it suitable for a variety of electronic applications. The device operates with an input voltage ranging between 4.5V to 5V DC, and includes a robust 2kV AC isolation barrier between input and output to prevent power surges and ensure user safety.
Housed in a miniature through-hole DIP package with dimensions 32mm length, 10.2mm width, and 10.2mm depth, this converter occupies minimal PCB space, facilitating compact electronic designs. It operates reliably over a broad temperature range of -40°C to +80°C, ideal for demanding industrial, automotive, and medical applications.
The unit achieves a high efficiency of 79% alongside low output ripple of 50mV peak-to-peak, delivering clean power with minimal interference. Integrated features include continuous short-circuit protection with automatic restart, enhancing operational safety without requiring manual resets. The converter's high MTBF of 186,000 hours ensures long term reliability under continuous operation.
This DC/DC converter supports natural convection cooling, eliminating the need for additional fans and simplifying system integration. It conforms to key international safety standards UL, IEC, and CSA, ensuring compliance in regulated environments.

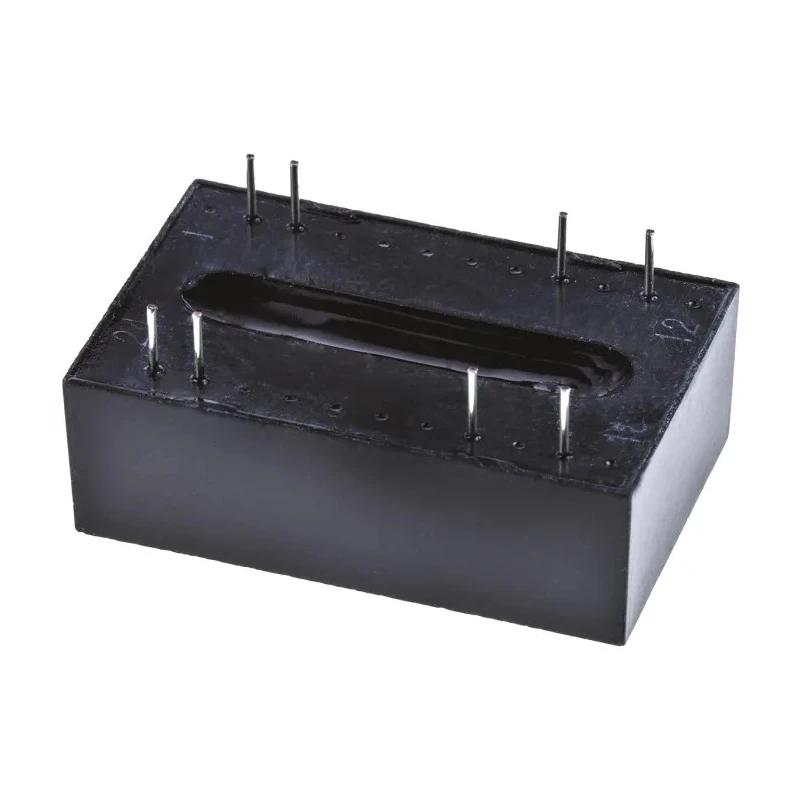

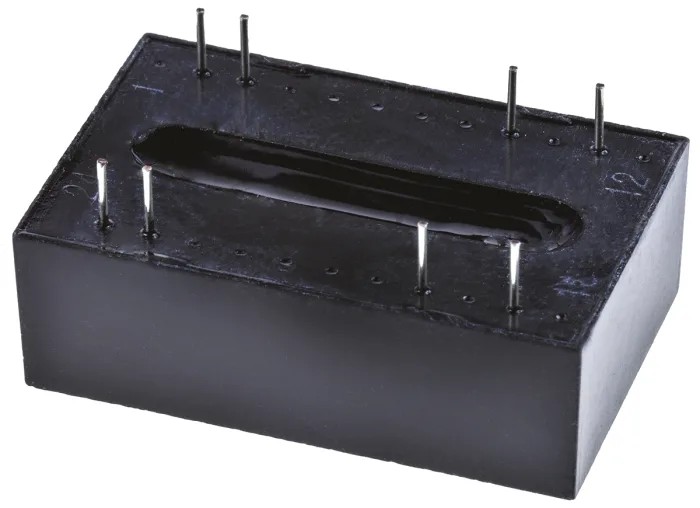

Supports input voltage range of 4.5V to 5V DC. Provides 5V DC output voltage at 600mA current capacity. Maximum output power rating of 3W. 2kV AC isolation for safe operation and equipment protection. 24-pin DIP through-hole package for ease of assembly.
Wide ambient operating temperature range from -40°C to 80°C. High efficiency of 79% minimizes energy loss. Ripple and noise limited to 50mV peak-to-peak. Continuous short-circuit and overload protection with auto-restart.
Certified to UL, IEC, and CSA safety standards.
This converter is widely applicable in industrial automation, medical instrumentation, telecommunications, and other domains requiring stable isolated DC outputs. Explore EnvMart's DC/DC Converter category for a broad range of power supply components by leading manufacturers including Recom.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is between 4.5V and 5V DC.
The maximum output power of this converter is 3W.
It provides an output current of 600mA.
This model features an isolation voltage of 2kV AC.
The dimensions of the DIP package are 32mm in length, 10.2mm in width, and 10.2mm in depth.
The efficiency of this converter is rated at 79%.
It operates reliably over a temperature range from -40°C to +80°C.
Yes, it includes continuous short-circuit protection and automatic restart functionality.
The ripple and noise for the output is limited to 50mV peak-to-peak.
This converter is certified to UL, IEC, and CSA safety standards.
This model has one output.
The MTBF for this converter is 186,000 hours.
