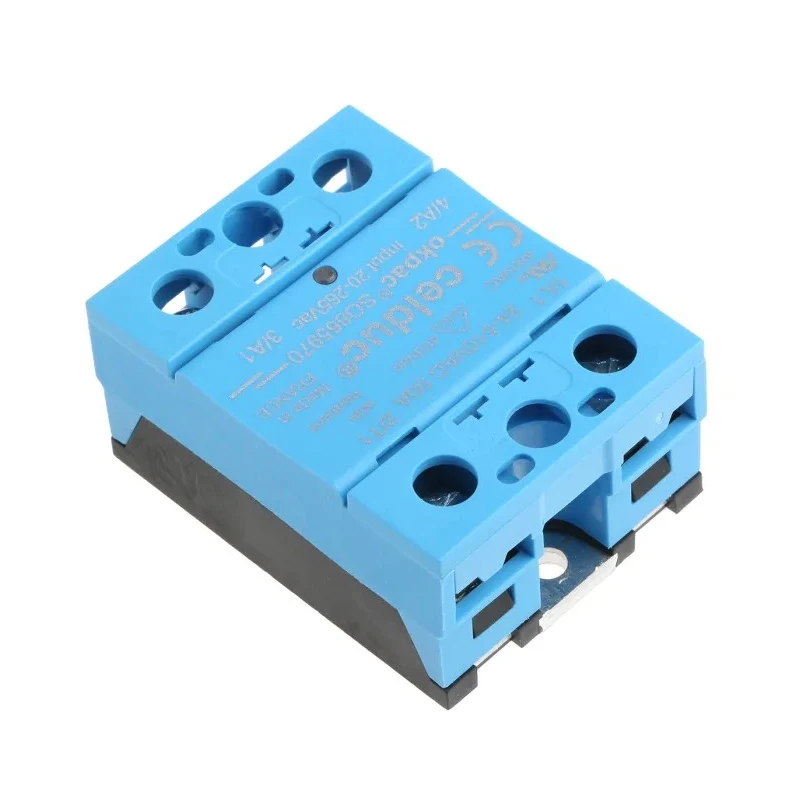

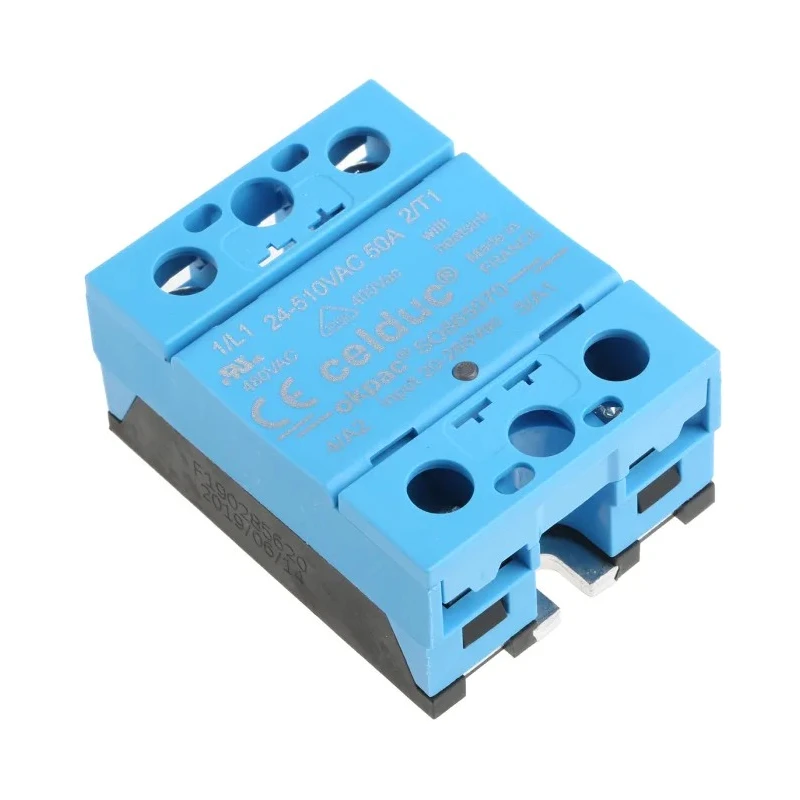

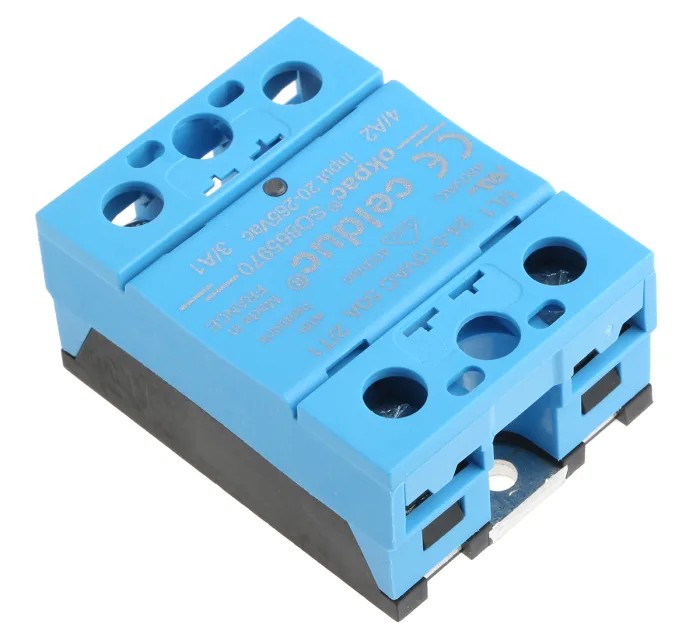

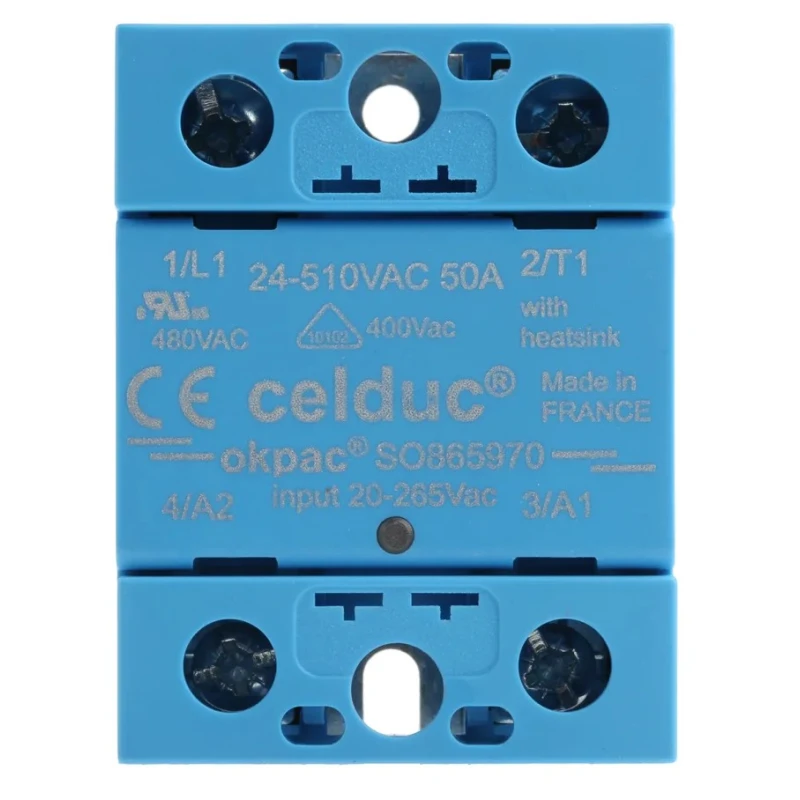

Celduc SO8 Series Solid State Relay, 60 A Load, DIN Rail Mount, 510 Vrms Load, 265V Control SO865970
Specifications
| Country of Origin | France |
|---|---|
| Brand | Celduc |
| Height | 30mm |
| Length | 58.5mm |
| Model | SO865970 |
| IP Rating | IP20 |
| Width | 44.8mm |
| Mount Type | DIN Rail |
| Output type | Triac |
| Series | SO8 |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 60A |
| Standards/Approvals | RoHS, UKCA, VDE, CE, CSA, cURus, EAC |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 20V ac/dc |
| Maximum Control Voltage | 265V |
| Off State Leakage Current | 1mA |
| On State Resistance | 16mΩ |
| Wide control range | 3 → 32 Vdc with regulated control current |
Key Features
- Single-phase solid state relay with zero cross switching function.
- Wide control voltage range of 20 V AC/DC to 265 V for flexible operation.
- Equipped with screw terminal type ensuring secure connection.
- High reliability and immunity with integrated voltage protections (transil and VDR).
- Output type is triac suitable for most loads requiring synchronous switching.
- Safe operating temperature range from -40°C to 100°C for industrial environments.
- Low off-state leakage current of 1 mA enhances energy efficiency.
- Certified to RoHS, UKCA, VDE, CE, CSA, cURus, and EAC standards.
Product Description
Celduc SO865970 SO8 Series Solid State Relay offers a robust solution for industrial and automation applications requiring high load capacity and reliable switching.
This single-phase relay supports a maximum load current of 60 A and a load voltage up to 510 Vrms. The DIN rail mounting type allows for easy installation within electrical panels and control systems.
The relay operates on a broad control voltage range from 20 V AC/DC up to 265 V, allowing compatibility with various control systems. It features zero cross switching for reduced electrical noise and extended load life.
The device includes built-in voltage protections at input and output stages to enhance interference immunity and ensure stable operation in harsh environments. Compact dimensions (58.5 mm length x 44.8 mm width x 30 mm height) make it suitable for space-constrained installations. Screw terminals provide secure electrical connections.
Its low off-state leakage current of 1 mA contributes to operational efficiency. Designed to withstand ambient temperatures from -40°C to 100°C, this relay suits a wide range of industrial, manufacturing, and HVAC control scenarios.
The product complies with international standards including RoHS, UKCA, VDE, CE, CSA, cURus, and EAC, guaranteeing quality and safety compliance. Single-phase solid state relay with zero cross switching function. Wide control voltage range of 20 V AC/DC to 265 V for flexible operation.
Equipped with screw terminal type ensuring secure connection. Compact dimensions: 58.5 mm length, 44.8 mm width, and 30 mm height. High reliability and immunity with integrated voltage protections (transil and VDR). Output type is triac suitable for most loads requiring synchronous switching.
Safe operating temperature range from -40°C to 100°C for industrial environments. Low off-state leakage current of 1 mA enhances energy efficiency. Certified to RoHS, UKCA, VDE, CE, CSA, cURus, and EAC standards. Manufactured in France, ensuring quality and compliance.
Celduc Solid State Relays are ideal for use in electrical panels, industrial automation, HVAC controls, manufacturing processes, and other environments requiring silent, reliable switching of AC loads without mechanical wear.
Explore EnvMart's comprehensive range of electrical relays and solid state devices for your industrial and automation control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 60 A.
It operates within a control voltage range of 20 V AC/DC to 265 V.
This unit is designed for DIN rail mounting, allowing for easy installation in electrical panels.
The output type of this relay is a triac, suitable for most loads requiring synchronous switching.
The dimensions of this model are 58.5 mm in length, 44.8 mm in width, and 30 mm in height.
It can operate safely within a temperature range of -40°C to 100°C.
The off-state leakage current is 1 mA, which contributes to energy efficiency.
This relay is certified to RoHS, UKCA, VDE, CE, CSA, cURus, and EAC standards.
It is equipped with screw terminals, ensuring secure electrical connections.
The minimum load voltage for this relay is 24 V AC.
This model features zero cross switching, which helps reduce electrical noise and extend load life.
The on-state resistance is 16 mΩ, contributing to its efficient operation.
